Quick Details
-
Brand Name:
-
TESTO
-
Model Number:
-
350
-
Operating temperature:
-
-5 to +45 °C
-
Weight:
-
4800 g
-
Size:
-
330 x 128 x 438 mm
-
Product-/housing material:
-
ABS
-
Product colour:
-
Black
-
Protection class:
-
IP40
Quick Details
-
Type:
-
detector
-
Warranty:
-
1 year
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
TESTO
-
Model Number:
-
350
-
Operating temperature:
-
-5 to +45 °C
-
Weight:
-
4800 g
-
Size:
-
330 x 128 x 438 mm
-
Product-/housing material:
-
ABS
-
Product colour:
-
Black
-
Protection class:
-
IP40
Product Description

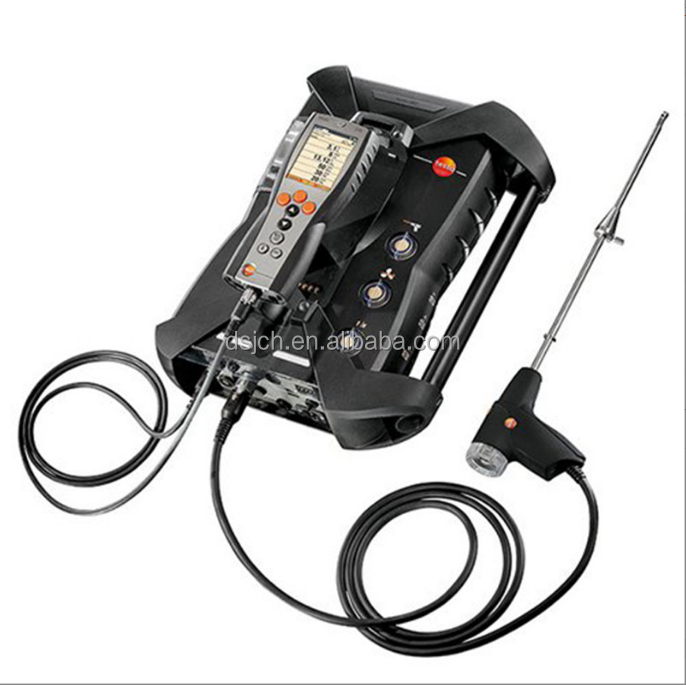

Testo 350 - Analysis Box for exhaust gas analysis systems
Product Description
Ideal for professional flue gas analysis and industrial emissions measurement on industrial engines, burners, gas turbines and in thermal processes: the testo 350 flue gas analyzer performs a variety of measuring and analysis tasks, impresses over the long term thanks to its heavy-duty industrial design and is also suitable for complex data acquisition.
Ideal for professional flue gas analysis and industrial emissions measurement on industrial engines, burners, gas turbines and in thermal processes: the testo 350 flue gas analyzer performs a variety of measuring and analysis tasks, impresses over the long term thanks to its heavy-duty industrial design and is also suitable for complex data acquisition.
Increased measurement range for unlimited measurements even when gas concentrations are higher Easy-to-change gas sensors and easy access to wearing parts Sealed housing with built-in impact protection for use in harsh conditions Easy operation of the analyzer unit via Control Unit or easyEmission software (both products available separately) 。The testo 350 is a rugged, easy-to-use exhaust gas analyzer designed to meet the highest demands when it comes to carrying out precise industrial emission measurements and providing proper data administration. The Analysis Box can be operated with up to 6 gas sensors, 5 of which are optional. This allows you to select freely from sensors for CO, NO, NO2, SO2, H2S, CxHy and CO2.
|
Protection class
|
IP40
|
|
|
Connectable probes
|
1 x combustion air temperature probe; 1 x flue gas probe; 1 x temperature probe; 1 x differential pressure
|
|
|
Product colour
|
Black
|
|
|
Battery type
|
lithium batteries
|
|
|
Battery life
|
5 h
|
|
|
Power supply
|
AC mains unit 100V to 240V (50 to 60 Hz)
|
|
|
DC electric tension input
|
11V to 40V
|
|
|
Pump flow
|
1 l/min. with through-flow monitoring
|
|
|
Hose length
|
16.2 m (corresponds to 5 probe hose extensions)
|
|
|
Max. pos. press./flue gas
|
0.725 psi / 50 mbar
|
|
|
Max. neg. press./flue gas
|
-4,351 psi / -300 mbar
|
|
|
Max. dust load
|
20 g/m³ dust in flue gas
|
|
|
Dewpoint calculation
|
0 °Ctd; 99 °Ctd
|
|
|
Max. humidity load
|
70 °C dewpoint temperature
|
|
|
Trigger input
|
Voltage 5 to 12 Volt (rising or trailing edge) pulse width > 1 sec load: 5 V/max, 5 mA, 12 V/max. 40 mA
|
|
|
Maximum
|
250,000 readings
|
|
|
Interface
|
data bus; Bluetooth®; USB; IR/IRDA interface; Mains connection; trigger input; Differential Pressure; probe input/ probe inputs;
DC-voltage input; dilution gas inlet for measurement range extension |
|
|
Storage temperature
|
-4.0° to 122.0 °F / -20 to +50 °C
|
|
|
Flue gas COlow (with H₂-compensation)
|
|
|
|
Measuring range
|
0 to 500 ppm
|
|
|
Accuracy
|
±5 % of mv (+40 to +500 ppm)
±2 ppm (0 to +39.9 ppm) |
|
|
Resolution
|
0.1 ppm (0 to +500 ppm)
|
|
|
Reaction time t₉₀
|
40 s
|
|
Specification
Application Scenes
Petroleum, chemical, pharmaceutical, environmental protection, gas distribution, flue gas analysis, air treatment and all other occasions that need to detect and analyze gas concentration.
