Quick Details
-
Warranty:
-
1Years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GP
-
Model Number:
-
73ZYT12-7208T
-
Torque:
-
Up to 570mN.m
-
Model No.:
-
78ZYT12-7715
-
Magnet:
-
Permanent magnet
-
Bearing:
-
Ball/Sleeve
-
Insulation Class:
-
Class "B" or "F"
-
Shaft OD:
-
8~12mm
-
Max Effeciency:
-
70% ~85%
-
Working Temperature:
-
-20~40℃
-
Storeage Temperature:
-
-20~70℃
-
Life time:
-
50000 hours (L10) at 40℃ room
-
Application:
-
Fan, Home applicance, Electric Bicycle, Boat, Car
Quick Details
-
Speed(RPM):
-
Up to 30000rpm
-
Continuous Current(A):
-
1~25A
-
Efficiency:
-
IE 2
-
Warranty:
-
1Years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GP
-
Model Number:
-
73ZYT12-7208T
-
Torque:
-
Up to 570mN.m
-
Model No.:
-
78ZYT12-7715
-
Magnet:
-
Permanent magnet
-
Bearing:
-
Ball/Sleeve
-
Insulation Class:
-
Class "B" or "F"
-
Shaft OD:
-
8~12mm
-
Max Effeciency:
-
70% ~85%
-
Working Temperature:
-
-20~40℃
-
Storeage Temperature:
-
-20~70℃
-
Life time:
-
50000 hours (L10) at 40℃ room
-
Application:
-
Fan, Home applicance, Electric Bicycle, Boat, Car
High Quality 350W 24V 48V Dc Scooter Motor For Electric Car With Speed Controller
| Diameter | Up to 150 (customized) |
| Voltage | 3v 5v 6v 9v 12v 24v 36v 48v 96v 110v to 230v (customized) |
| Speed Range | Up to 8000rpm (customized) |
| Insulation Class | Class "B" or "F" (customized) |
| Type of Production | IP55 (customized) |
| Bearing | Ball or Sleeve (customized) |
| Shaft OD | 8~12mm (customized) |
| Life Time | 50,000 hours (customized) |
Datasheet Download

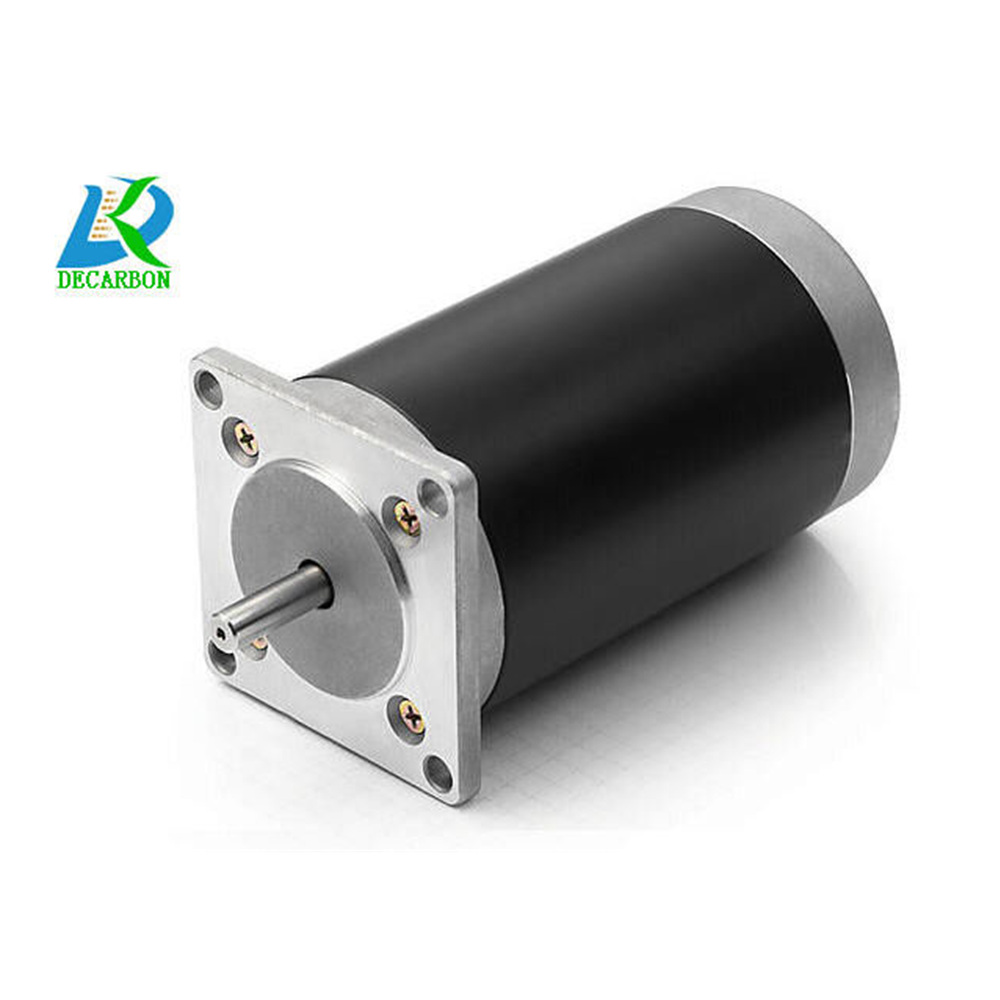

| Product Name |
PMDC Motor |
| Model No. | 73ZYT12-7208T |
| Voltage | 6~36VDC |
| Speed Range | 2000~8000rpm |
| Output Watt | 30~300w |
| Insulation Class | Class "B" or "F" |
| Shaft OD | 8~12mm |
| Bearing | Ball / Sleeve |
| Life Time |
50000 hours |
|
Specification |
||||||
|
Item Code: 73ZYT12-7208T |
||||||
|
Rated
|
Current(A) |
Input
|
Speed
|
Torque (mN.m) |
Out Power(W) |
Effiviency |
|
12 |
13.70 |
165.20 |
3438 |
325 |
117 |
65% |
| Outline Drawing |
|
|
|
|
|
Customized Motor Solutions GP Motor specialize in design, custom and manufacture electric motors,including ECM Motor , PMDC Motor , Brushless Motor , Gear Motor , Servo Motor , AC Moto r as well as Motor Parts .All of them can be fully and easily customized (see some of the many customization options listed below). We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now! |
