Quick Details
-
Application:
-
Grinding Mill Machine
-
Raw material:
-
Wheat Maize Corn Soya Grains
-
Function:
-
Multifuction
-
Final products:
-
10-100 Mesh
-
Processing:
-
Full-automatic Milling Machine
-
Feature:
-
Easy Operation
-
Advantage:
-
Low Consumption
-
Spare parts:
-
Screen
-
Processing type:
-
Crush Grain
Quick Details
-
Place of Origin:
-
Henan, China
-
Weight:
-
300 KG
-
Product name:
-
Multifunctional Grain Grinder
-
Application:
-
Grinding Mill Machine
-
Raw material:
-
Wheat Maize Corn Soya Grains
-
Function:
-
Multifuction
-
Final products:
-
10-100 Mesh
-
Processing:
-
Full-automatic Milling Machine
-
Feature:
-
Easy Operation
-
Advantage:
-
Low Consumption
-
Spare parts:
-
Screen
-
Processing type:
-
Crush Grain
Application of corn mill grain grinder machine :
1. coarse grains and fodder, such as corn, soybean, sorghum, dried sweet potato slices and soybean cake
2. chemical industry, paper - making and medical industry
3. fresh fruit, fresh sweet potato and soaked soybeans, which contain a great deal of moisture content.

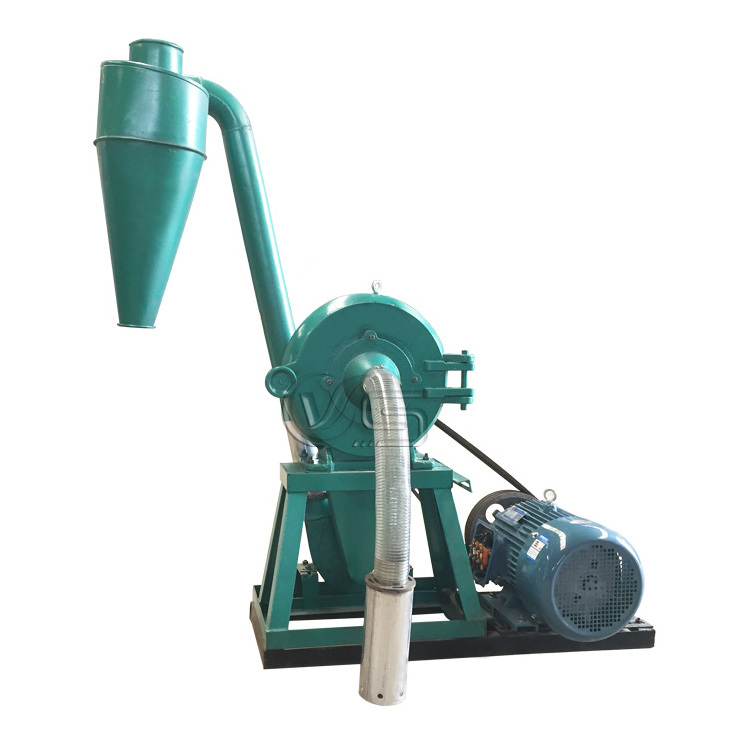

This disc mill grinding machine is designed compactly with a wonderful appearance: the disc mill grinding machine is small in size and light in weight, reliable in operation and easy in maintenance. At present, four types are available, ie. Models FFC- 45A, FFC-37. FFC-23 and FFC-15.
Technical parameters of corn mill grain grinder machine
|
Model |
9FC- 45 |
9FC-37 |
9FC-19 |
9FC-15 |
|
capacity |
450-1600KG/H |
360-1350KG/H |
40-200KG/H |
30-120KG/H |
|
Motor power |
1 1 KW |
7.5-11KW |
1.5KW |
1.1KW |
|
Net weight |
About 300KG |
About 226KG |
36KG |
17KG |
|
Dimension |
1350*850*1020mm |
1100x400x1270mm |
700x350x550mm |
580x260x260mm |
|
Flour mesh |
<100 |
<100 |
<100 |
<100 |
|
Main shaft speed R/Min |
3 0 00 |
3600 |
6600 |
9000 |
Stable performance
self-priming crusher has small size, low power and stable performance. The host can be made of cast steel, 304 or 316 stainless steel, and there are different body materials for your choice.
Longer life
The fixed gear plate can be replaced by cast steel material to make the body more wear-resistant and prolong its service life
Excellent productivity
Double flat teeth speed up the discharge speed, high air cooling efficiency, less time-consuming, high crushing fineness, and outstanding output
Uniform particles
The net width of the screen is 88mm, the particle size is uniform, and the crushing effect is good Screen diameter 560mm
Running smoothly
The oil tank type bearing chamber is suitable for long-term work for more than 12 hours to prevent the temperature of the bearing from rising, and the operation is stable without reducing the output
Wide range of applications
Chemicals, food, paper, Chinese medicinal materials, feed processing plants, farms
Package
1.Machines will be packed in standard and quantities boxes ,the production will have a safe and complete journey from our factory to your place.
2.Packaging details standard export wooden case or in container.
Shipping
1,we will serve your shipping method about ocean transport ,air lift ,freighty and so on.
2,The delivery time is usually 7-15 working days upon receipt of your payment.
