Quick Details
-
Length:
-
From 330mm to 3 m
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Tiwin ,TBI
-
Guarantee:
-
1 year
-
ACCURACY:
-
C3-7
-
Axial clearance and preload code:
-
P0-P5
-
Flange type:
-
Round flange,double cutting H type,no flange
-
Product performance:
-
Long life and low noise
-
Product name:
-
Ball Screw
-
Application:
-
Cnc Machining Parts
-
Nut type:
-
Single Nut$ Double Nut
-
Structure:
-
Ball Screw + Nut + Steel Ball
Quick Details
-
Weight (KG):
-
3
-
Marketing Type:
-
Hot Product 2021
-
Material:
-
GCr15
-
Length:
-
From 330mm to 3 m
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Tiwin ,TBI
-
Guarantee:
-
1 year
-
ACCURACY:
-
C3-7
-
Axial clearance and preload code:
-
P0-P5
-
Flange type:
-
Round flange,double cutting H type,no flange
-
Product performance:
-
Long life and low noise
-
Product name:
-
Ball Screw
-
Application:
-
Cnc Machining Parts
-
Nut type:
-
Single Nut$ Double Nut
-
Structure:
-
Ball Screw + Nut + Steel Ball

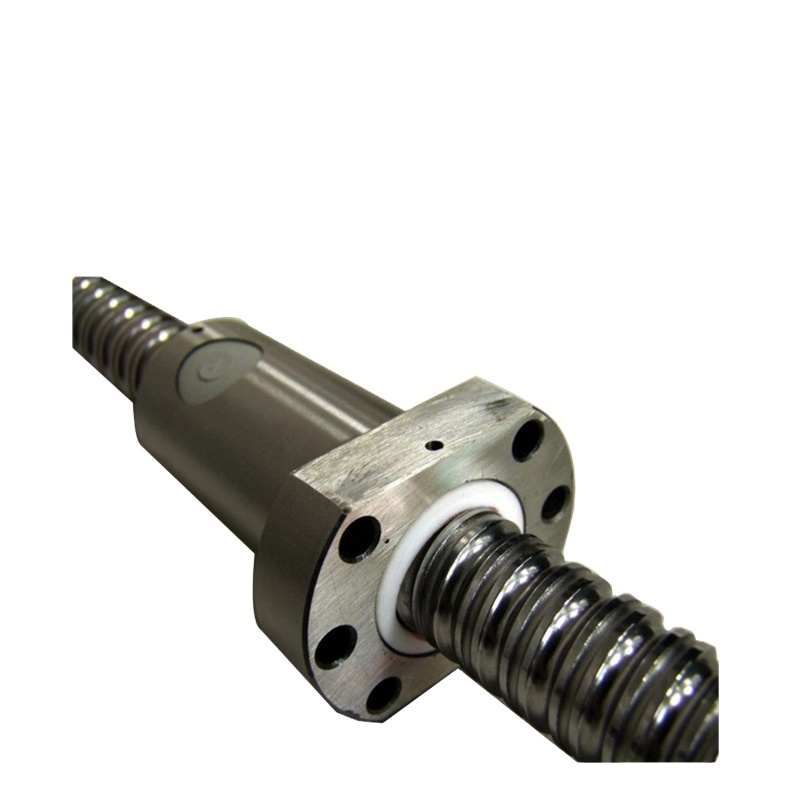

Product Description
|
Product Type
|
Ball screw
|
|
Structure
|
Screw shaft, steel ball, ball nut
|
|
Type
|
SFS, DFS, SFU, DFU, SFV, DFV, SFT, DFT, SFI, DFI etc
|
|
Features
|
1.high reliability
2.smooth operation
3.high rigidity and preload
4.circulation method
5.high durability
|
|
Circulation Type and Characteristic
|
1.Internal circulation type:
Delicated diameter of screw takes only little space; Applicable to those with smaller lead/the outside diameter of the screw
2.External circulation type:
Economy; Applicable to larger lead and diameter; Applicable for high loading purpose
3.End-caps circulation type:
Suitable for high speed positioning
|
|
Delivery Time
|
10-30 days, according to the size and quantity
|
Specification
SFK type ball nut ball screw dimensions:
1. Nominal Model
S: single nut; D: double nut; O: off set double nut
F: with flange; C: without flange
U Nut Type: NI, NU, H, A, NH, Y, V, U, M, K type nut
2. Threading Direction
R: right: L: left
3. Nominal Diameter:
Unit mm
4. Lead:
Unit mm
5. Number of Turns (Turn-Row)
Turn: T:1; A: 1.5(or 1.7/1.8); B: 2.5/2.8; C: 3.5; D: 4.8; E: 5.8 ; ex:(2.5*2=B2)
6. Flange Type
N: not cutting S: single cutting D: double cutting
7. Product Code
G: ground F: rolled
8. Accuracy Grade
C0, C1, C2, C3, C5, C7, C10
9. Overall Length of Shaft: Unit mm
10. Axial Clearance and Preload Value
P0, P1, P2, P3, P4
11. Number of Nut (Leave blank if not nut is required)
EX:install two nuts on a shaft B2
12. Nut Surface Treatment
S: standard; B1: black oxidation; N1: hard chrome plating;
P: phosphating; N3: nickel plating; N4: raydent; N5: chrome plating
13. Shaft Surface Treatment
S: standard; B1: black oxidation; N1: hard chrome plating;
P: phosphating; N3: nickel plating; N4: raydent; N5: chrome plating
Details Images
Tianjin OuNaiDa ball screws' detail pictures
End processing type
