Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
7000*2400*2400 mm
-
Machine Weight:
-
10000 kg
-
Bucket capacity:
-
1.7CBM, 1.7cbm
-
Marketing Type:
-
New product 2023
-
Product name:
-
compact telescopic wheel loader
-
Engine model:
-
weichai engine
-
Rated Power:
-
102kw
-
Load capacity:
-
3000kg
-
Operating weight:
-
8700kg
-
Brand:
-
Mammut
-
Color:
-
as your options
-
dumping height:
-
7m
-
Attachments:
-
pallet forks etc
Quick Details
-
Engine Brand:
-
weichai/cummins
-
Power:
-
92 KW
-
Brand Name:
-
Mammut
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
7000*2400*2400 mm
-
Machine Weight:
-
10000 kg
-
Bucket capacity:
-
1.7CBM, 1.7cbm
-
Marketing Type:
-
New product 2023
-
Product name:
-
compact telescopic wheel loader
-
Engine model:
-
weichai engine
-
Rated Power:
-
102kw
-
Load capacity:
-
3000kg
-
Operating weight:
-
8700kg
-
Brand:
-
Mammut
-
Color:
-
as your options
-
dumping height:
-
7m
-
Attachments:
-
pallet forks etc

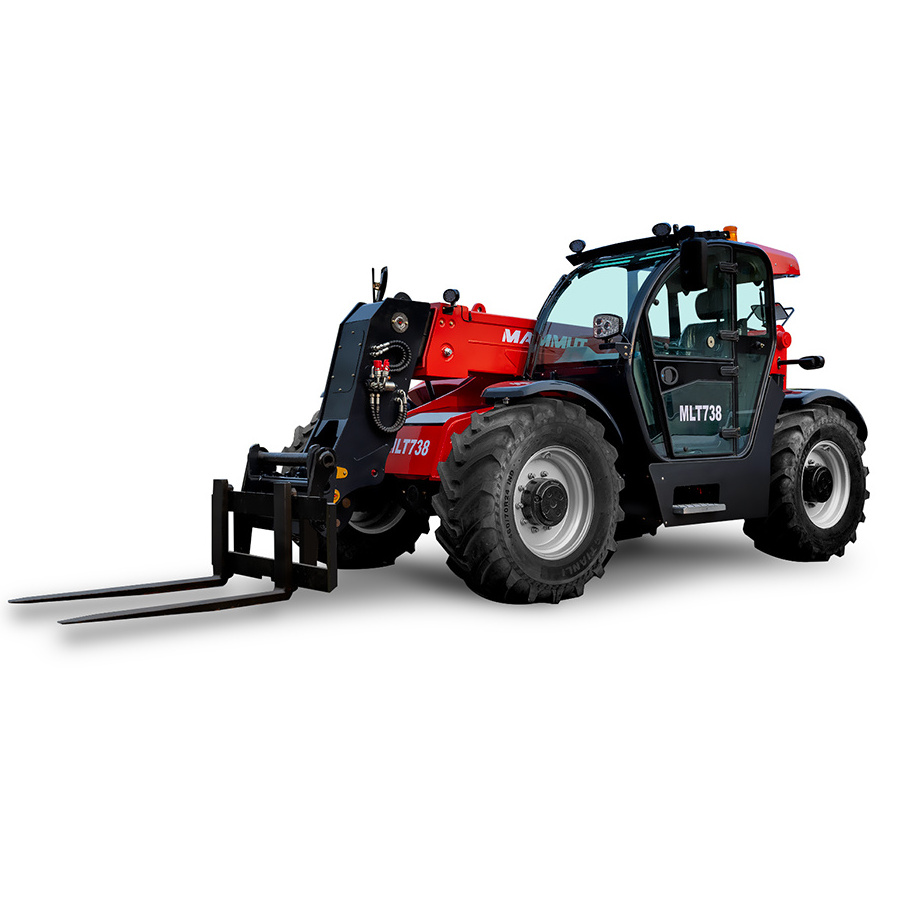

mammut telehandler
MLT738 is the latest MAMMUT agricultural version telehandler which features the highest operation simplicity, safety and
efficiency. The electronically controlled hydrostatic drive system and continuously variable drive technology achieve more stable and reliable operations. The intelligent independent cooling system features high energy-saving and efficiency.
* With compact short wheelbase and lateral engine arrangement, this machine features high handinessand flexibility.
* The integrated static-pressure stepless variable drive system realizes full speed range drive and stable driving.
* The four-wheel drive and multiple steering modes (including four-wheel, two-wheel, and crab steering modes) realize super-strong off-road capability and adapt to diversified working conditions.
* The frame leveling function equipped realizes powerful site adaptability and meets the needs of diversified working conditions.
* The inching control technology and special overload control system are applied to achieve high operation safety and reliability.
* The advanced human-machine interactivity, intelligent heat dissipation system, and dedusting control system embody high technologic sense and intelligence.
* This machine can be equipped with diversified attachments, including aerial platform, bucket, and bale clamp, to meet the users' individual needs.
efficiency. The electronically controlled hydrostatic drive system and continuously variable drive technology achieve more stable and reliable operations. The intelligent independent cooling system features high energy-saving and efficiency.
* With compact short wheelbase and lateral engine arrangement, this machine features high handinessand flexibility.
* The integrated static-pressure stepless variable drive system realizes full speed range drive and stable driving.
* The four-wheel drive and multiple steering modes (including four-wheel, two-wheel, and crab steering modes) realize super-strong off-road capability and adapt to diversified working conditions.
* The frame leveling function equipped realizes powerful site adaptability and meets the needs of diversified working conditions.
* The inching control technology and special overload control system are applied to achieve high operation safety and reliability.
* The advanced human-machine interactivity, intelligent heat dissipation system, and dedusting control system embody high technologic sense and intelligence.
* This machine can be equipped with diversified attachments, including aerial platform, bucket, and bale clamp, to meet the users' individual needs.
Products Description
Standard Configurations For MTL738&telescopic Wheel Loader
1. Perkins engine 92kw (stage 2) 2. BOSCH hydraulic system
3. Foot brake pedal
4. 1.7 cbm bucket
5. 26*12-12 tires
6. Electric joystick
7. Comfortable seat
8. Mini skid steer manual quick hitch
9. Safety roof
10. Digital adjustable dashboard
11. Automatic flameout
12. Led working lights
Optional Configurations For MTL738&telescopic Wheel Loader
1. Kubota Stage V or Epa 4 engine
2. Hydraulic quick hitch (Customized)
3. Grass or snow tires
4. All kinds of attachments
Many different attachments can be placed on the boom, allowing it to perform different tasks. For example, there is a bucket that a person can fit into, a fork or table that can be used to easily lift items, or a safety cage that is like the bucket but larger.
1. Perkins engine 92kw (stage 2) 2. BOSCH hydraulic system
3. Foot brake pedal
4. 1.7 cbm bucket
5. 26*12-12 tires
6. Electric joystick
7. Comfortable seat
8. Mini skid steer manual quick hitch
9. Safety roof
10. Digital adjustable dashboard
11. Automatic flameout
12. Led working lights
Optional Configurations For MTL738&telescopic Wheel Loader
1. Kubota Stage V or Epa 4 engine
2. Hydraulic quick hitch (Customized)
3. Grass or snow tires
4. All kinds of attachments
Advantage
A telehandler is a construction vehicle made to lift items and heavy weights, and it often is a hybrid of the crane and forklift in terms of abilities and size. The main feature of the telehandler is its boom, which is capable of equipping attachments for further uses. By using the right extension and lifting angle, an operator can double or triple a telehandler’s maximum lifting weight while remaining safe. Aside from its long arm, the most defining aspect of a telehandler is its boom.
The boom itself is able to pick up and carry items, but it can do much more than this, which makes this machine very versatile.
Many different attachments can be placed on the boom, allowing it to perform different tasks. For example, there is a bucket that a person can fit into, a fork or table that can be used to easily lift items, or a safety cage that is like the bucket but larger.
Product Specification
|
kgUnitDescription
|
Unit
|
MLT738
|
|
Gross weight
|
kg
|
MLT738
|
|
Engine power
|
kW
|
102
|
|
Rated load
|
kg
|
3500
|
|
Effective load at maximum forward reach
|
kg
|
635
|
|
Maximum lifting height
|
mm
|
13700
|
|
Maximum forward reach
|
mm
|
9600
|
|
Center distance of load
|
mm
|
600
|
|
Luffing angle
|
°
|
-4~73
|
|
Fork angle
|
°
|
90~18
|
|
Maximum traction force
|
kN
|
≥55
|
|
Gradeability
|
°
|
≥25
|
|
Maximum traveling speed
|
km/h
|
30
|
|
Turning radius
|
mm
|
≤4750
|
|
Braking distance
|
m
|
≤8
|
|
Overall length
|
mm
|
6300
|
|
Overall width
|
mm
|
2580
|
|
Overall height
|
mm
|
2740
|
|
Wheelbase
|
mm
|
2980
|
|
Wheel tread
|
mm
|
2600
|
|
Fork length
|
mm
|
1200
|
|
Bale clamp diameter
|
mm
|
800-1800
|
Mammut skid steer loader a multifunctional machine, has the following advantages:
Flexibility: Thanks to its unique design, skid steer loaders are ideal for maneuvering in tight spaces, with a tight turning
radius and the ability to navigate narrow haul aisles.
Versatility: Skid steer loaders can also be equipped with different tools such as buckets, forks, etc. to perform multiple tasks
to meet different needs.
Mobility: The skid steer loader is small in size, light in weight, powerful in power, flexible and convenient in operation, and
can be quickly transferred and arranged on the job site.
Efficiency: Due to its compact size, sensitive control system and convenient unloading method, the skid steer loader can quickly
complete various transportation and other handling tasks and improve work efficiency.
Flexibility: Thanks to its unique design, skid steer loaders are ideal for maneuvering in tight spaces, with a tight turning
radius and the ability to navigate narrow haul aisles.
Versatility: Skid steer loaders can also be equipped with different tools such as buckets, forks, etc. to perform multiple tasks
to meet different needs.
Mobility: The skid steer loader is small in size, light in weight, powerful in power, flexible and convenient in operation, and
can be quickly transferred and arranged on the job site.
Efficiency: Due to its compact size, sensitive control system and convenient unloading method, the skid steer loader can quickly
complete various transportation and other handling tasks and improve work efficiency.
