Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDCNC
-
Model Number:
-
Z5125
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
980x850x2300
-
Power (kW):
-
2.2
-
Weight (KG):
-
1200 KG
-
Marketing Type:
-
New Product 2024
-
Product name:
-

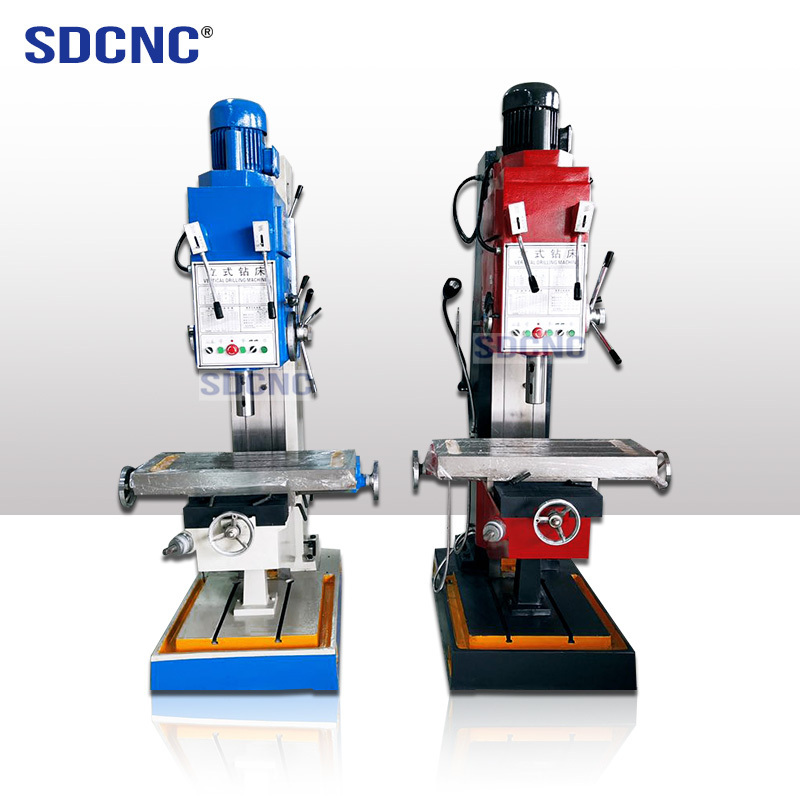

Z5125 taladro vertical borehole-drilling-machines-south-africa
-
Keyword:
-
Vertical Drilling Tapping Machine
-
Key word:
-
Vertical Hole Drilling Machine
-
Model:
-
Z5125
-
Color:
-
Coustomed
Quick Details
-
type:
-
Pillar Drilling Machine
-
Max. Drilling Dia. (mm):
-
25
-
Range of Spindle Speed(r.p.m):
-
50 - 2000 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDCNC
-
Model Number:
-
Z5125
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
980x850x2300
-
Power (kW):
-
2.2
-
Weight (KG):
-
1200 KG
-
Marketing Type:
-
New Product 2024
-
Product name:
-
Z5125 taladro vertical borehole-drilling-machines-south-africa
-
Keyword:
-
Vertical Drilling Tapping Machine
-
Key word:
-
Vertical Hole Drilling Machine
-
Model:
-
Z5125
-
Color:
-
Coustomed
Products Description
Product Paramenters
|
Specifications
|
Z5125
|
|
Max drilling dia
|
25mm
|
|
Max feed resistance
|
9000N
|
|
Max. spindle allowable torque
|
160N.m
|
|
Spindle taper
|
Morse No. 3
|
|
Distance from spindle axis to column guideway
|
280mm
|
|
Spindle travel
|
200mm
|
|
Spindle box travel
|
200mm
|
|
Spindle speed
|
50～2000r/min（9）
|
|
The amount of feed(mm/rev)
|
0.056-1.80mm/r （9）
|
|
Working table stroke
|
310mm
|
|
Working table surface size
|
400×550mm
|
|
Distance from spindle nose to table surface
|
710mm
|
|
Main motor power
|
2.2kw
|
|
Cooling pump flow
|
25L/min
|
|
Overall dimension
|
980*807*2302mm
|
|
N/W
|
1200kg
|
