Quick Details
-
Voltage:
-
220V/110V
-
Net weight:
-
9.5 kg
-
Gross weight:
-
14kg
-
Packing size (mm):
-
380x330x380mm
-
Package:
-
1 set / box
-
Custom processing:
-
Customizable Agency
-
Form of work:
-
Portable electric edge banding
-
Brand:
-
Jackbond
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jackbond
-
Weight (KG):
-
14 KG
-
Voltage:
-
220V/110V
-
Net weight:
-
9.5 kg
-
Gross weight:
-
14kg
-
Packing size (mm):
-
380x330x380mm
-
Package:
-
1 set / box
-
Custom processing:
-
Customizable Agency
-
Form of work:
-
Portable electric edge banding
-
Brand:
-
Jackbond

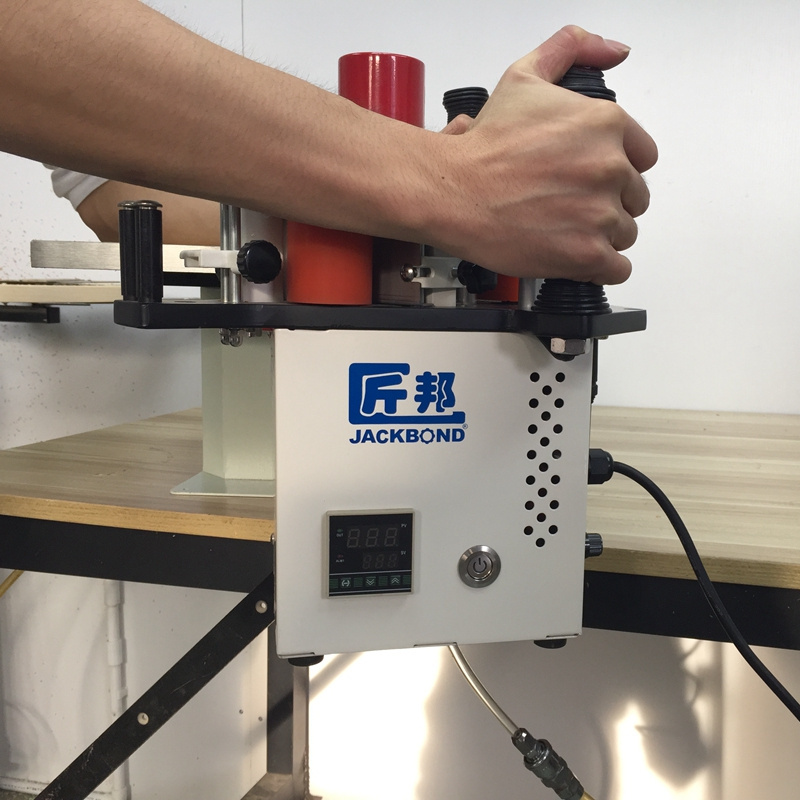

JBD80 is a portable edge banding machine using thermal-smelting glue. It uses PVC, ABS, melamine, wooden bands, which have been pre-cut into appropriated length, to band straight , curved and bevel edge. For small curved or straight board, the machines can be fixed on the console to execute edge banding operations easily. For large-area curved or straight board, user can hang the machine above the board to execute banding operations. This machine is compact, handy and flexible, easy to operate and provides perfect edge banding effect. It is an ideal choice for manufacturing and decoration work.
| Product name | JBD80 |
| Net Weight | 9.5kg |
| Size | 340 × 310 × 350MM |
| Total power | 765watt |
| Voltage | 220V/110V , 50~60HZ |
| Edge thickness | 0.3-3MM |
| Edge width | 10-45MM |
| Processing rate | 5meter/min |
| Temperature | 120-180 ℃ |
| Forms of glue | single-siged glue |
| Gross Weight | 14kg |
| Package Volume | 38 × 30 × 42CM |
Jackbond JBD80 contains accessories including: installation tools, power switch, fuse, trial rubber bag.
The portable edge banding machine can be placed on a small gantry for desktop wood edge sealing work. This operation is suitable for small wood edge sealing.
The following is the rendering of the edged wood board. The Jackbond edge banding machine is suitable for PVC edge banding, ABS edge banding, veneer edge banding, wood for NDF board, ecological board, particle board, wooden door, honeycomb board and other wooden boards.
The board can be fixed in place while the hand-held edge bander proceeds.It can also be used for small sized wooden boards while the machine is fixed onto a conveyor belt or table with stand. The process of edge banding is the same for normal sized loads.
