It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock
valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable
fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control
system.
- Product Details
- {{item.text}}
Quick Details
-
Productivity:
-
22M³/H
-
Place of Origin:
-
China
-
Brand Name:
-
Tewrex
-
Weight:
-
30500 kg
-
Dimension(L*W*H):
-
8220*8800*8900mm
-
Marketing Type:
-
New Product 2023
-
fuel:
-
diesel
-
Dimensions:
-
8220*8800*8900mm
-
Model:
-
HB52K
-
Rated working pressure:
-
35MPa
-
Min. height of opening placing boom:
-
9100mm
-
End hose length:
-
3000mm
-
Pipe diameter:
-
125mm
-
Max. horizontal distance:
-
38m
-
Placing depth:
-
43m
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
60M
-
Max. horizontal conveying distance:
-
50M
-
Productivity:
-
22M³/H
-
Place of Origin:
-
China
-
Brand Name:
-
Tewrex
-
Weight:
-
30500 kg
-
Dimension(L*W*H):
-
8220*8800*8900mm
-
Marketing Type:
-
New Product 2023
-
fuel:
-
diesel
-
Dimensions:
-
8220*8800*8900mm
-
Model:
-
HB52K
-
Rated working pressure:
-
35MPa
-
Min. height of opening placing boom:
-
9100mm
-
End hose length:
-
3000mm
-
Pipe diameter:
-
125mm
-
Max. horizontal distance:
-
38m
-
Placing depth:
-
43m
Product Description

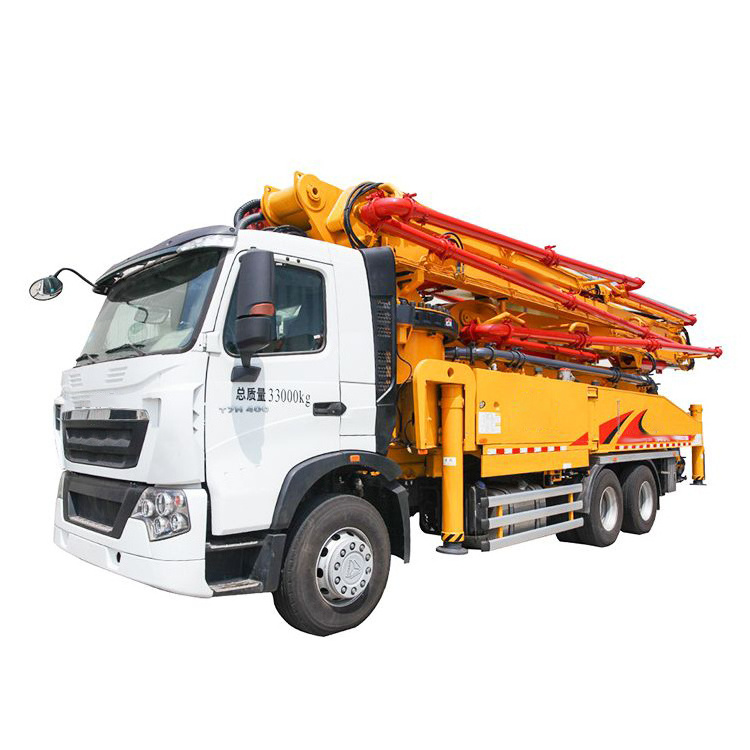

Best selling Concrete Pump HB52K
Best selling Concrete Pump HB52K
Performance advantages:
* Large diameter (230 mm) Φ, large displacement (130 / hour) pumping systems.
* Material absorption can reach more than 85%.
*Effectively reduce emissions with the reversing, vulnerability of longer life.
* The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
* The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
* Large diameter (230 mm) Φ, large displacement (130 / hour) pumping systems.
* Material absorption can reach more than 85%.
*Effectively reduce emissions with the reversing, vulnerability of longer life.
* The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
* The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
|
Description
|
Unit
|
|
Parameter value
|
|
|
Outline dimension
|
mm
|
|
13120×2500×3990
|
|
|
Overall weight
|
kg
|
|
34000
|
|
|
Chassis
|
Model
|
|
ZZ5347V484MD1
|
|
|
|
Max. speed
|
km/h
|
90
|
|
|
|
Max. grade-ability
|
%
|
40
|
|
|
|
Wheelbase
|
mm
|
4800+1400
|
|
|
|
Tire
|
|
315/80R22.5
|
|
|
Engine
|
Model
|
|
MC11.40-40
|
|
|
|
Max. power
|
kW
|
297
|
|
|
|
Max. torque
|
N·m/(r/min)
|
1900/1000~1400
|
|
|
|
Displacement
|
L
|
10.518
|
|
|
|
Emission standard
|
|
Eruo IV
|
|
|
Pumping system
|
Theoretical output
|
m³/h
|
170
|
|
|
|
Concrete pumping pressure
|
MPa
|
8
|
|
|
|
Theoretical pumping times
|
Time/min
|
23~26
|
|
|
|
Delivery cylinder diameter ×stroke
|
mm
|
φ260×2000
|
|
|
|
Max. diameter of pumping concrete
|
mm
|
≤40
|
|
|
|
Filling height
|
mm
|
1580
|
|
|
|
Concrete slump range
|
cm
|
8~23
|
|
|
Placing boom
|
Reach height
|
m
|
51.5
|
|
|
|
Reach depth
|
m
|
36.1
|
|
|
|
Slewingradius
|
m
|
46
|
|
|
|
Slewing angle
|
°
|
±270
|
|
|
|
Unfolding angle of the 1st section
|
°
|
90
|
|
|
|
Unfolding angle of the 2nd section
|
°
|
180
|
|
|
|
Unfolding angle of the 3rd section
|
°
|
180
|
|
|
|
Unfolding angle of the 4th section
|
°
|
240
|
|
|
|
Unfolding angle of the 5th section
|
°
|
210
|
|
|
|
Unfolding angle of the 6th section
|
°
|
120
|
|
|
Stabilizer span
|
Longitudinal span of stabilizer
|
mm
|
9540
|
|
|
|
Transverse span of front stabilizer
|
mm
|
9150
|
|
|
|
Transverse span of rear stabilizer
|
mm
|
10060
|
|
|
Others
|
Lubrication method
|
|
Automatic lubrication
|
|
|
|
Control method
|
|
Manual/remote control
|
|
|
|
Volume of water box
|
L
|
1200
|
|
