Quick Details
-
Brand Name:
-
STMA
-
Fork Length:
-
2440mm
-
Fork Width:
-
320mm
-
Overall Dimensions:
-
9640mm*3200mm*4200mm
-
Weight (KG):
-
30000 kg
-
Advantage:
-
Heavy Load
-
Item:
-
30ton diesel forklift
-
Brand:
-
STMA
-
Mast:
-
2 Stage/3 Stage
-
Color:
-
Customer Demanded
-
Tire:
-
Pneumatic Tire
-
Engine:
-
Chinese Engine
-
Transmission:
-
Automatic Electronic Transmission
-
Feature:
-
High Efficiency
-
Model:
-
FD300
Quick Details
-
Min. Lifting Height:
-
0m
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
STMA
-
Fork Length:
-
2440mm
-
Fork Width:
-
320mm
-
Overall Dimensions:
-
9640mm*3200mm*4200mm
-
Weight (KG):
-
30000 kg
-
Advantage:
-
Heavy Load
-
Item:
-
30ton diesel forklift
-
Brand:
-
STMA
-
Mast:
-
2 Stage/3 Stage
-
Color:
-
Customer Demanded
-
Tire:
-
Pneumatic Tire
-
Engine:
-
Chinese Engine
-
Transmission:
-
Automatic Electronic Transmission
-
Feature:
-
High Efficiency
-
Model:
-
FD300

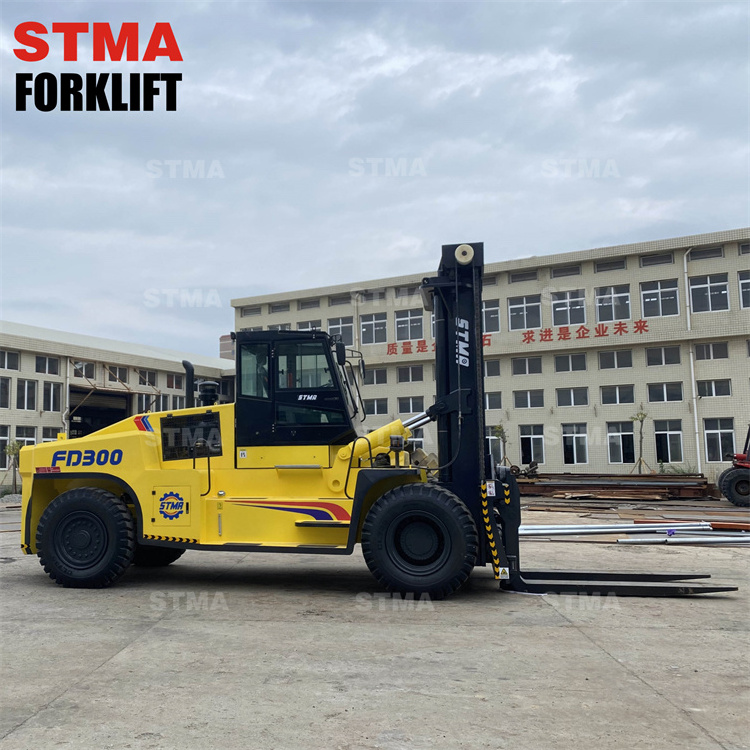

30ton diesel forklift
Main features of 30ton diesel forklift
1.Transmission & torque converter: Hydraulic transmission special for heavy-duty forklift, imported technology, reliable performance,convenient maintenance, smooth transmission and convenient operation.
2.Driven axle: Reinforced driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.
3.Steering system: Adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
4.Braking system: Use mature product from professional manufacturer, disc brakes, heat dissipation faster, light, simple structure and easy to adjust. Especially have very good thermostability performance when heavy loaded, braking effect stable.
5.Control system: Pilot valve control device to make the work efficiency and reduce drivers' labor intensity.
|
SPECIFICATIONS FOR FORKLIFT
|
|
|
|
|||
|
|
Model
|
|
Unit
|
FD300
|
|
|
Vehicle configuration
|
|
|
FD300
|
|
|
Rated load
|
|
kg
|
30000
|
|
|
Load center
|
|
|
1250
|
|
|
Mast tilt angle (front/rear)
|
|
º
|
6/12
|
|
|
Overall dimensions
|
Length
|
mm
|
9640
|
|
|
|
Width
|
mm
|
3200
|
|
|
|
Height
|
mm
|
4200
|
|
|
|
Mast lifting height
|
mm
|
3500
|
|
|
Fork size (L*W*H)
|
|
mm
|
2440X320X110
|
|
|
Min. turning radius
|
|
mm
|
6800
|
|
|
Max. travel speed (with load)
|
|
Km/h
|
28
|
|
|
Lifting speed (with load)
|
|
mm/s
|
260
|
|
|
Gradeability (with load)
|
|
%
|
20
|
|
|
Weight
|
|
Kg
|
38000
|
|
|
Front
|
|
|
4X14.00-24/28PR
|
|
|
Rear
|
|
|
2X14.00-24/28PR
|
|
|
Wheel tread
|
Front
|
mm
|
2490
|
|
|
|
Rear
|
mm
|
2450
|
|
|
Wheelbase
|
|
mm
|
4800
|
|
|
Min. ground clearance
|
|
mm
|
410
|
|
|
Model
|
|
|
6CTAA8.3-C260
|
|
|
Rated power/rotate speed
|
|
KW/r.pm
|
191/2200
|
|
|
Max. torque/rotate speed
|
|
N.m/r.pm
|
1025/1400
|
