Quick Details
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
Diameter: 1200mm
-
Weight:
-
290 KG
-
Capacity:
-
500-1200kg /h
-
Material:
-
304 Stainless Steel
-
Layer:
-
1-5
-
Factory Visit:
-
Yes
-
DIameter:
-
1200mm
-
Function:
-
Screening\separation\sorting\sieving\Grading
-
Frequency:
-
50/60Hz
-
Payment:
-
L/C /D/A /D/P /T/T /Western Union/ MoneyGram
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lanyi
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
Diameter: 1200mm
-
Weight:
-
290 KG
-
Capacity:
-
500-1200kg /h
-
Material:
-
304 Stainless Steel
-
Layer:
-
1-5
-
Factory Visit:
-
Yes
-
DIameter:
-
1200mm
-
Function:
-
Screening\separation\sorting\sieving\Grading
-
Frequency:
-
50/60Hz
-
Payment:
-
L/C /D/A /D/P /T/T /Western Union/ MoneyGram
-
After-sales Service Provided:
-
Video technical support

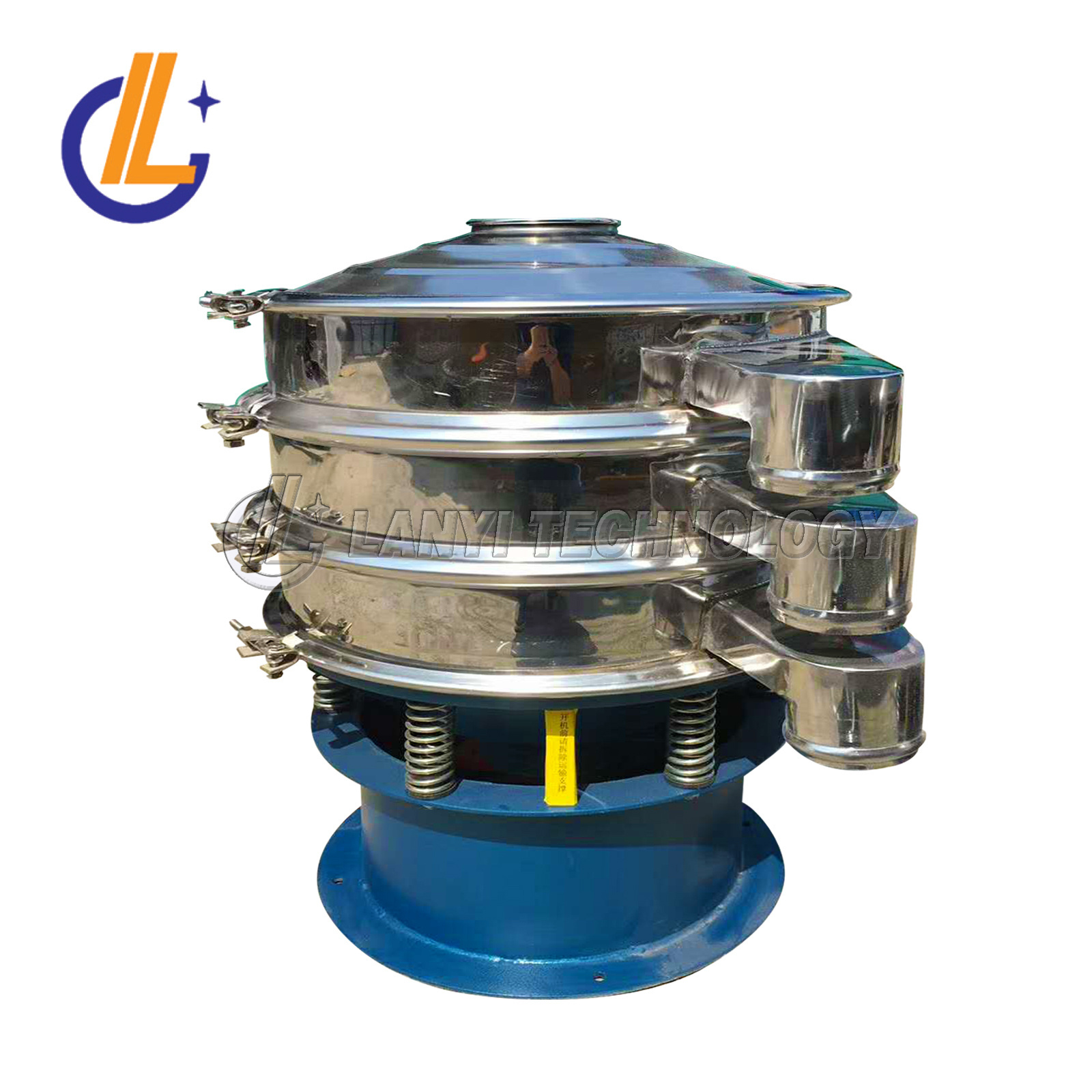

New powder vibrating screen rotary dry sieve with 2 ton/hour capacity rotary vibrating sieve shaker
Vibrating Sifter is a kind of mature technology,general and tend to be standardized classic inertia screening equipment.It can meet the requirement of most materials in grading granulated stuffs and screening out powder and liquid in different operation.High screening efficiency,it adopts whole sealing structure design which can avoid polluting effectively.The direction of outlet port can be changed within 360 degrees. We can provide customized service according to customers' requirements.
Working Principle
1:Easy to change the net, easy to operate, easy to clean
2: Impurities, coarse materials can be automatically discharged, and can be continuously operated
3: High efficiency, exquisite design and durability. Any powder and mucus can be sieved.
4: The mesh is not blocked, the powder does not fly.
Technical Parameter
|
XZS-600-1S XZS-600-2S XZS-600-3S |
0.35-0.55kw |
550mm |
800*800*680 800*800*780 800*800*880 |
1 2 3 |
|
XZS-800-1S XZS-800-2S XZS-800-3S |
0.55-0.75 kw |
750mm |
900*900*780 900*900*930 900*900*1080 |
1 2 3 |
|
XZS-1000-1S XZS-1000-2S XZS-1000-3S |
0.75-1.5 kw |
950mm |
1160*1160*880 1160*1160*1030 1160*1160*1180 |
1 2 3 |
|
XZS-1200-1S XZS-1200-2S XZS-1200-3S |
1.5-1.75 kw |
1150 mm |
1360*1360*980 1360*1360*1160 1360*1360*1360 |
1 2 3 |
|
XZS-1500-1S XZS-1500-2S XZS-1500-3S |
1.75-2.2 kw |
1450mm |
1850*1850*1130 1850*1850*1330 1850*1850*1550 |
1 2 3 |
|
XZS-1800-1S XZS-1800-2S XZS-1800-3S |
2.2 kw |
1750mm |
2200*2200*1360 2200*2200*1460 2200*2200*1680 |
1 2 3 |
1: The production time is about 5-7 working days.
2: the machine will be package by the export standard plywood box or by the container.
3: About the shipping, Our factory use the most professional forwarders and vessel company, to make sure customers goods to arrive at the destination port safely.
