Quick Details
-
Brand Name:
-
wobide
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
2000mm*1750mm*3150mm
-
Power (kW):
-
37
-
Weight (T):
-
3.1
-
Applicable Industries:
-
Recycling, Industrial
-
Certification:
-
CE; ISO9001
-
Application:
-
Plastic Recycling
-
Keyword:
-
plastic crusher machine
-
Speed(r/min):
-
580
-
Rotor blade (pcs):
-
2*3
-
Fixed blade (pcs):
-
4
-
Motor power(kw):
-
37
-
Hydraulic Power(kw):
-
1.5
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Video technical support
Quick Details
-
Max.Production Capacity (kg/h):
-
3000
-
Place of Origin:
-
Zhejiang, China
-
Production Capacity (kg/h):
-
300 - 3000 kg/h
-
Brand Name:
-
wobide
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
2000mm*1750mm*3150mm
-
Power (kW):
-
37
-
Weight (T):
-
3.1
-
Applicable Industries:
-
Recycling, Industrial
-
Certification:
-
CE; ISO9001
-
Application:
-
Plastic Recycling
-
Keyword:
-
plastic crusher machine
-
Speed(r/min):
-
580
-
Rotor blade (pcs):
-
2*3
-
Fixed blade (pcs):
-
4
-
Motor power(kw):
-
37
-
Hydraulic Power(kw):
-
1.5
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Video technical support
Products Description
|
Model
|
WHC800/450
|
|
Main Shaft Length(mm)
|
800
|
|
Tactical Diameter(mm)
|
450
|
|
Speed(rpm)
|
580
|
|
Rotor Blades(pcs)
|
2x3
|
|
Fixed Blades(pcs)
|
4
|
|
Motor Power(kw)
|
37
|
|
Hydraulic Power(kw)
|
1.5
|
|
Screen Mesh Diameter(mm)
|
10-50
|
|
Inlet Size(mm)
|
530x800
|
|
Overall Dimension (mm)
|
2000x1750x3150
|
|
Weight(kg)
|
3100
|

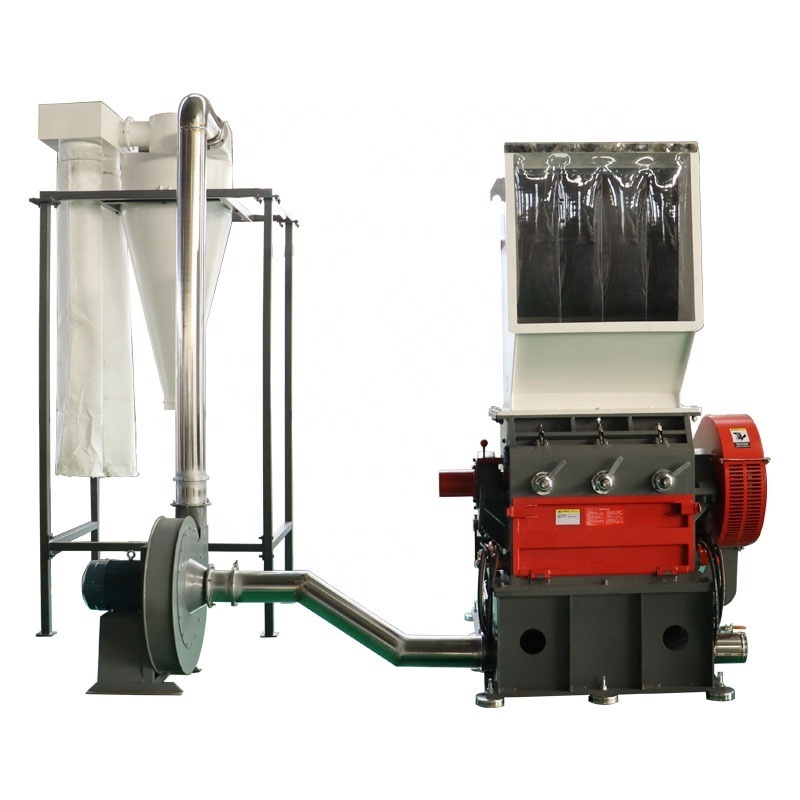

The WHC series heavy-duty crushers are widely used for different kinds of plastic products. The spindle rotor can be customized according to different applications. The unique middle box structure and feeding hopper form can further recycle large household appliances shells, automobile bumpers, rubber thick-walled plastic products, etc. into fine particles. It can also be used as a core crusher for various recycling production lines.
Details Images
Technical Feature
Spindle Rotor
The spindle rotor adopts high-strength welded steel structure with a unique V-shaped design. All spindles have passed strict dynamic and static balance tests to ensure the reliability of machine operation. At the same time, the spindle design can be customized according to different material requirements.
External bearing seat.
The bearing seat is installed outside the machine body. The main shaft and the machine body are sealed by sealing ring, which effectively prevents the shredded materials in the machine body from entering the bearing, thereby prolonging the life of the bearing.
Hydraulic opening system
The upper and lower cabinet and the screen bracket are hydraulically controlled, which is convenient for machine maintenance and the replacement of blades and screens.
Protection device while replacing blade
The main shaft is fixed during the blade replacement process, which makes the blade replacement easier. At the same time, the circuit is disconnected to prevent the mis operation of the machine and protect the safety of operators.
Application:
⇨
Large household appliance shells/ inner container
⇨ Automobile bumpers
⇨ Plastic pallet
⇨ Hollow plastic containers
⇨ Injection product
⇨ Automobile bumpers
⇨ Plastic pallet
⇨ Hollow plastic containers
⇨ Injection product
