Up to
25pcs
can be connected in parallel add/remove batteries online without going offline. It can meet the requirements of redundant system design, and the failure of a single module will not affect others, achieving ultra-high online rate. (except module No. 1)
5KWh
supports
25pcs
capacity up to
125KWh.
10KWh
supports
25pcs
capacity up to
250KWh .
Customers can expand the capacity later according to the power demand of the family.
- Product Details
- {{item.text}}
Quick Details
-
Dimension (L*W*H):
-
482*432.3*133mm
-
Weight:
-
61.2*55127.6
-
Product name:
-
high voltage rack battery
-
Battery cell type:
-
LiFePO4
-
Working Voltage:
-
150V 200V 256V 300V 360V 400V 460V 512V 560V 600V 700V 768V
-
Warranty:
-
10 years
-
Normal Energy:
-
15kWh 20kWh 40kWh 80kWh 120kWh 150kWh 300kWh 500kWh
-
Charge current:
-
Standard Charge: 20A / Fast Charge: 50A
-
Parallel Connection:
-
Up to 25 units
-
Case Material:
-
SPCC
-
Certification:
-
UN38.3/MSDS/Rosh/CE
Quick Details
-
Model Number:
-
HBBX-LF051100A0-S
-
Brand Name:
-
Hysone
-
Place of Origin:
-
Guangdong, China
-
Dimension (L*W*H):
-
482*432.3*133mm
-
Weight:
-
61.2*55127.6
-
Product name:
-
high voltage rack battery
-
Battery cell type:
-
LiFePO4
-
Working Voltage:
-
150V 200V 256V 300V 360V 400V 460V 512V 560V 600V 700V 768V
-
Warranty:
-
10 years
-
Normal Energy:
-
15kWh 20kWh 40kWh 80kWh 120kWh 150kWh 300kWh 500kWh
-
Charge current:
-
Standard Charge: 20A / Fast Charge: 50A
-
Parallel Connection:
-
Up to 25 units
-
Case Material:
-
SPCC
-
Certification:
-
UN38.3/MSDS/Rosh/CE

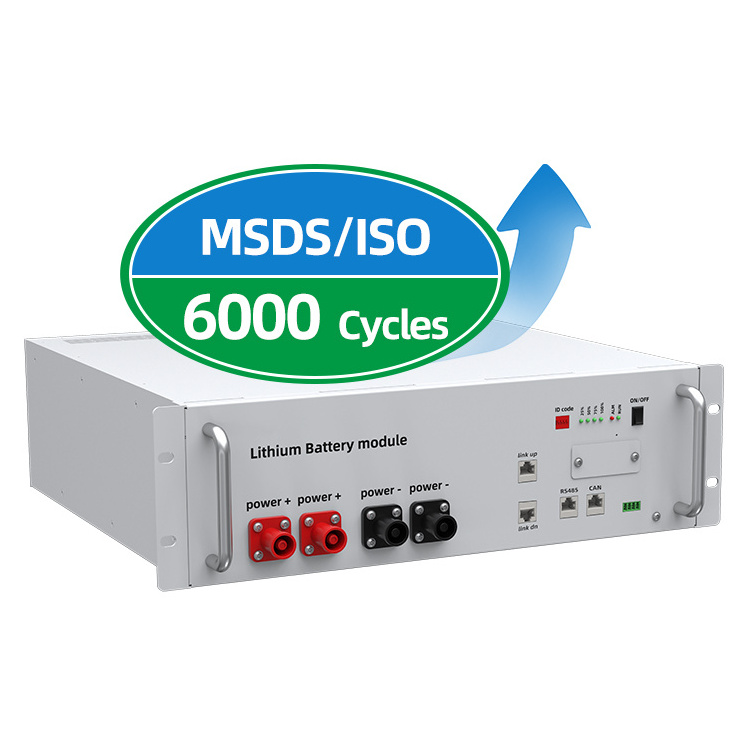

PRODUCTS DESCRIPTION
|
Model
|
HBBX-
LF051100A0-P |
HBBX-
LF051200A0-P |
|
|
Rated Energy
|
5.3kwh
|
10.6kwh
|
|
|
Battery Type
|
LifePO4 battery
|
|
|
|
Nominal Capacity
|
104Ah
|
208Ah
|
|
|
Nominal Voltage
|
51.2V
|
|
|
|
Nominal Output Power Capacity
|
5.12KW
|
5.12KW
|
|
|
Actual Capacity
|
5.72KWH
|
11.40KWH
|
|
|
Cycle Times
|
8192 Times
|
8192 Times
|
|
|
Charge Current
|
Standard Charge: 20A
Fast Charge: 50A |
|
|
|
Max Discharge Current
|
100A
|
100A
|
|
|
Charging Voltage
|
58.4V
|
|
|
|
Warranty
|
10 Years
|
|
|
|
Service Time
|
10 Years
|
|
|
|
Parallel Commection
|
Up to 25 units
|
|
|
|
Dimensions
(Weight)
|
482*412*133mm
(47.9kg)
|
482*730*133mm
(95.8kg)
|
|
|
Communication Mode
|
RS-485 / CAN / RS-232
|
|
|
|
Customization
|
Free logos
|
Free logos
|
|
The fast wire produced by the factory realizes tool-free deployment Compatible with simple brackets/hysone battery cabinets/standard cabinets, suitable for quick installation in different application scenarios. Self-adaptive ID, abandoning the traditional DIP switch design, the coding can be completed without reading the manual. Complete ecology, providing high-efficiency parallel kits according to different power requirements
|
Model
|
15.36kWh/20.48kWh/25.60kWh/51.2kWh/102.40kWh/153.60kWh
|
|
|
Number of Modules
|
3-15 pcs
|
|
|
Battery cell type
|
LiFePO4
|
|
|
Nominal voltage
|
150V 200V 256V 300V 360V 400V 460V 512V 560V 600V 700V 768V
|
|
|
Nominal capacity
|
100Ah/200Ah/300Ah/500Ah/800Ah/1000Ah/2000Ah
|
|
|
Nominal energy
|
15kWh 20kWh 40kWh 80kWh 120kWh 150kWh 300kWh 500kWh
|
|
|
Working Voltage
|
150V 200V 256V 300V 360V 400V 460V 512V 560V 600V 700V 768V
|
|
|
Cycle life
|
>6000 times@80% DOD, 25°C
|
|
|
Recommend scope of SOC
|
0%-90%
|
|
|
Expandable
|
Yes
|
|
|
Warranty
|
10 years
|
|
|
AC Output Data
|
|
|
|
Rated Output Power
|
15KW/20KW/30KW/50KW/60KW/100KW/150KW
|
|
|
Maximum Apparent Power
|
150kW
|
|
|
Maximum Active Power
|
150kW
|
|
|
Inverter type
|
Internal and external
|
|
The energy storage system of this project consists of battery equipment, battery management system, energy storage inverter, energy management system, temperature control and fire protection system, etc.
The system is installed in a 20HC container structure, and the outer part of the container is made of double-layer color steel plates. The inner part is filled with A-grade fireproof and flame-retardant rock wool. At the same time, a flame-retardant rock wool insulation layer is installed on the door to enhance the thermal insulation effect.
Safety and reliability
Use lithium iron phosphate battery, which does not contain cobalt and is not prone to fire/explosion.
Up to
6pcs
tempprobe to prevent thermal runaway
SGCD material shell to prevent corrosion.
After multiple laboratory reliability tests, 100% of shipments passed ultra-performance testing, 100% passed 3h vibration/simulated transportation test, and 100% passed 6h rapid charge and discharge aging test
Traceable Raw Materials
The source of raw materials is legal/traceable. Insist on not using gray or source materials with gray qualities.
No non- or difficult-to recycle/degradable materials are used.
Raw materials are non-toxic, non-polluting, and have no chemical/electromagnetic radiation to the environment.
Functional description
1) Main information collection for PCS and battery systems
2) Air conditioning, fire protection, and other external node status collection
3) Internal operation power scheduling, fault and alarm logic management of the system
4) Battery balance management between energy storage subsystems
5) Power system backup power supply
6) Auxiliary new energy grid connection (smooth new energy and reduce new energy restrictions)
7) Multi energy complementary microgrid system
8) AGC services for auxiliary thermal power units
9) Demand side response (peak valley arbitrage, demand management)
CUSTOMER FEEDBACK PROJECT DIAGRAM
COMPANY PROFILE
COMMENTS FROM THE WORLD
OUR CERTIFICATE
PACKAGE &PAYMENT
FAQ
Q:What can you buy from us?
Rack Battery ，ESS Battery，Lifepo4 Battery Pack,Energy Storage Battery,Lithium ion Battery,Lifepo4 Cells,Battery DIY kit
Q: How much power solar energy systems can you provide?
A: Home solar energy systems 15kWh 20kWh 40kWh 80kWh 120kWh 150kWh 300kWh 500kWh, and we also provide higher loading commercial and industrial solar power systems.
Q: Can you offer On Grid and Off Grid solar power systems?
A: Yes, we produce Off Grid solar systems, Hybrid solar systems and also provide On Grid solar systems.
Q:Why should you buy from us not from other suppliers?
1. High Quality
2. Fast Delivery with local stock
3. Fast after sales service
4. Factory Price
5. Over 11+years R&D experience
Q：Your battery life is only 6000+cycles. Is that A Grade A battery?
A：Yes,Our battery is Grade A cell,this is because the standards are different. Our 6000+ cycles are measured under the condition of 0.5C charging ratio of 100%DOD,and when we use 0.25C charging ratio, our cycles can reach more than 6000+.
Q: What certificate do you offer?
A:CE, UN38.8, MSDS, IEC, CEC, ISO
Q: l need this product and wanna a system for family/ industrial/commercial use, can you help me?
A: Yes. We have professional technology team average 11+years experience, they can design solar power system in accordance with customers' special requirements.
Q：What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:null;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Germany
Q: How long is your delivery time?
A:Within 15 days. EU STOCK delivery in 7-15 working days.
