beekeping queen bee insemination equipment new bee breeding farm machinery

beekeping queen bee insemination equipment new bee breeding farm machinery

FOB Reference Price: Get Latest Price

≥1 Sets

US $4699

≥3 Sets

US $4599

≥6 Sets

US $4499

≥10 Sets

US $4399

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Victory & Exploration

Model Number:: VE-QBAII-H1.4-D

Product name:: Artificial Insemination Instrument of Queen Bee

Material:: Stainless Steel

Color:: Silver

Weight:: 18kg/set

Size:: 250x160x450mm

Used for:: Bee Queen

Function:: Queen Bee Mating

Application:: Bee Farm

Type:: Bee Tools

Usage:: Beekeeping Equipmet

Quick Details

Weight (KG):: 18

Core Components:: NONE

Place of Origin:: Shanghai, China

Brand Name:: Victory & Exploration

Model Number:: VE-QBAII-H1.4-D

Product name:: Artificial Insemination Instrument of Queen Bee

Material:: Stainless Steel

Color:: Silver

Weight:: 18kg/set

Size:: 250x160x450mm

Used for:: Bee Queen

Function:: Queen Bee Mating

Application:: Bee Farm

Type:: Bee Tools

Usage:: Beekeeping Equipmet

Artificial Insemination Instrument Of Queen Be e

The Instrument is patented product , it was won Gold Award .

Exquisite Craftsmanship of strict requirements for micron-level technique

Smooth Operational Feeling generated from repeated p olishing and debugging of all parts generated

An All-round breakthrough in accurate micro-operation

The Instrument is an upgrade of H1.3

Use : Bee Breeding Farm , Beekeeping Farm , Research laboratory of Bee Breeding , Bee Academic Project , Artificial Insemination of other Insects …

Specification

Brand	Victory & Exploration
Product name	Artificial Insemination Instrument of Queen Bee
Model	VE-QBAII-H1.4-D
Main material	Aluminium alloy, stainless steel
Color	silver
size	250 X 160 X 450 mm
Instrument net weight (±0.5kg)	5 kg
Protective box size	300 X 200 X 400 mm ( ±20mm )
Carton size	400 X 400 X 600 mm ( ±50mm )
Net weight of set package(±1kg)	18 kg
Place of Origin	Shanghai , China
Manufacturer	Shanghai Suosheng Biotechnology Co., Ltd.

Application Scene

Product Description

Packing List

One Artificial Insemination Instrument Of Queen Bee ( VE-QBAII-H1.4 ) :

Including one Instrument Body , one Abdominal Hook , one Tail Clip , one Spiral Micro Syringe (1000μL ) , one Induction Room , one Anesthesia Room , three Special Needle for Queen Bee’s Insemination , one Protective Box and an Instruction Manual .

One Anesthesia System Of Queen Bee ：
one high-pressure 304 steel cylinder, one bubble recorder, one base, one valve, one hose
One Three-eye Microscope
One CCD Electronic Eyepiece
One CCD Connector
One Displayer
One Luminescent Lamp

Micro-void Artificial Insemination Instrument Of Queen Bee

Our patented product is self-developed , which is not only a professional instrument for scientific research , but also applicable to the commercial use of the apiculture industry.

Perfect size & Metal Body

The size of the instrument is suitable for bees, which is also designed ergonomically. It is easy to operate.Its design integrates metal materials (such as aluminum alloy and stainless steel) and plexiglass.

3D Guide Rail & Free Fine-tuning

With a fine-tuning function, VE’s 3D guide rail can be adjusted from six directions (top, bottom, left, right, front and back). Thanks to its sound adjustment adaptability, this product is easy to operate, which can meet your demanding requirements for the freedom and accurate control of the instrument. The product’s performance in this respect is rather extraordinary.

Micro Syringe

A spiral fine-tuning syringe can help you accurately control and inject the drone’s semen, as well as avoid causing damage to the queen bee by wrong operation.

Special Needle for Queen Bee’s Artificial Insemination

VE’s Special Insemination Needle is transparent and smoothly rounded, without hurting the queen bee. This patented and ultra-fine needle is of special craft. Being made up of glass, with an outer diameter less than 0.3mm and an inner diameter more than 0.17mm, this needle makes for a clear observation of the drone’s semen condition during the semen collection and insemination.

Tail Clip

The Tail Clip can pull Queen Bee’s stinger more efficiently , making the Special Insemination Needle of insemination pass through its valvefold in an easier way without causing damage to the Queen Bee. This type of insemination instrument eliminates the use of old instrument's probe, and greatly reduces mechanical damage to the queen bee. This kind of hook suits many kinds of bee.

Portable Protective Box

Thanks to the Integrated injection molding technique, the box is exceptionally strong which enjoys anti-fall, anti-pressure, anti-impact, waterproof, dust-proof, corrosion-resistant, high temperature and cold resistance advantages. This professional protection provides safety for your precision instruments.

Displayer

Display components include: one 10-inch display, one special bracket, one power cord and other accessories.It is used in combination with CCD Electronic Eyepiece ， CCD Connector, Three-eye Microscope and other accessories.The display expanded display mode of microscope, maked more convenient and intuitive in artificial insemination, and suitable for teaching, demonstration and other work.In addition to the CCD components connected to the display, but also connected to computers, television and other large screen.

Three-eye Microscope

A powerful three-eye microscope , it expedite the insemination work and streamline the operations.

Anesthesia System Of Queen Bee

Safe and durable, simple and efficient, portable and convenient

When the anesthetic material A+B and water are injected into the cylinder, the anesthetic gas is thus produced, the method of which is simple and convenient to take. Unlike the old-fashioned inflatable bottle, this anesthesia system is portable wherever you go, and can be online at anytime, anywhere. (The raw materials for anesthesia are powdery so that the overseas customers can place an order by their own.)

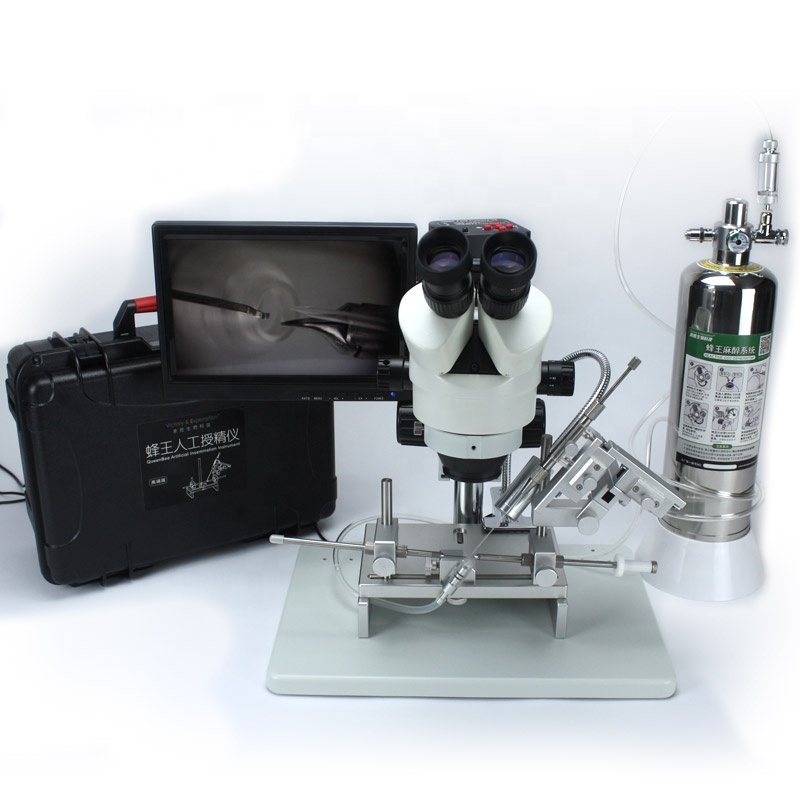

H1.4 D set

This set includes main parts: VE-QBAIi-H1.4 Artificial Insemination Instrument Of Queen Bee , three-eye microscope , Three-eye Microscope , CCD Electronic Eyepiece , CCD Connector , Displayer and Luminescent Lamp . The Artificial insemination of Queen Bee can be carried out by this set . If you need a whole suite of bee-related LAB equipment or other products , you may contact with our customer service.

Product Paramenters

The size is measured by hand, so it is normal if there is a margin of error .

The image shown here is indicative only . If there is inconsistency between the image and the actual product , the actual product shall govern .

Packing & Delivery

1. VE's Artificial Insemination Instrument of Queen Bee will be safely packed by special protective box.

2. The packed instrument and other parts shall be packed in a high-quality cardboard box as a whole.

Statement

Please operate according to the specification of the instruction manual. In order to prevent piracy, some parts of the
instrument adopt specially designed technique, which will be damaged when disassembled and cannot be restored. Any damage to the instrument caused by unauthorized disassembly of the internal parts will not be guaranteed. Related technical support and after-sales service will stop immediately when the instrument is artificially damaged.
