Quick Details
-
Core Components:
-
cnc
-
Dispensing Range:
-
X400*Y400*Z50mm
-
Product Weight:
-
Max.4.5kg
-
Product Thickness:
-
Max.6mm
-
Vision Methodology:
-
CCD
-
Cleaning System:
-
Auto
-
Dimension:
-
W770*D1200*H1500mm
-
Weight:
-
650 Kg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUSH
-
Weight (KG):
-
650
-
Core Components:
-
cnc
-
Dispensing Range:
-
X400*Y400*Z50mm
-
Product Weight:
-
Max.4.5kg
-
Product Thickness:
-
Max.6mm
-
Vision Methodology:
-
CCD
-
Cleaning System:
-
Auto
-
Dimension:
-
W770*D1200*H1500mm
-
Weight:
-
650 Kg

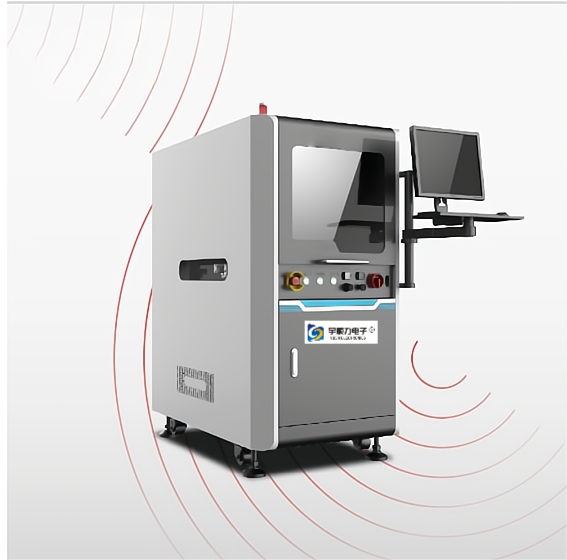

Automatic LENS Glue Dispensing Machine
Overview
The YUSH dispensing system has significant strength in cost performance. Being reliable, durable, and concisely designed, it can be applied to PCB and base materials of different specifications. The UFD operating software ensures the stability and reliability of the system. The system is designed for chip sealing, PCB assembly, SMT red glue dispensing,led lens,and medical products. With adjustable track width, it can be applied to more products.
Product Description
• High cost performance;
• Non-contact jet valve to realize smaller dispensing diameter and wider application area
• Jet valve can improve the reliability and uniformity of dispensing, and improve the output and material utilization rate;
• Minimum width of excessive glue can be controlled in 0.2mm(related to the configuration and glue);
• Chip edge identification is much more accurate than mark-point identification.
• ID identification, automatic program calling, fool-proofing and data statistics function helps to realize smart manufacturing.
Specification:
| Model | YS-D450 | YS-D600(LENS) | YS-D1200(LENS) |
| Dispensing Range | X400*Y400*Z50mm | X600*Y400*Z50mm | X1200*Y400*Z50mm |
| Product Weight | Max.4.5kg | ||
| Product Thickness | Max.6mm | ||
| Maximum Speed | 2000mm/s | ||
| Vision Methodology | CCD | ||
| Cleaning System | Auto | ||
| Injection Valve Speed | 200 points/s | ||
| Dispensing Accuracy |
±0.02mm
|
||
| Repeated Accuracy | ±0.01mm | ||
| Weight | 650 Kg | 750 Kg | 950 Kg |
| Dimension | W770*D1200*H1500mm | W880*D1200*H1500mm | W1590*D1200*H1500mm |
