Quick Details
-
Brand Name:
-
XIANHE
-
Power:
-
3.25KW
-
Dimension(L*W*H):
-
2060*1200*1600mm
-
Weight:
-
700 KG
-
Features:
-
Whole roll slitting
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
working width:
-
1700 mm / customizable
-
Cutting materials:
-
non-woven fabrics, tent, umbrella, foam, leather, plastic
-
Slitting Speed:
-
15-40m/min
-
Fabric roll diameter:
-
Within 500mm
-
Inside paper tube diameter:
-
38-76mm
-
Cutting blade diameter:
-
350mm,400mm,500mm,600mm
-
Cutting thickness:
-
2mm
-
Keywords:
-
Fabric strip cutting machine
-
Color:
-
As customer request
Quick Details
-
Voltage:
-
220V/380V
-
Application:
-
Whole fabric roll slitting
-
Place of Origin:
-
China
-
Brand Name:
-
XIANHE
-
Power:
-
3.25KW
-
Dimension(L*W*H):
-
2060*1200*1600mm
-
Weight:
-
700 KG
-
Features:
-
Whole roll slitting
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
working width:
-
1700 mm / customizable
-
Cutting materials:
-
non-woven fabrics, tent, umbrella, foam, leather, plastic
-
Slitting Speed:
-
15-40m/min
-
Fabric roll diameter:
-
Within 500mm
-
Inside paper tube diameter:
-
38-76mm
-
Cutting blade diameter:
-
350mm,400mm,500mm,600mm
-
Cutting thickness:
-
2mm
-
Keywords:
-
Fabric strip cutting machine
-
Color:
-
As customer request
Product Description
1.Spindle power use stepless variable speed system, which can be used for high and low adjusting speed and positive & negative switching control to achieve best cutting quality.
2.Adopting high precision stepping system to control cutting width, Cooperating with precision ball screw and slide rail in Taiwan to reach to high precision cutting.
3.Using horizontal pushing for cutting cloth
4.Interface uses Chinese and English LCD display ,we can directly input the cutting width quantity setting and action setting.
2.Adopting high precision stepping system to control cutting width, Cooperating with precision ball screw and slide rail in Taiwan to reach to high precision cutting.
3.Using horizontal pushing for cutting cloth
4.Interface uses Chinese and English LCD display ,we can directly input the cutting width quantity setting and action setting.

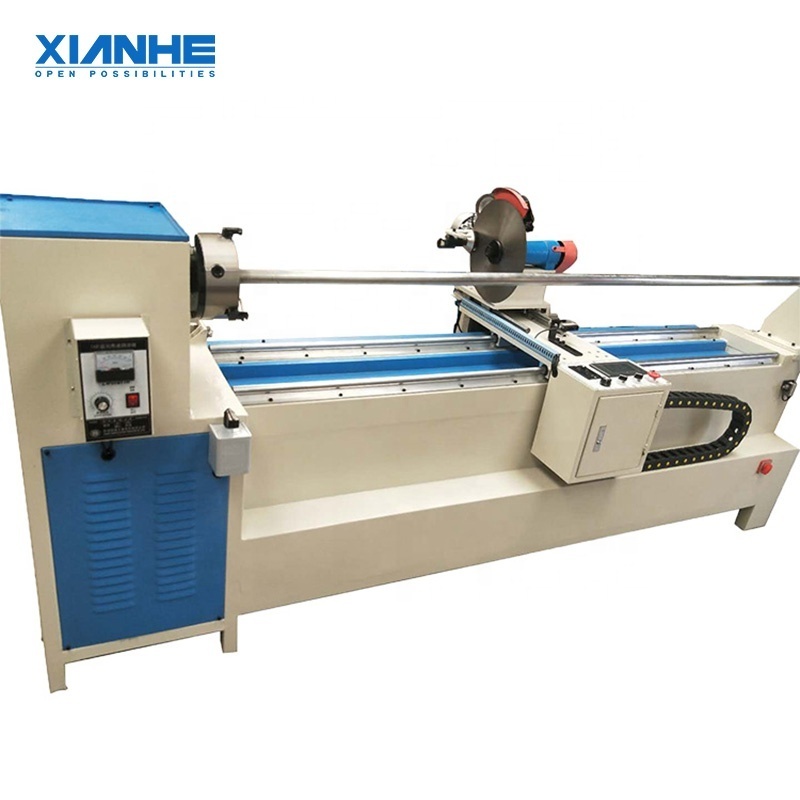

Details Images
Specification
|
Machine working width
|
1700mm
|
|
Effective working width
|
1700mm
|
|
Round knife diameter
|
φ350/400/500/600mm
|
|
Inner paper tube diameter
|
38-76mm
|
|
Slitting speed
|
0-1200rpm
|
|
Motor power
|
3kw
|
|
Voltage
|
220v/380v 50/60hz
|
|
Machine weight
|
700kg
|
|
Packing dimension
|
3000*1500*1550mm
|
|
Machine with touchscreen operation
|
Yes
|
