Quick Details
-
Interface Standard:
-
CCS1 CCS2 CHAdeMO GBT, CCS1 CCS2 CHAdeMO GBT
-
Output Current:
-
0-67A, 0-67A
-
Input Voltage:
-
AC380±20%, AC380±20%
-
Purpose:
-
for retrofit/upgrade
-
Output voltage:
-
200-1000VDC
Quick Details
-
Place of Origin:
-
Shandong, China, China
-
Model Number:
-
TXDC380A20, TXDC380A20
-
Brand Name:
-
TONGXING, TONGXING
-
Interface Standard:
-
CCS1 CCS2 CHAdeMO GBT, CCS1 CCS2 CHAdeMO GBT
-
Output Current:
-
0-67A, 0-67A
-
Input Voltage:
-
AC380±20%, AC380±20%
-
Purpose:
-
for retrofit/upgrade
-
Output voltage:
-
200-1000VDC
Products Description

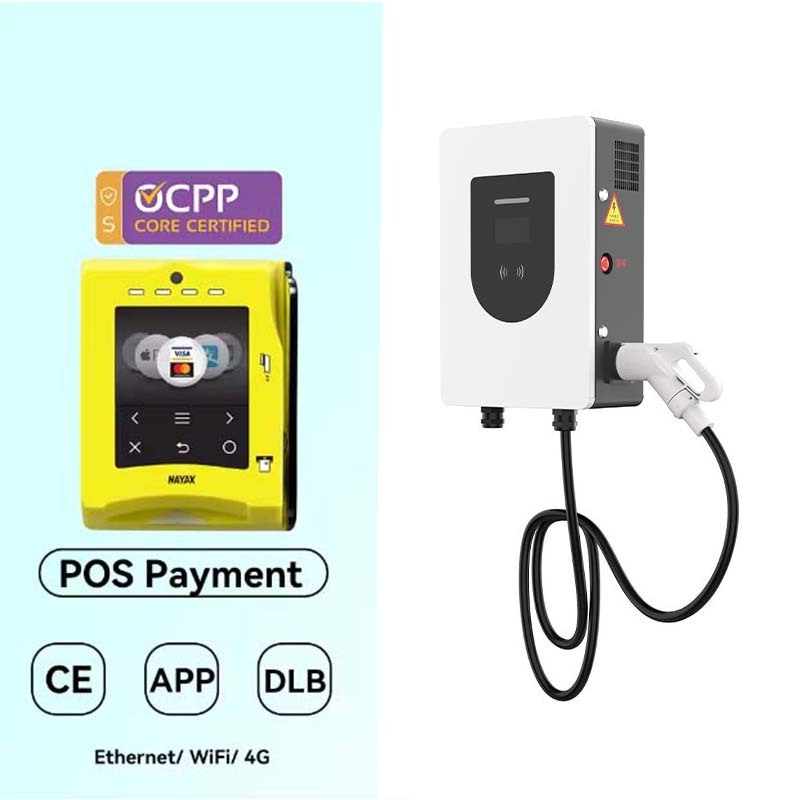

Fast DC Charger Series
The 20KW/30KW/40KW small DC series is compatible with different new energy models, and the full time of general passenger
cars is 1-2 hours.
|
Product Modle
|
Product Modle
|
TXDC380A20
|
TXDC380A30
|
TXDC380A40
|
||
|
Rated power
|
|
DC 20KW
|
DC 30KW
|
DC 40KW
|
||
|
Electrical equipment
|
Installation method
|
Wall mounted
|
|
|
||
|
|
Overall dimensions
|
410*250*610mm
|
530*250*610mm
|
|
||
|
|
Output mode
|
Single connector, 5M cable
|
|
Single/Double connector, 5M cable
|
||
|
|
Wiring mode
|
Down in and up out
|
|
|
||
|
|
Input voltage
|
AC380V
± 20%
|
|
|
||
|
|
Input frequency
|
45-65Hz
|
|
|
||
|
|
Output voltage
|
200-1000V
|
|
|
||
|
|
Single connector
output current
|
0-67A
|
0-120A
|
0-133A
|
||
|
|
Metering accuracy
|
Level 0.5
|
|
|
||
Product Details
Diversified customization options
Diversified payment methods
Applicable Scenarios
Diversified application scenarios
It can
meet the fast charging needs of personal vehicles and operating vehicles, and is suitable for rapid power replenishment in residential communities, real estate project facilities, government units/enterprise parking lots scenic spots/hotels/apartments/office building parking lots and other scenarios.
▄
Suitable for public operation charging stations.
▄
Urban centralized charging stations.
▄
High-speed service area.
▄
Industrial Complex.
▄
Charging scenarios such as scenic spots, hotels, and commercial centers.
▄
Charging
stations for special vehicles (special vehicles such as buses, logistics, and sanitation vehicles)
