Model Number:
-
SLK-YD36
-
Product Name:
-
Diffused silicon ceramic air hydraulic pressure transducer
-
Media::
-
Oil, water, gas and compatible with 316L stainless steel
-
Pressure::
-
Ceramic type:0.1-40Mpa Diffused silicon type: -0.1MPa ~ 0 ~ 100MPa
-
Overload::
-
2 times (10MPa or less); 1.5 times (10MPa or more)
-
Accuracy::
-
± 0.1% FS ,± 0.2% FS , ± 0.5% FS,± 1% FS
-
Nonlinear::
-
<± 0.2% FS
-
Hysteresis and repeatability::
-
≤ ± 0.1% FS
-
Long-term stability::
-
≤ ± 0.1% FS / year
-
≤ ± 0.1% FS / year:
-
Current 2-wire: 4 ~ 20mA
-
Voltage 3-wire:
-
0 ~ 5V; 0 ~ 10V; 1 ~ 5V; 1 ~ 10V Option:RS 485 ,har
Quick Details
-
Warranty:
-
2 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Shelok
-
Model Number:
-
SLK-YD36
-
Product Name:
-
Diffused silicon ceramic air hydraulic pressure transducer
-
Media::
-
Oil, water, gas and compatible with 316L stainless steel
-
Pressure::
-
Ceramic type:0.1-40Mpa Diffused silicon type: -0.1MPa ~ 0 ~ 100MPa
-
Overload::
-
2 times (10MPa or less); 1.5 times (10MPa or more)
-
Accuracy::
-
± 0.1% FS ,± 0.2% FS , ± 0.5% FS,± 1% FS
-
Nonlinear::
-
<± 0.2% FS
-
Hysteresis and repeatability::
-
≤ ± 0.1% FS
-
Long-term stability::
-
≤ ± 0.1% FS / year
-
≤ ± 0.1% FS / year:
-
Current 2-wire: 4 ~ 20mA
-
Voltage 3-wire:
-
0 ~ 5V; 0 ~ 10V; 1 ~ 5V; 1 ~ 10V Option:RS 485 ,har
Description Diffused silicon ceramic air hydraulic pressure transducer
YD36 316 series diffused silicon pressure transmitter. Our company introduces foreign technology and equipment to produce transmitters. The key raw materials, components and parts are all derived from imported diffused silicon and ceramic pressure sensors as sensitive components. The integrated module is adopted. Fine temperature drift, zero point, and nonlinear compensation can realize accurate measurement and transmission of pressure changes in liquid, gas, steam and other media.
The product is small in size, suitable for small space installation, direct installation in the process, good temperature characteristics, and high comprehensive accuracy. The whole machine has been rigorously assembled and tested. The product has the characteristics of design principles, varieties, and easy installation and use. Since the appearance of this model is fully integrated with the current domestic popularity, in order to adapt to the continuous improvement and development of domestic automation level, this series of products are not only compact in design, but also introduces intelligent functions with HART fieldbus protocol.
YD36 pressure transmitters are used in mechanical engineering; machine tools; control and feedback control systems; hydraulic pneumatics, pumps and compressors.

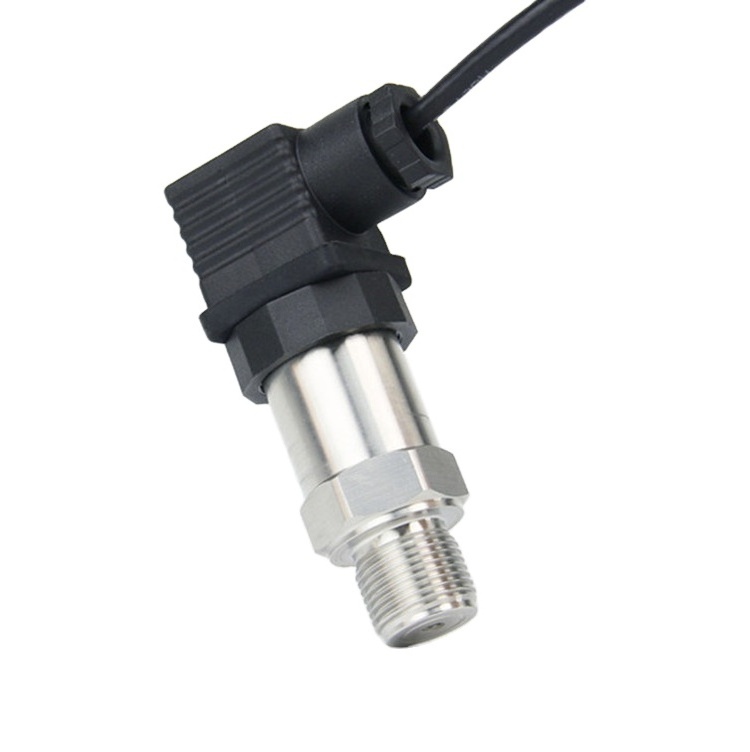

Detailed Images Diffused silicon ceramic air hydraulic pressure transducer
Specification Diffused silicon ceramic air hydraulic pressure transducer
|
Technical indicators: |
|
|
Media: |
Oil, water, gas and compatible with 316L stainless steel |
|
Pressure: |
Ceramic type:0.1-40Mpa
|
|
Overload: |
2 times (10MPa or less); 1.5 times (10MPa or more) |
|
Accuracy: |
± 0.1% FS ,± 0.2% FS , ± 0.5% FS,± 1% FS |
|
Nonlinear: |
<± 0.2% FS |
|
Hysteresis and repeatability: |
≤ ± 0.1% FS |
|
Long-term stability: |
≤ ± 0.1% FS / year |
|
Zero drift: |
≤ ± 0.02% FS / ℃ |
|
Response time: |
≤500ms (standard) |
|
Electrical parameters: |
|
|
Output: |
Current 2-wire: 4 ~ 20mA
|
|
Supply voltage: |
DC24V (12 ~ 32VDC, less may contact) |
|
Load capacity: |
current output: ≤ 500Ω |
|
Voltage output: |
≤ 250Ω output impedance |
|
Electrical connection: |
Standard for Hersman, optional direct outlet or M20 PIN Aviation |
|
Materials: |
|
|
Wetted parts: |
316L stainless steel |
|
Shell: |
304 |
|
Seals: |
Viton, optional: EPOM, NBR |
|
Diaphragm: |
316L stainless steel |
|
Other specifications: |
|
|
Process connection: |
M20 × 1.5 external thread (standard) (optiona l other connections) |
|
Material: |
316L stainless steel wetted materials; Shell: 304 |
|
Protection class: |
IP 65 |
|
Medium temperature: |
-30 ~ 80 ℃ |
|
Ambient temperature: |
-40 ~ 80 ℃ |
|
Storage temperature: |
-40 ~ 100 ℃ |
|
Earthquake: |
108 RMS (25 ~ 2000HZ) |
|
Current Limit: |
The maximum current-24mA; voltage-largest 5mA |
|
Certification: |
CE |
Features Diffused silicon ceramic air hydraulic pressure transducer
Measuring range:0-10Kpa-100Mpa
Accuracy: 0.1%,0.25%,0.5% BFSL
Output: 4-20mA, DC0-10V, DC 0-5V or others
Electrical connection: H irsch man n connector , M12*1 round aviation connector, cable directly
Process connection: G1/4.1/4NPT,G1/2,M20*1.5 or others
