Compared with many other cleaning methods, the ultrasonic transducer shows great superiority in the ultrasonic cleaning machine. Especially in specialized and group production enterprises, ultrasonic cleaning machines have gradually replaced the traditional dipping, scrubbing, pressure cleaning, vibration cleaning and steam cleaning process methods. The high efficiency and high cleanliness of the ultrasonic cleaner benefit from the penetration and cavitation shock waves generated when sound waves propagate in the medium. Therefore, it is easy to clean the parts with complex shapes, cavities and thinner cavities. For general degreasing, rust prevention, phosphating and other processes, under the action of ultrasound, it only takes two to three minutes to complete. Compared with the traditional method, it can be improved several times to dozens of times, and the cleanliness can reach high standards. In many occasions that require high product surface quality and productivity, it is more prominent that other cleaning methods are difficult to achieve or irreplaceable.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
OKS-8UCT-3825
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
OKS
-
Theory:
-
Electricity to Mechanical Energy
-
Output:
-
peak-peak 700v-1000v
-
Power:
-
60w
-
Application:
-
Industry Ultrasonic Cleaning Transducer
-
Name:
-
Ultrasonic Cleaning Transducer
-
Frequency:
-
25khz
-
Resonance Impedance (Ω):
-
≤20
-
Static Capacity (pF)±10%:
-
3800
-
Radiation head*Height (mm):
-
59*80mm
-
Feature:
-
Long Life Low Cost
-
Material:
-
Aluminum
Quick Details
-
Usage:
-
ultrasonic cleaning
-
Mounting Type:
-
paste
-
Description:
-
ultrasonic cleaning transducer, ultrasonic transducer
-
Model Number:
-
OKS-8UCT-3825
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
OKS
-
Theory:
-
Electricity to Mechanical Energy
-
Output:
-
peak-peak 700v-1000v
-
Power:
-
60w
-
Application:
-
Industry Ultrasonic Cleaning Transducer
-
Name:
-
Ultrasonic Cleaning Transducer
-
Frequency:
-
25khz
-
Resonance Impedance (Ω):
-
≤20
-
Static Capacity (pF)±10%:
-
3800
-
Radiation head*Height (mm):
-
59*80mm
-
Feature:
-
Long Life Low Cost
-
Material:
-
Aluminum
Product Description
|
Specification List
|
|
|
|
|
|
|
||||||
|
Model
|
Frequency
|
Capacitance
|
Resonance Impedance
|
Size
|
Power
|
Insulation resistance
|
||||||
|
|
（KHz）
|
（pF）
|
（Ω）
|
Radiation head*Height (mm)
|
（W）
|
(2500VDC)
|
||||||
|
OKS-8UCT-5020
|
20±0.5
|
4650±10%
|
≤25Ω
|
79*94
|
120w
|
≥100MΩ
|
||||||
|
OKS-4UCT-2540
|
40±0.8
|
2400±10%
|
≤30Ω
|
25*58
|
20w
|
≥100MΩ
|
||||||
|
OKS-4UCT-2540
|
40±0.8
|
2400±10%
|
≤30Ω
|
30*50
|
20w
|
≥100MΩ
|
||||||
|
OKS-4UCT-2560
|
60±1.5
|
2300±10%
|
≤35Ω
|
30*35
|
20w
|
≥100MΩ
|
||||||
|
OKS-4UCT-2565
|
65±1.5
|
2300±10%
|
≤35Ω
|
25*31
|
20w
|
≥100MΩ
|
||||||
|
OKS-4UCT-3055
|
55±1.0
|
3100±10%
|
≤35Ω
|
30*45
|
35w
|
≥100MΩ
|
||||||
|
OKS-4UCT-3050
|
52±2.0
|
3100±10%
|
≤35Ω
|
38*40
|
35w
|
≥100MΩ
|
||||||
|
OKS-4UCT-3528*
|
28 ±0.5
|
4000±10%
|
≤20Ω
|
45*79
|
50w
|
≥100MΩ
|
||||||
|
OKS-4AH-3540*
|
40 ±1.0
|
4000±10%
|
≤20Ω
|
45*55
|
50w
|
≥100MΩ
|
||||||
|
OKS-4UCT-3825*
|
25±0.8
|
4800±10%
|
≤20Ω
|
59*80
|
60w
|
≥100MΩ
|
||||||
|
OKS-4UCT-3828*
|
28±0.5
|
4800±10%
|
≤20Ω
|
59*68
|
60w
|
≥100MΩ
|
||||||
|
OKS-4UCT-3833
|
33±0.5
|
4800±10%
|
≤20Ω
|
48*62
|
60w
|
≥100MΩ
|
||||||
|
OKS-4UCT-3835
|
35±0.5
|
4800±10%
|
≤20Ω
|
45*55
|
60w
|
≥100MΩ
|
||||||
|
OKS-4UCT-3840*
|
40±0.5
|
4800±10%
|
≤20Ω
|
48*51
|
60w
|
≥100MΩ
|
||||||
|
OKS-4UCT-4520
|
22±0.5
|
7600±10%
|
≤20Ω
|
67*92
|
100w
|
≥100MΩ
|
||||||
|
OKS-4UCT-4525
|
25±0.5
|
7600±10%
|
≤20Ω
|
67*76
|
100w
|
≥100MΩ
|
||||||
|
OKS-4UCT-4528*
|
28±0.5
|
7600±10%
|
≤20Ω
|
67*68
|
100w
|
≥100MΩ
|
||||||
|
OKS-4UCT-4540*
|
40±0.5
|
7600±10%
|
≤20Ω
|
55*53
|
100w
|
≥100MΩ
|
||||||
|
OKS-4UCT-5028
|
28±0.5
|
9600±10%
|
≤20Ω
|
67*68
|
120w
|
≥100MΩ
|
||||||
|
OKS-4UCT-3868
|
67±2.0
|
4800±10%
|
≤20Ω
|
50*65
|
50w
|
≥100MΩ
|
||||||
|
OKS-4UCT-3880
|
79±1.5
|
4800±10%
|
≤25Ω
|
40*54
|
60w
|
≥100MΩ
|
||||||
|
OKS-4UCT-38100
|
100±1.5
|
4800±10%
|
≤25Ω
|
40*57
|
60w
|
≥100MΩ
|
||||||
|
OKS-4AS-38120
|
120±1.5
|
4800±10%
|
≤25Ω
|
40*58
|
60w
|
≥100MΩ
|
||||||
|
OKS-4UCT-35130
|
129±1.5
|
4200±10%
|
≤25Ω
|
36*54
|
50w
|
≥100MΩ
|
||||||
|
OKS4UCT-38160
|
160±1.5
|
4800±10%
|
≤25Ω
|
40*57
|
60w
|
≥100MΩ
|
||||||
|
OKS-4AS-35165
|
165±5.0
|
4100±10%
|
≤60Ω
|
42*61
|
40w
|
≥100MΩ
|
||||||
|
OKS-4AH-25200
|
200±2.0
|
2300±10%
|
≤35Ω
|
30*35
|
20w
|
≥100MΩ
|
||||||
|
OKS-8SE-3828/40
|
28/40±1.0
|
3800±10%
|
≤30Ω
|
65*70
|
60w
|
≥100MΩ
|
||||||
|
OKS-8UCT-2540/130
|
40/130±2.0
|
3100±10%
|
≤30Ω
|
25*58
|
20w
|
≥100MΩ
|
||||||
|
OKS-4UCT-3840/68
|
38/66±2.0
|
4800±10%
|
≤20Ω
|
50*65
|
50w
|
≥100MΩ
|
||||||
|
OKS-4UCT-3840/80/130
|
38/79/128±2.0
|
4200±10%
|
≤25Ω
|
40*54
|
60w
|
≥100MΩ
|
||||||
|
OKS-4UCT-3840/60/80
|
38/65/84±2.0
|
4800±10%
|
≤25Ω
|
40*54
|
60w
|
≥100MΩ
|
||||||
|
OKS-8UCT-5020/40/60
|
20/40/60±2.0
|
5200±10%
|
≤25Ω
|
78*94
|
120w
|
≥100MΩ
|
||||||
|
OKS-4UCT-3840/100/160
|
38/100/160±2.0
|
4800±10%
|
≤25Ω
|
40*57
|
60w
|
≥100MΩ
|
||||||
|
Screw hole size (diameter * pitch * depth)M10*1.0*10
|
|
|
|
|
|
|
||||||
-
Product performance description
-
产品性能介绍说明

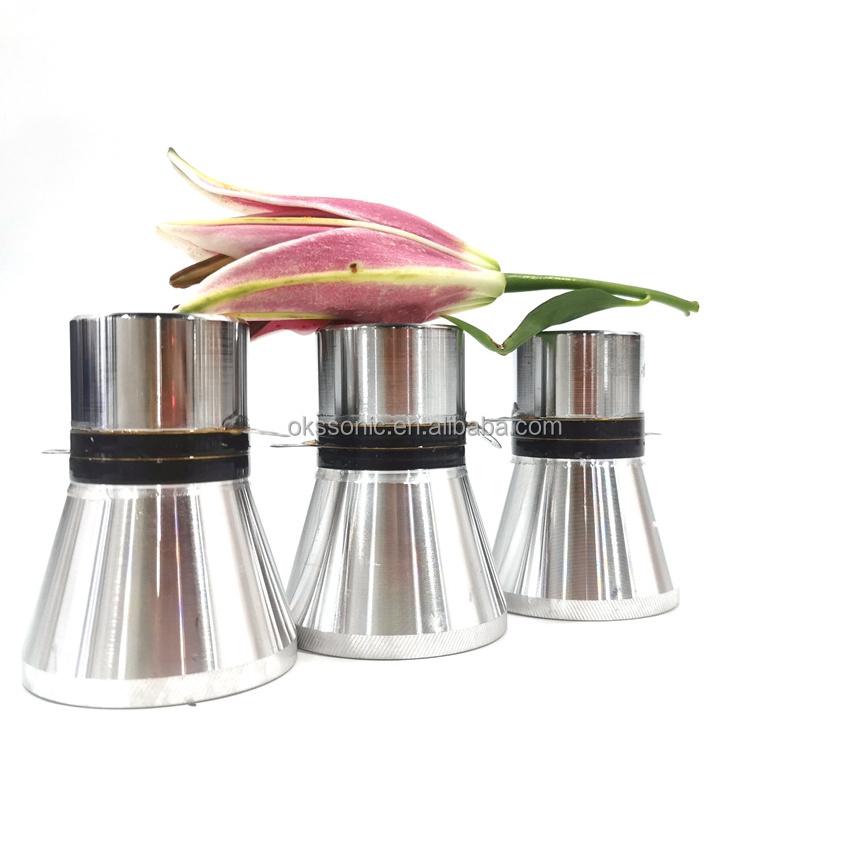

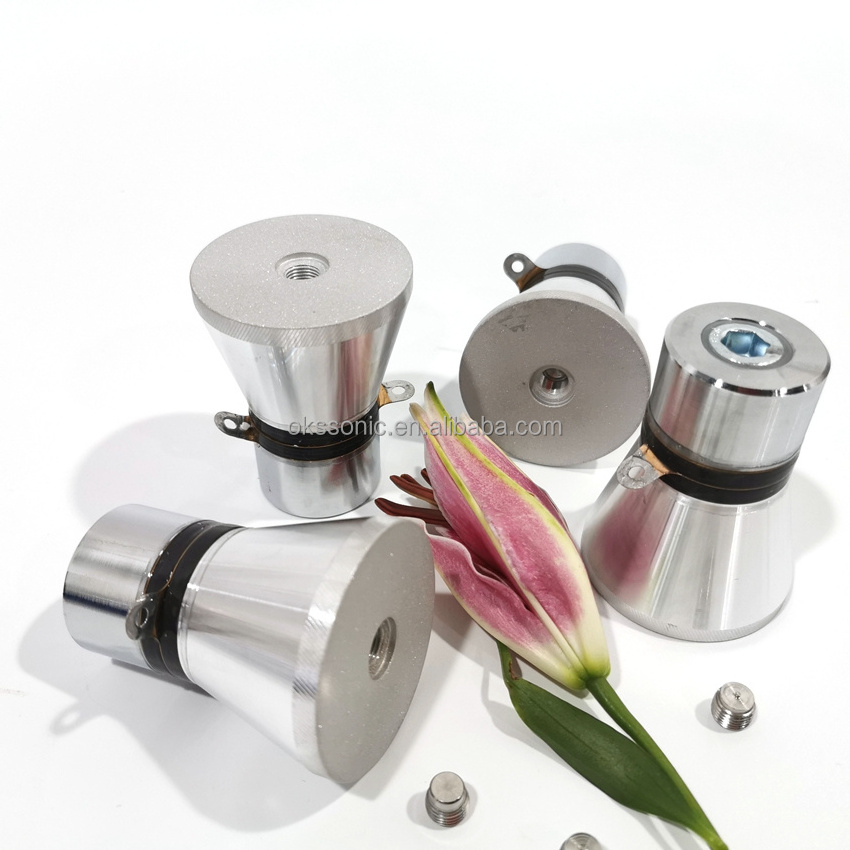

Details Images
Main features of our ultrasonic transducer:
1. Low heat. 2. Good thermal stability. 3. Strong consistency between frequency and
static capacitance. 4. The resonance impedance is low. 5. Long life expectancy. 6. It can be widely used in various ultrasonic
cleaning equipment. 7. High performance: high mechanical Q value, high vibration efficiency 8. High amplitude 9. Complete variety
(17KHZ-200KHZ) to meet different needs
1. Low heat. 2. Good thermal stability. 3. Strong consistency between frequency and
static capacitance. 4. The resonance impedance is low. 5. Long life expectancy. 6. It can be widely used in various ultrasonic
cleaning equipment. 7. High performance: high mechanical Q value, high vibration efficiency 8. High amplitude 9. Complete variety
(17KHZ-200KHZ) to meet different needs
The black piezoelectric ceramic sheet is made of Pzt4 material. This type of piezoelectric material is a medium-power emitting
material with dual characteristics of transmitting and receiving, with low dielectric loss and high mechanical quality factor. It
is mainly used in ultrasonic cleaning and ultrasonic atomization, etc.
material with dual characteristics of transmitting and receiving, with low dielectric loss and high mechanical quality factor. It
is mainly used in ultrasonic cleaning and ultrasonic atomization, etc.
The yellow piezoelectric ceramic sheet is made of Pzt8 material. This type of piezoelectric material is a high-power emitting
material. Its main characteristics are high mechanical quality factor, good stability, and very low dielectric loss. It is
especially suitable for making high-power ultrasonic transducers for transmission. Device. It is widely used in ultrasonic
welding, ultrasonic emulsification, ultrasonic polishing, ultrasonic cleaning, etc.
material. Its main characteristics are high mechanical quality factor, good stability, and very low dielectric loss. It is
especially suitable for making high-power ultrasonic transducers for transmission. Device. It is widely used in ultrasonic
welding, ultrasonic emulsification, ultrasonic polishing, ultrasonic cleaning, etc.
Product Usage
-
-
Product usage introduction
-
Ultrasonic transducer is a piezoelectric ceramic conversion device that converts high-frequency sinusoidal voltage signals into
high-frequency mechanical vibration signals. It is installed on the bottom or side wall of the cleaning tank, and is transmitted
through the tank and acts on the cleaning medium. The vibration signal of the energy device is converted into a cavitation effect,
and the attachment of the object is quickly peeled off to achieve the purpose of cleaning.
high-frequency mechanical vibration signals. It is installed on the bottom or side wall of the cleaning tank, and is transmitted
through the tank and acts on the cleaning medium. The vibration signal of the energy device is converted into a cavitation effect,
and the attachment of the object is quickly peeled off to achieve the purpose of cleaning.
-
Description of product use effect
(1) The cleaning speed is fast, the cleaning effect is good, the cleanliness is high, the cleanliness of the workpiece is
consistent, and there is no damage to the surface of the workpiece. (2) There is no need for human hands to touch the cleaning
fluid, and the deep holes, crevices and hidden parts of the workpiece are also cleaned safely and reliably. (3) Save solvents,
heat, work space, labor, etc. (4) The cleaning precision is high, and it can clean the tiny dirt particles powerfully.
consistent, and there is no damage to the surface of the workpiece. (2) There is no need for human hands to touch the cleaning
fluid, and the deep holes, crevices and hidden parts of the workpiece are also cleaned safely and reliably. (3) Save solvents,
heat, work space, labor, etc. (4) The cleaning precision is high, and it can clean the tiny dirt particles powerfully.
