Quick Details
-
Jacket:
-
PE
-
Place of Origin:
-
Guizhou, China
-
Brand Name:
-
Guda
-
Model Number:
-

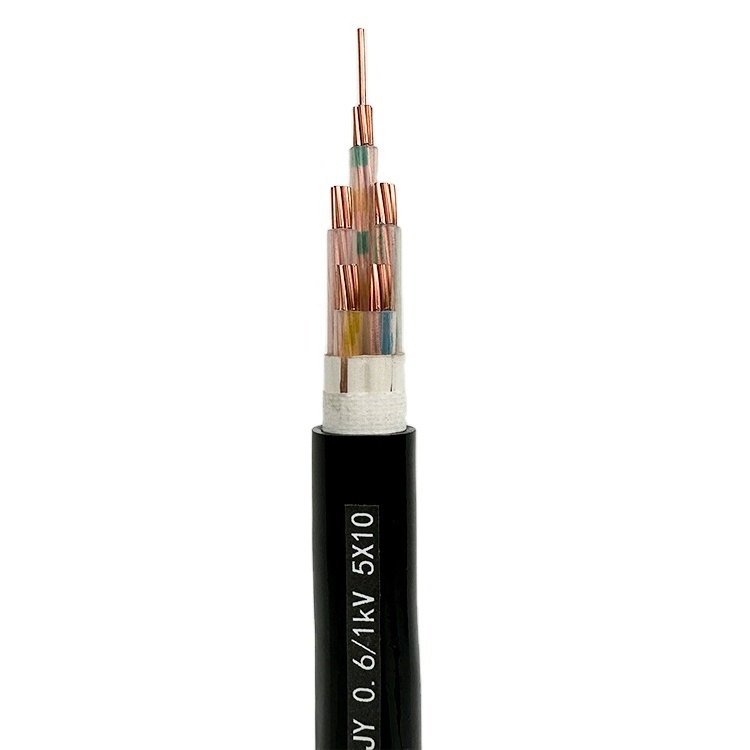

WDZA-YJY 0.6/1kV 5*10mm²
-
Size:
-
5*10mm²
-
Color:
-
Black
-
Conductor type:
-
solid or stranded
-
Rated voltage:
-
0.6/1 KV
-
Number of Cores:
-
5
-
Specification:
-
5*10mm²
-
Package:
-
steel -wooden drum
-
MOQ:
-
500 Meters
-
Sample:
-
free sample, freight charged only
-
Sample packing:
-
bag or box
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Distribution power grid and industrial installations
-
Conductor Material:
-
Copper
-
Jacket:
-
PE
-
Place of Origin:
-
Guizhou, China
-
Brand Name:
-
Guda
-
Model Number:
-
WDZA-YJY 0.6/1kV 5*10mm²
-
Size:
-
5*10mm²
-
Color:
-
Black
-
Conductor type:
-
solid or stranded
-
Rated voltage:
-
0.6/1 KV
-
Number of Cores:
-
5
-
Specification:
-
5*10mm²
-
Package:
-
steel -wooden drum
-
MOQ:
-
500 Meters
-
Sample:
-
free sample, freight charged only
-
Sample packing:
-
bag or box
Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guizhou
|
|
Brand Name
|
Guda
|
|
Model Number
|
WDZA-YJY
|
|
Insulation Material
|
Xlpe
|
|
Type
|
LOW VOLTAGE
|
|
Application
|
Distribution power grid and industrial installations
|
|
Conductor Material
|
Copper
|
|
Jacket
|
PO
|
|
Size
|
5*10mm²
|
|
Color
|
Black
|
|
Conductor type
|
solid or stranded
|
|
Rated voltage
|
0.6/1 KV
|
|
Number of Cores
|
5
|
|
Specification
|
5*10mm²
|
|
Package
|
steel -wooden drum
|
|
MOQ
|
500 Meters
|
|
Sample
|
free sample, freight charged only
|
|
Sample packing
|
bag or box
|
Product Application
Used for fixed installation in distribution networks or industrial devices with a rated power frequency voltage of 0.6/1KV or below.
Product specifications
Number of cores: 1 core, 2 cores, 3 cores, 4 cores, 5 cores, 3+1 cores, 3+2 cores and 4+1 cores.
Common specifications: 1.0mm²，1.5mm²，2.5mm²，4mm²，6mm²，10mm²，16mm²，25mm²，35mm²，50mm²，70mm²，95mm²，120mm²，150mm²，185mm²，240mm²，300mm²，400mm²，500mm²，630mm² etc.
Characteristics
1.The allowable long-term maximum working temperature of cable conductors:
PVC insulated cables
: 70 ℃,
XLPE insulated cables
: 90 ℃.
2.When the cable is short circuited (maximum duration of 5 seconds), the maximum temperature of the conductor shall not exceed:
PVC insulated cable
, sectional area ≤ 300mm² 160 ℃, sectional area ＞300mm² 140 ℃;
XLPE insulated cable
250 ℃.
3.The ambient temperature during laying should not be lower than 0 ℃.
4.The allowable bending radius of the cable is:
Single core cable
: armored type, the bending radius is ≥ 15D during installation, non-armored type, it is ≥ 20D;
Multi-core cable
: armored type, the bending radius is ≥ 12D during installation, non-armored type, it is ≥ 15D;
D is the outer diameter of the cable.
Packing & Delivery
Package
The products are normally packed in steel-wooden drum.
