Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Product Name:
-
WolfMan Quad
-
Engine:
-
125cc air cooled,4 stroke
-
Color:
-
Customized
-
Warranty time:
-
1 year
-
OEM/ODM:
-
Warmly welcome
-
Starting system:
-
CDI Electric Start
-
HS code:
-
8703101100
-
Certification:
-
CE
-
Drive System:
-
Chain Drive 4x2
Quick Details
-
Displacement:
-
125CC
-
Brand Name:
-
ABMOTO, or OEM
-
Tire Size:
-
8'
-
Place of Origin:
-
Zhejiang, China
-
Product Name:
-
WolfMan Quad
-
Engine:
-
125cc air cooled,4 stroke
-
Color:
-
Customized
-
Warranty time:
-
1 year
-
OEM/ODM:
-
Warmly welcome
-
Starting system:
-
CDI Electric Start
-
HS code:
-
8703101100
-
Certification:
-
CE
-
Drive System:
-
Chain Drive 4x2

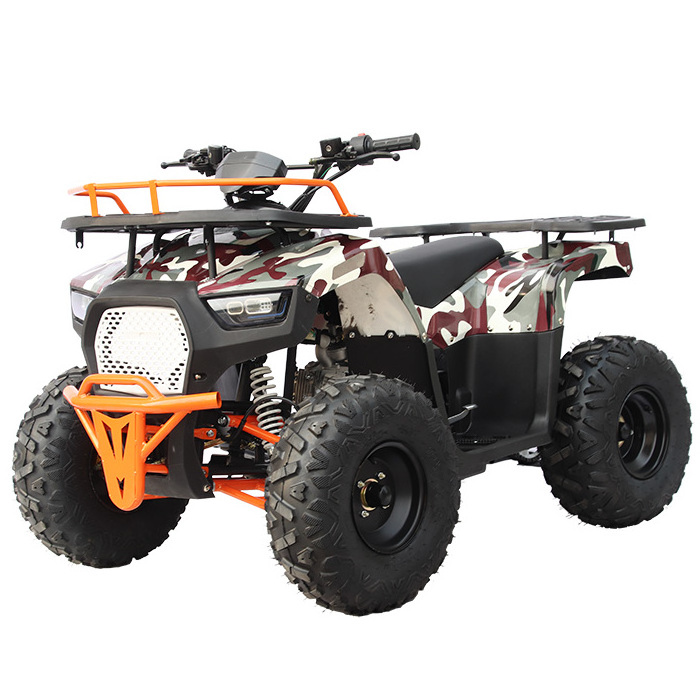

Feature : 125cc engine, 4 stroke, 1 cylinder, 1 forward gear with reverse gear, 8' wheel, front and rear luggage racks, front and rear adjustable oil pressure shock absorbers. With LED headlights.
| Product Name | WolfMan ATV |
| Engine Type | 154FMI, F-N-R, single cylinder, 4 stroke |
| Engine Displacement | 124ml |
| Cooling System | Natural air cooling |
| Bore and Stroke | 52.4x55.5(mm) |
| Compression | 10.0:1 |
| Rated Power/Speed Kw(r/min) | 5.5/7500kw(r/min)±5% |
| Rated Torque/Speed N.m(r/min) | 8.0/5000±5% |
| Minimum idle speed(r/min) | 1500±150 |
| Carburetor Type | Plunger |
| Clutch Type | Automatic wet laminated |
| Spark plug type | A7TC |
| Starting mode | Electric |
| Ignition Type | C.D.I |
| Fuel type | ≥90# |
| Lubrication Type | Pressure splash compound |
| Lubrication brand | 15W/40-SF(summer),10W/30-SF(winter) |
| Battery | 5ah/12v, lead-acid |
| Transmission type | Chain |
| Driving System | Rear wheel drive |
| Steering System | Handle bar |
| Vehicle size (L*W*H) | 1,480*960*990mm |
| Wheelbase | 1,020mm |
| Minimum ground clearance | 100mm |
| Seat height | 690mm |
| Max speed | 60km/h |
| Max load | 120kgs |
| Turning diameter | 5,000mm |
| Gas tank capacity | 3.2L |
| Brake system (F/R) | Hand brake,front and rear hydraulic press disc brake |
| Shock absorber (Front) | Hydraulic press,adjustable spring |
| Shock absorber (Rear) | Hydraulic press,adjustable spring |
| Tyre Type and Sixe(Front/Rear) | 19x7-8'/18x9.5-8' (R8) |
| Tire Pressure | front:165kpa,rear:165kpa |
| Wheel rim | Iron, 4 holes, (or Aluminum wheel rim) |
| Power off switch | Yes |
| Remote control | Option |
| Speedometer | Yes |
| Gear Indicator | Available |
| Fuel meter | No |
| Charger | Option |
| Head light | Yes |
| Tail light | Yes |
| Reflector | Yes |
| Horn | Option |
| GW/NW | 125kgs/110kgs |
| Carton size(L*W*H) | 1,400x830x750mm |
| Container(20FT/40FT/40HQ) | 33PCS/20FT, 66PCS/40FT, 88PCS/40HQ. |
