Friendly operation
One milling step can prepare a reproducible and plain sample surface by air cooling .
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Material Processing
-
Product type:
-
Milling Machine
-
Warranty:
-
1 Year
-
Usage:
-
Lab Application
-
Milling head:
-
Taiwan Milling Head
-
Table size:
-
300*150
-
Spindle travel:
-
80mm
-
Spindle Speed:
-
0-530
-
Dimension:
-
1250*1150*1950
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Lirun
-
After Warranty Service:
-
Video Technical Support
-
Application:
-
Material Processing
-
Product type:
-
Milling Machine
-
Warranty:
-
1 Year
-
Usage:
-
Lab Application
-
Milling head:
-
Taiwan Milling Head
-
Table size:
-
300*150
-
Spindle travel:
-
80mm
-
Spindle Speed:
-
0-530
-
Dimension:
-
1250*1150*1950

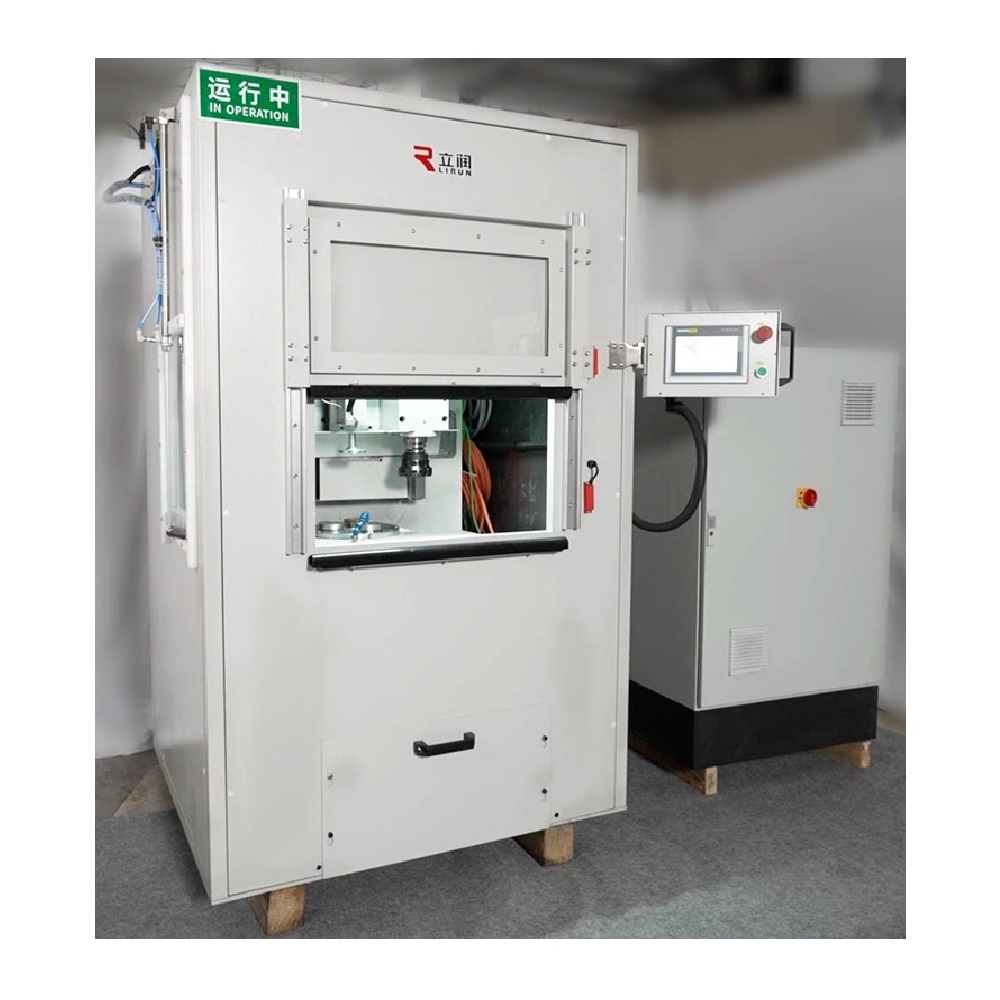

Product Description
Overview
Essential details
|
Model
|
GPX steel-LM
|
Brand Name:
|
Lirun
|
|
Number of Axes:
|
2
|
Usage:
|
Lab sample preparation
|
|
No. of Spindles:
|
1
|
Application:
|
Manufacturing Plant, Lab Use, Precision
|
|
Range of Workpiece Length(mm)
|
32-48
|
Machinery Test Report:
|
Provided
|
|
Range of Workpiece thickness(mm)
|
8-48
|
Warranty:
|
1 Year
|
|
Machining Capacity:
|
Mediun Duty
|
Key Selling Points:
|
High-accuracy ,Long stability
|
|
Spindle Taper:
|
BT40
|
Core Components:
|
Siemens PLC control system, Siemens servo motor，Siemens frequency converter
|
|
Max. Spindle Speed (r.p.m):
|
530 r/min
|
After-sales Service Provided:
|
Field installation, commissioning and training
|
|
Spindle motor speed(r.p.m):
|
1425r/min
|
After Warranty Service:
|
Video technical support, Online support
|
|
Spindle Motor Power(kW):
|
4KW
|
Local Service Location:
|
None
|
|
Control Voltage
|
DC24V
|
Controller:
|
Siemens PLC
|
|
Range of Spindle Speed(r.p.m):
|
0-530r/min
|
Voltage:
|
380V
|
|
Table Travel (X) (mm):
|
300
|
Positioning Accuracy (mm):
|
0.01
|
|
Table Travel (Z) (mm):
|
150
|
Dimension(L*W*H):
|
1250*1150*1950
|
|
Table Travel (mm):
|
300
|
Weight (KG):
|
1800kg
|
Product Details
Parameter Adjustment
Parameters can be adjusted according to cutting requirements, and up to 20 milling programs can be set.
Both Manual And Automatic Design
Can be connected to the automation system as an option
Simple and Convenient
Simple and fast exchange the milling head by quick-release
Sample Shapes
It can mill samples of various sizes and shapes
