Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HERO BRAND
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
2000
-
Weight:
-
5000 kg
-
Marketing Type:
-
Hot Product 2021
-
Application:
-
a4 paper cutting and packing machine
-
Name:
-
QFJ-H1600
-
Speed:
-
200m/min
-
Function:
-
slitting paper
-
Certification:
-
CE
-
Keyword:
-
paper processing machinery
-
After Warranty Service:
-
Field maintenance and repair service
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
200m/min
-
Max. workable width:
-
1000mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HERO BRAND
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
2000
-
Weight:
-
5000 kg
-
Marketing Type:
-
Hot Product 2021
-
Application:
-
a4 paper cutting and packing machine
-
Name:
-
QFJ-H1600
-
Speed:
-
200m/min
-
Function:
-
slitting paper
-
Certification:
-
CE
-
Keyword:
-
paper processing machinery
-
After Warranty Service:
-
Field maintenance and repair service
bopp pvc film non woven kraft thermal paper roll label slitting machine cortadora de papel paper processing machinery
Products Description
Brief Introduction

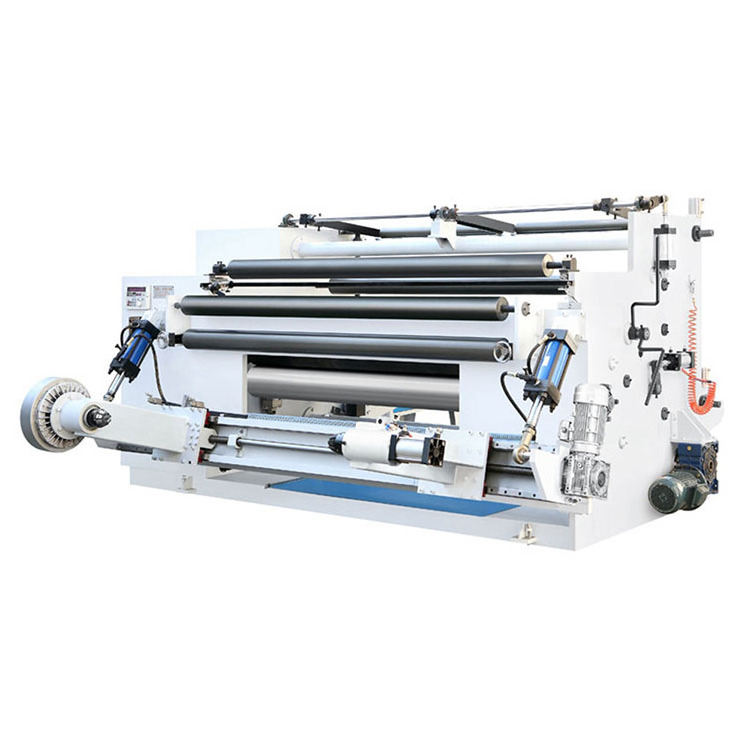

The slitting machine is mainly used to cut a large roll of paper, film, non-woven fabric,aluminum foil, mica tape and other thin materials into small rolls of different widths before and after printing. It also has the function of checking product quality.
Main Features
1. Air shaft for unwinding, it is much convenient to change shaft and centering correctly.
2. Magnetic powder brake unwind,automatic constant tension.
3. Unwind shaft is installed in the rolling bearing to reduce the mechanical resistance to minimum.
4.Error correction system takes automatic photoelectric tracking method.
Main Technical Parameter
1.Suitable Slitting Materials: BOPP/PET/PVC/Paper/Complex Film/Laminated Aluminum Film
2.Thickness of Material :0.012~0.15mm
3.Max. Mechanical Speed: 180m/min
4. Max. Slitting and Rewinding Speed: 160m/min
4. Max. Slitting and Rewinding Speed: 160m/min
|
Type
|
HRFQ-700A
|
HRFQ-1100A
|
HRFQ-1300A
|
|
Max.Width of Mother Roll
|
700mm
|
1100mm
|
1300mm
|
|
MAX.Diameter of Mother Roll
|
Φ600mm
|
Φ600mm
|
Φ600mm
|
|
Width of Final Roll
|
30-600mm
|
30-600mm
|
30-600mm
|
|
Slitting and
Rewinging Speed |
5-160m/min
|
5-160m/min
|
5-160m/min
|
|
Tolerance of EPC
|
<±0.5mm
|
<±0.5mm
|
<±0.5mm
|
|
Total Power
|
2.7kw
|
3.5kw
|
3.5kw
|
|
Weight of Machine
|
1200kg
|
1500kg
|
1800kg
|
|
Overall Dimension
|
2000×1110×1400mm
|
2400×1110×1400mm
|
2600×1110×1400mm
|
The above specifications are not all, we accept your customization
Details Images
We provide you with a complete plastic product production line
