Quick Details
-
Material:
-
Cold rolled steel, Cold rolled steel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Xiong Feng
-
Model Number:
-
XF-190
-
Usage:
-
Cabinet & Furniture
-
Product name:
-

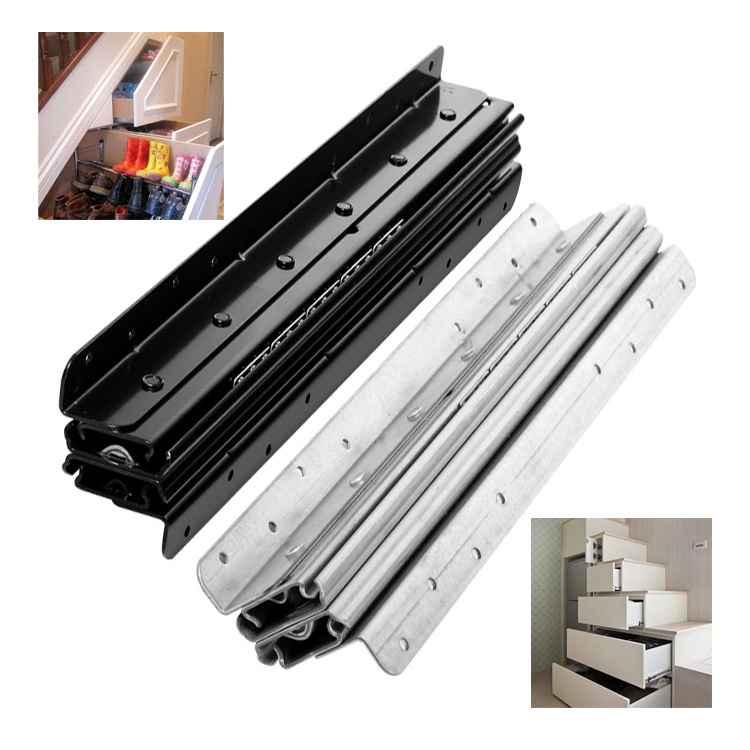

Stair cabinet slide
-
Color:
-
Balck White
-
Size:
-
40-70/40-90/60-110/40-145/80-150/80-185/100-190/100-225 cm
-
Installation:
-
Bottom-mounted
-
Load capacity:
-
260lb/120kg (per pair)
-
Function:
-
expand storage, save space
-
Open mode:
-
full stretch
-
Package:
-
2pcs/pair,scratch-resistant packaging
Quick Details
-
Application:
-
Home Office, Apartment
-
Design Style:
-
Modern
-
Type:
-
Cabinet Fitting
-
Material:
-
Cold rolled steel, Cold rolled steel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Xiong Feng
-
Model Number:
-
XF-190
-
Usage:
-
Cabinet & Furniture
-
Product name:
-
Stair cabinet slide
-
Color:
-
Balck White
-
Size:
-
40-70/40-90/60-110/40-145/80-150/80-185/100-190/100-225 cm
-
Installation:
-
Bottom-mounted
-
Load capacity:
-
260lb/120kg (per pair)
-
Function:
-
expand storage, save space
-
Open mode:
-
full stretch
-
Package:
-
2pcs/pair,scratch-resistant packaging
Product Size
|
Size Chart
|
|
|
|
|||
|
Model
|
Unstretched length
|
Stretched length
|
Total length
|
|||
|
400-700mm
|
400mm
|
300mm
|
700mm
|
|||
|
400-900mm
|
400mm
|
500mm
|
900mm
|
|||
|
600-1100mm
|
600mm
|
500mm
|
1100mm
|
|||
|
400-1450mm
|
600mm
|
850mm
|
1450mm
|
|||
|
800-1500mm
|
800mm
|
700mm
|
1500mm
|
|||
|
800-1850mm
|
800mm
|
1050mm
|
1850mm
|
|||
|
1000-1900mm
|
1000mm
|
900mm
|
1900mm
|
|||
|
1000-2250mm
|
1000mm
|
1250mm
|
2250mm
|
|||
【Installation suggestion】
1: The reserved height of the cabinet and the bottom plate is 53.8MM
2: The width of the installation cabinet is usually 30-60CM
3: The depth of the staircase is greater than the length of the slide rail before it can be installed
4: The maximum load of the slide rail is 120KG
5: As long as it does not exceed 120KG, the width of the cabinet is not limited
1: The reserved height of the cabinet and the bottom plate is 53.8MM
2: The width of the installation cabinet is usually 30-60CM
3: The depth of the staircase is greater than the length of the slide rail before it can be installed
4: The maximum load of the slide rail is 120KG
5: As long as it does not exceed 120KG, the width of the cabinet is not limited
