- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ZBREHON
-
Model Number:
-
ZB-FR-0319
-
Surface Treatment:
-
Smooth Surface
-
Product name:
-

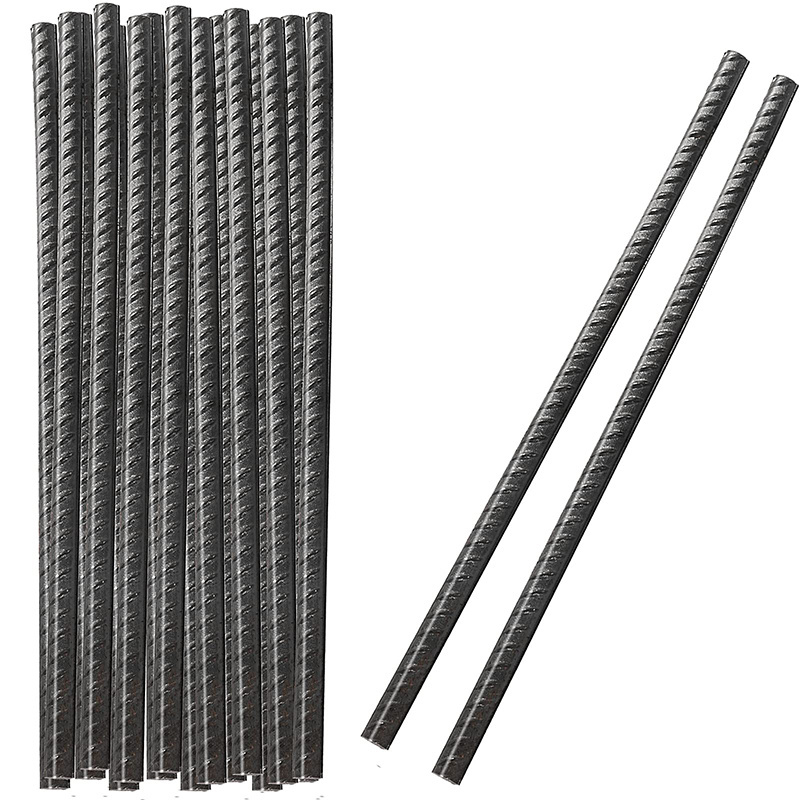

Excellent Fiberglass Gfrp Rebar for Construction
-
Shape:
-
Customized Shape
-
Density:
-
2.1-2.2g/cm3
-
Tensile Strength:
-
509MPa-1900MPa
Quick Details
-
Application:
-
construction building material
-
Technique:
-
Pultrusion Process
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
ZBREHON
-
Model Number:
-
ZB-FR-0319
-
Surface Treatment:
-
Smooth Surface
-
Product name:
-
Excellent Fiberglass Gfrp Rebar for Construction
-
Shape:
-
Customized Shape
-
Density:
-
2.1-2.2g/cm3
-
Tensile Strength:
-
509MPa-1900MPa
Why Choose Us
Product details
|
Product Name
|
Fiberglass reinforced polymer, Fiberglass rebar, GFRP
|
|
Material
|
Glass fiber yarn and Epoxy
|
|
Diameter
|
3mm--40mm
|
|
Colour
|
Customer defined
|
|
Length
|
Customer defined
|
|
Application
|
Civil construction
|
|
Ultimate share strength
|
More than 150Mpa
|
|
Modulus
|
40Gpa
|
Products Description
Product paramenters
|
Specification
|
Ф8
|
Ф10
|
Ф12
|
Ф16
|
Ф20
|
Ф25
|
Ф30
|
Ф32
|
Ф36
|
||||||||
|
Exterior
|
Uniform texture, No bubbles, No cracks, Thread shape, Toot pitch should be neat, There should be no damage.
|
|
|
|
|
|
|
|
|
||||||||
|
Rod diameter(mm)
|
8
|
10
|
12
|
16
|
20
|
25
|
30
|
32
|
36
|
||||||||
|
Tensile strength(MPa)
|
≥600
|
|
|
≥550
|
|
≥550
|
|
|
|
||||||||
|
Ultimate tensile strain(%)
|
≥1.2
|
≥1.2
|
≥1.2
|
≥1.2
|
≥1.2
|
≥1.2
|
≥1.2
|
≥1.2
|
≥1.2
|
||||||||
|
Elastic modulus(GPa)
|
≥40
|
≥40
|
≥40
|
≥40
|
≥40
|
≥40
|
≥40
|
≥40
|
≥40
|
||||||||
|
Direct deviation(mm)
|
±0.2
|
|
|
|
±0.3
|
|
±0.4
|
|
|
||||||||
|
Straightness(mm/m)
|
≤3
|
|
|
|
≤4
|
|
≤5
|
|
|
||||||||
|
Reference weight(kg/m)
|
0.1
|
0.15
|
0.21
|
0.32
|
0.55
|
0.95
|
1.36
|
1.51
|
1.91
|
||||||||
Applications
1. It can be widely used in subway tunnels (shield tunneling), highways, bridges, airports, docks, stations, water conservancy projects, underground projects and other fields.
3. Suitable for military engineering, confidential engineering, special engineering and other environments that require
insulation and demagnetization
2. Suitable for corrosive environments such as sewage treatment plants, chemical plants, electrolyzers, manhole covers, coastal defense projects, etc.
3. Suitable for military engineering, confidential engineering, special engineering and other environments that require
insulation and demagnetization
