Quick Details
-
Weight (KG):
-
2000 KG
-
Power (kW):
-
3kw
-
Name:
-
Best EURO pallet nailing machine in China
-
Function:
-
Nailing and stacking
-
Operation mode:
-
Touch screen control
-
Operation mode::
-
Touch screen control
-
Production efficiency::
-
3tray/minute
-
Air tank volume::
-
0.2M3
-
Runing mode::
-
Pneumatic Operation
-
Nail gun speed::
-
7 time/seconds
-
Keywords:
-
wood Pallet Assembly Machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gashili
-
Machine Type:
-
automatic wood pallet nailing machine
-
Weight (KG):
-
2000 KG
-
Power (kW):
-
3kw
-
Name:
-
Best EURO pallet nailing machine in China
-
Function:
-
Nailing and stacking
-
Operation mode:
-
Touch screen control
-
Operation mode::
-
Touch screen control
-
Production efficiency::
-
3tray/minute
-
Air tank volume::
-
0.2M3
-
Runing mode::
-
Pneumatic Operation
-
Nail gun speed::
-
7 time/seconds
-
Keywords:
-
wood Pallet Assembly Machine
Product Description

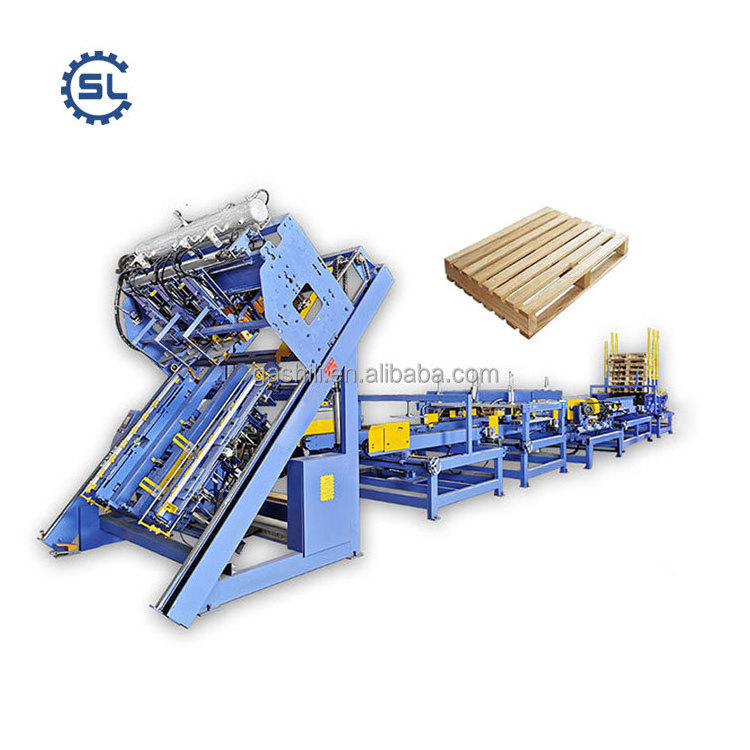

Best EURO pallet nailing machine in China
Automatic wood pallet nailing machine includes the nailing part and stacking part, it is mainly used to nail the wood bars and block feet together, worker just put wood bars on the support frame, it can nail it automatically , then lift the finished wood pallet to the stacking part. The stacking machine can stack the wood pallets layer by layer.
Specification
|
1
|
Pallet type
|
European standard pallet, whole board pallet
|
|
2
|
Nail gun
|
4 pcs
|
|
3
|
Air pressure
|
0.8MPA
|
|
4
|
Nail gun speed
|
7 times /second.
|
|
5
|
Motor power
|
1.5kw Servo motor
|
|
6
|
Collecting pallet
|
Automatic stacking (hydraulic, pneumatic)
|
|
7
|
Voltage
|
380V
|
|
8
|
Operation mode
|
Touch screen control
|
|
9
|
Production mode
|
Manual feeding/automatic nailing/automatic stacking
|
|
10
|
Processing range
|
800-1300mm adjustable
|
|
11
|
Dimension
|
Nailing：2500*2200*2400mm
Stacking ：2600*2100*1800mm |
FAQ
To start, please confirme
1. which pallet type you do ? Can you picture of the required pallet type?
2. Need the wood pallet nailing stacking machine or just the nailing part?
