- Product Details
- {{item.text}}
Quick Details
-

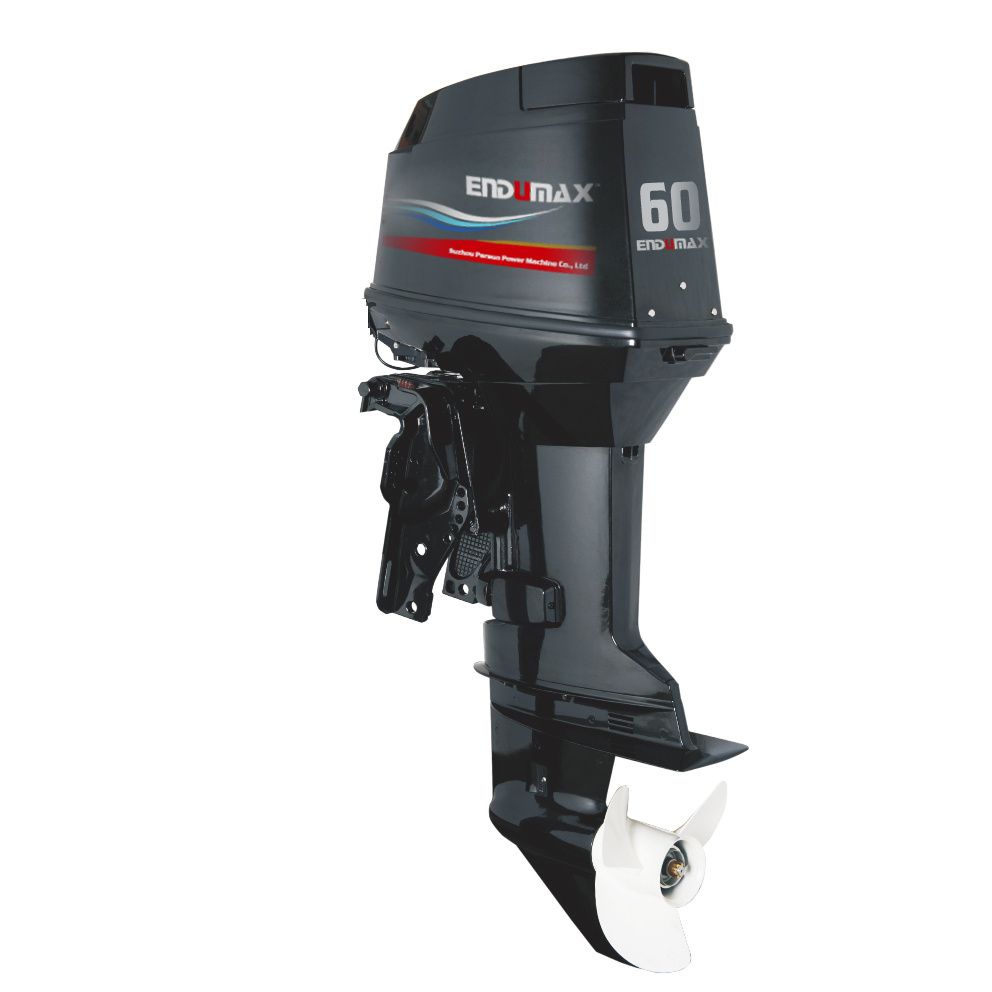

Model:
-
T60AFWL-T
-
COLOR:
-
BLACK/GREY
-
Engine type:
-
2-stroke
-
Starting system:
-
Electric start
-
Control System:
-
Remote control
-
Bore X Stroke mm(in.):
-
72.0x69.5(2.8x2.7)
-
Displacement:
-
849cm3
Quick Details
-
Brand Name:
-
ENDUMAX
-
Model Number:
-
T60AFWL-T
-
Place of Origin:
-
Jiangsu, China
-
Model:
-
T60AFWL-T
-
COLOR:
-
BLACK/GREY
-
Engine type:
-
2-stroke
-
Starting system:
-
Electric start
-
Control System:
-
Remote control
-
Bore X Stroke mm(in.):
-
72.0x69.5(2.8x2.7)
-
Displacement:
-
849cm3
| ITEM | Unit | T60AFWL-T | |
| Overall length | mm(in.) | 713(28.1) | |
| Overall width | mm(in.) | 364(14.3) | |
| Overall height | mm(in.) | 1479(58.2) | |
| Transom height | mm(in.) | 508(20.0) | |
| Weight | kg | 107 | |
| Full throttle operating range | r/min | 4500~5500 | |
| Maximum output | KW(HP)@r/min | 44.1(60)@5000 | |
| Idling speed(Neutral) | r/min | 950~1050 | |
| Engine type | Reed valve | ||
| Cylinders | L3 | ||
| Displacement | cc | 849 | |
| Bore × stroke | mm(in) | 72.0×69.5(2.8×2.7) | |
| Ignition system | CDI | ||
| Control system | Remote control | ||
| Starting system | Electric start | ||
| Gear positions | Forward-Neutral-Reverse | ||
| Gear ratio | 2.33(28/12) | ||
| Trim and tilt system | Electric tilt | ||
| Fuel tank capacity | L | 24 | |
| Maximum fuel consumption | L/h | 25.5 | |
| Mixing ratio | Fuel:Oil | 50:1 | |
| Gear oil capacity | cm 3 | 610 | |
| Propeller options * | in | 3-13 1 / 4 "×17"or 3-13 ½"×15" or 3-13 5/8"x13" | |
