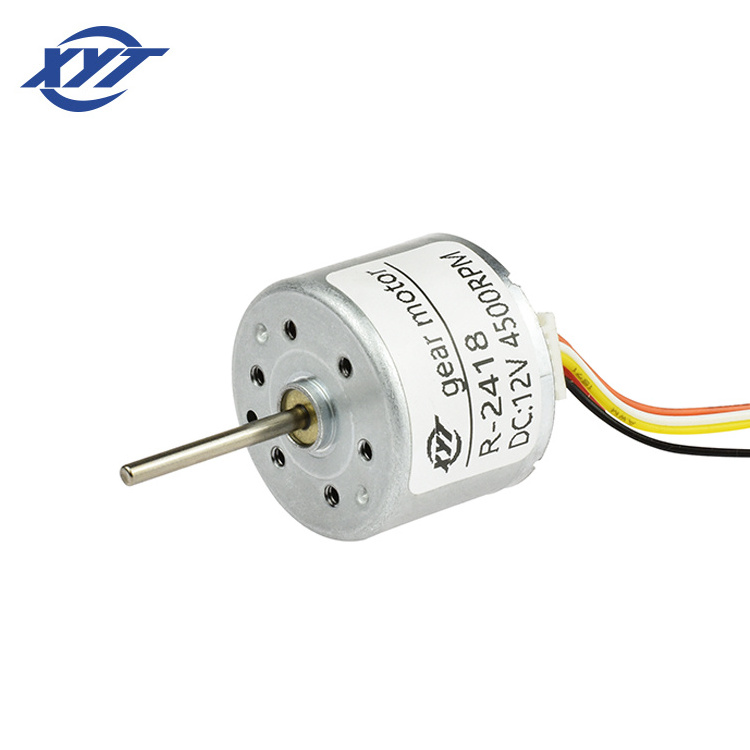

Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XYT
-
Model Number:
-
JGA25-2418
-
Torque:
-
16kg.cm
-
Protective function:
-
Completely closed
-
Motor Diameter:
-
32mm
-
Motor Body Length:
-
88.8mm
-
Output Shaft Diameter:
-
6mm(D-Type)
-
Output Shaft Length:
-
12mm
-
Certification:
-
ce, RoHS
Quick Details
-
Speed(RPM):
-
8.5 to 1977 Rpm/Min
-
Continuous Current(A):
-
0.45A-0.8A
-
Efficiency:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XYT
-
Model Number:
-
JGA25-2418
-
Torque:
-
16kg.cm
-
Protective function:
-
Completely closed
-
Motor Diameter:
-
32mm
-
Motor Body Length:
-
88.8mm
-
Output Shaft Diameter:
-
6mm(D-Type)
-
Output Shaft Length:
-
12mm
-
Certification:
-
ce, RoHS
Product Description
Specification:
Voltage:DC12V
No-load Speed:1000rpm,450rpm,210rpm,130rpm,100rpm,58rpm,45rpm,26rpm,20rpm,12rpm,9rpm
Voltage:DC24V
No-load Speed:2000rpm,930rpm,420rpm,260rpm,200rpm,115rpm,90rpm,52rpm,40rpm,24rpm,18rpm
Motor Features: low noise,long life,adjustable speed,with brake, with speed feedback signal
Motor Diameter: about 25mm
Motor Body Length: 18mm
Output Shaft Diameter: 4mm(D-Type)
Output Shaft Length: 9.5mm
Gearbox Length: see the table
PIN:
PIN 1 - PWM adjustable speed
PIN 2 - negative power supply (-)
PIN 3 - CCW or CW
PIN 4 - feedback signal (n=60*F/P),F is the feedback output frequency, P is the number of pole pairs: 6 pairs
PIN 5 - positive power supply (+)
Wire Connection Method:
CCW: Red line is connected to positive power supply (+), black and white lines are connected to negative power supply (-)
CW: Red line is connected to positive power supply (+), black, white and blue lines are connected to negative power supply (-)
white line is connected to negative power supply (-),the motor running is at the limit.When the white line separate connection PWM, the motor speed can be adjusted.
