Quick Details
-
Mounting Type:
-
Ceiling Surface Mounted
-
Description:
-
ceiling motion sensor switch, 360 Degree Motion Sensor
-
Model Number:
-
RZ036-10A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayzeek
-
Theory:
-
Pir Motion Sensor
-
Output:
-
100V-265V
-
Detection Range:
-
360°
-
Power Source:
-
100 VAC ~ 265 VAC
-
Sensor Mode:
-
occupancy, vacancy, on-off
-
Time-Delay:
-
15s, 30s, 1min, 3min, 5min, 15min, 30min
-
Light Sensor:
-
Off, 15 Lux, 25 Lux (default), 35 Lux
-
Sensor Sensitivity:
-
Low sensitivity, High sensitivity
-
Power Frequency:
-
50 / 60Hz
-
Installation Height:
-
2.6 m ~ 3.5 m
-
Detection Distance:
-
12 m ~ 18 m (<27℃)
-
Working Temperature:
-
-10 ~ +40℃
Quick Details
-
Usage:
-
ON/OFF Switch for Light
-
Series:
-
ceiling motion sensor switch
-
Features:
-
ceiling motion sensor switch
-
Mounting Type:
-
Ceiling Surface Mounted
-
Description:
-
ceiling motion sensor switch, 360 Degree Motion Sensor
-
Model Number:
-
RZ036-10A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayzeek
-
Theory:
-
Pir Motion Sensor
-
Output:
-
100V-265V
-
Detection Range:
-
360°
-
Power Source:
-
100 VAC ~ 265 VAC
-
Sensor Mode:
-
occupancy, vacancy, on-off
-
Time-Delay:
-
15s, 30s, 1min, 3min, 5min, 15min, 30min
-
Light Sensor:
-
Off, 15 Lux, 25 Lux (default), 35 Lux
-
Sensor Sensitivity:
-
Low sensitivity, High sensitivity
-
Power Frequency:
-
50 / 60Hz
-
Installation Height:
-
2.6 m ~ 3.5 m
-
Detection Distance:
-
12 m ~ 18 m (<27℃)
-
Working Temperature:
-
-10 ~ +40℃
Products Description
|
Item No.:
|
RZ036-10A
|
|
Product Type
|

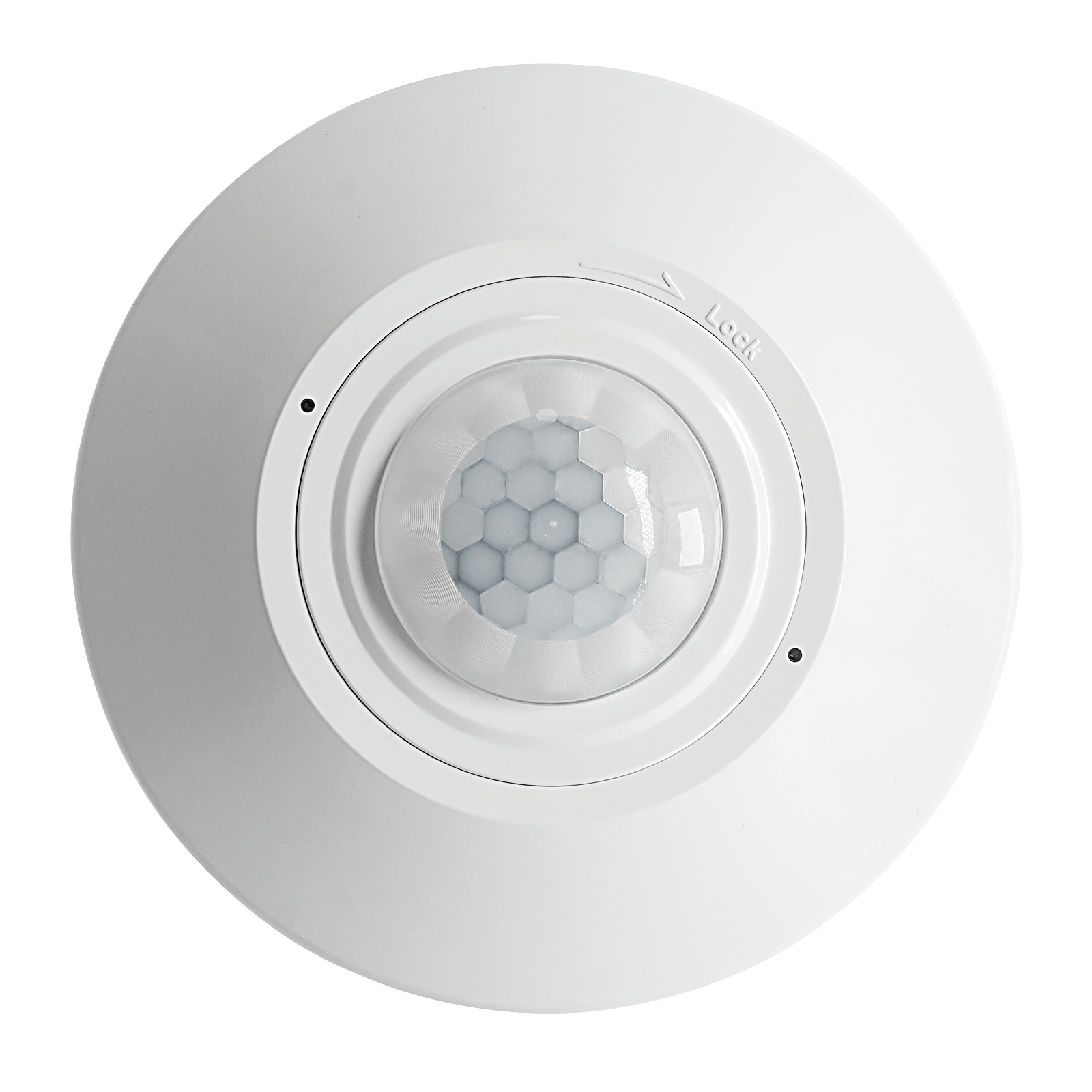

ceiling mounted 360 degree motion sensor switch for light control
|
|
Input Voltage
|
100VAC~265VAC
|
|
Output Voltage
|
Same as input voltage
|
|
Load current
|
≤10A
|
|
Installation Height
|
2.5~3.5M
|
|
Detection Range
|
360°
|
|
Detection Diameter
|
8~12M (<27 degree centigrade)
|
|
Detection Speed
|
0.6~1.5m/s
|
|
Rated load for incandescent or halogen
|
500W/110VAC, 1100W/220VAC
|
|
Rated load for fluorescent or ballast
|
250W/110VAC, 500W/220VAC
|
|
Sensitivity
|
High, low sensitivity adjustable.
|
|
Time Delay
|
1min. 15s, 30s, 3min, 5min, 10min, 30min adjustable.
|
|
Light Sensor
|
25Lux. Off, 15lux, 35lux optional.
|
|
Working Humidity
|
<90%RH
|
|
Working Temperature
|
'-10°C~40°C
|
