Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
SUNPORT
-
Model Number:
-
380-400W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1840*1040*2.8mm
-
Product name:
-
Flexible 380-400W
-
Material:
-
Mono-crystalline Silicon
-
Solar cell:
-
166*83mm
-
Frame:
-
PPO(Corner Protector)
-
Encapsulant:
-
POE
-
OEM:
-
Acceptable
-
Application:
-
Solar energy system
-
Weight:
-
10.0KG
-
Efficiency:
-
19.9-20.9%
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
Quick Details
-
Cell size:
-
166mmx83mm
-
Type:
-
PERC, Flexible
-
Panel Efficiency:
-
19.9-20.9%
-
Warranty:
-
25 years
-
Brand Name:
-
SUNPORT
-
Model Number:
-
380-400W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1840*1040*2.8mm
-
Product name:
-
Flexible 380-400W
-
Material:
-
Mono-crystalline Silicon
-
Solar cell:
-
166*83mm
-
Frame:
-
PPO(Corner Protector)
-
Encapsulant:
-
POE
-
OEM:
-
Acceptable
-
Application:
-
Solar energy system
-
Weight:
-
10.0KG
-
Efficiency:
-
19.9-20.9%
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
Product Description
|

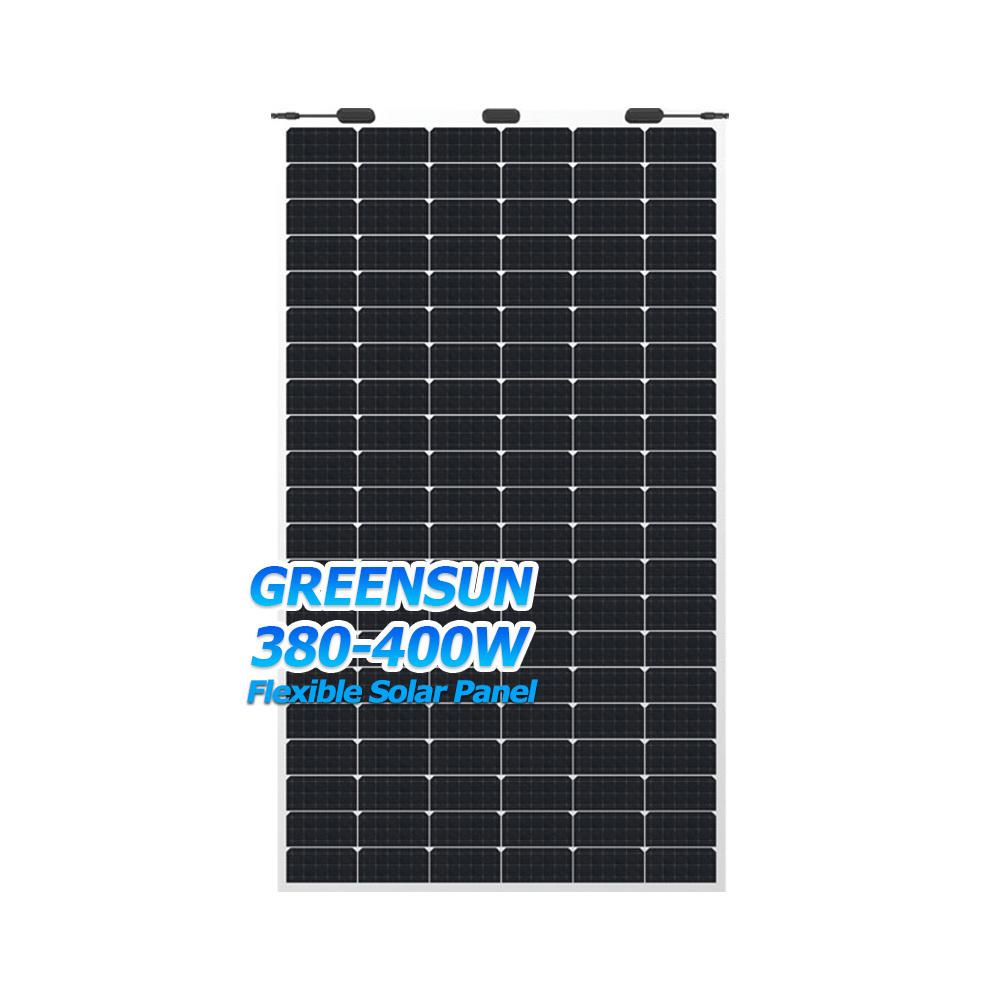

Flexible Solar Panel SPP380-400QHET
|
|
|
|
|
||||
|
Model
|
SPP380QHET
|
SPP385QHET
|
SPP390QHET
|
SPP400QHET
|
||||
|
Rated Maximum Power(Pmax) [W]
|
380W
|
385W
|
390W
|
400W
|
||||
|
Maximum Power Voltage(Vmp) [V]
|
35.5V
|
35.7V
|
35.9V
|
36.3V
|
||||
|
Maximum Power Current(Imp) [A]
|
10.7A
|
10.78A
|
10.86A
|
11.02A
|
||||
|
Open Circuit Voltage(Voc) [V]
|
43.0V
|
43.2V
|
43.4V
|
43.8V
|
||||
|
Short Circuit Current(Isc) [A]
|
11.30A
|
11.35A
|
11.40A
|
11.50A
|
||||
|
Module Efficiency [%]
|
19.9
|
20.1
|
20.4
|
20.9
|
||||
|
Power Tolerance
|
0~+5W
|
|
|
|
||||
|
STC
|
STC: AM=1.5， Irradiation 1000W/m²， Module Temperature 25℃ Power Tolerance ±3%
|
|
|
|
||||
Our Factory
Greensun Solar Energy Tech. Co., Limited is a professional, fast growing company. Greensun Solar is well known as a world leading manufacturer of cost-effective, high efficiency and good quality photovoltaic panel, storage battery, and complete solar energy system for residential and C&I application.
Greensun Solar founded in 2004, is headquartered in Hefei, Anhui China. Our factory covers 90,000 square meters area and has more than 2,000 employees. Greensun Solar has 15years experience in solar industry and is dedicated to research and development, production innovation and strict quality control management.
We aim to manufacture and provide reliable and innovated solar panel and solar energy solutions to the world.
Product Packaging
|
Container
|
40HQ Container
|
|
|
|
PCS/Pallet
|
100
|
|
|
|
PCS/Container
|
1800
|
|
|
Packing:
Packing Method: Customized Wooden&Carton with Pallet(offer 100% protection during transportation)
Transport:
Accodring to your products quantity and requirement , we will choose Security and Economical transportation for you .
Including Sea transportation ,Air transportation , Land transportation and Express .
Including Sea transportation ,Air transportation , Land transportation and Express .
