Bifa Climbing Wall Stair Skirt PU Elevator Lifting Belt Conveyor for food feeder processing

Bifa Climbing Wall Stair Skirt PU Elevator Lifting Belt Conveyor for food feeder processing

FOB Reference Price: Get Latest Price

≥1 Sets

US $1099

≥10 Sets

US $1079

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Bifa

Voltage:: Variable, Variable

Dimension(L*W*H):: Variable

Marketing Type:: New Product 2023

Weight (KG):: 200 kg

Deminsion:: Variable

Application:: Conveying

Keyword:: Low Cost Screw Conveyor

Name:: Belt Conveyer

Belt material:: PVC PU Rubber Steel Rubber

Transport Package:: Wood Box

Quick Details

Power:: customized

Warranty:: 1 Year

Width or Diameter:: customized

Place of Origin:: Guangdong, China

Brand Name:: Bifa

Voltage:: Variable, Variable

Dimension(L*W*H):: Variable

Marketing Type:: New Product 2023

Weight (KG):: 200 kg

Deminsion:: Variable

Application:: Conveying

Keyword:: Low Cost Screw Conveyor

Name:: Belt Conveyer

Belt material:: PVC PU Rubber Steel Rubber

Transport Package:: Wood Box

For factory,we provided complete conveying solution,

For equipment, we provided perfect adaptation solution.

For countries that have signed the RCEP agreement ( Australia, Malaysia, New Zealand, Philippines, Singapore, South Korea,Thailand,Cambodia, Indonesia, Japan ): we can provide a certificate of origin for your company's tax refund.

ABOUT PRODUCTS

What is inclined/slide conveyor systems？

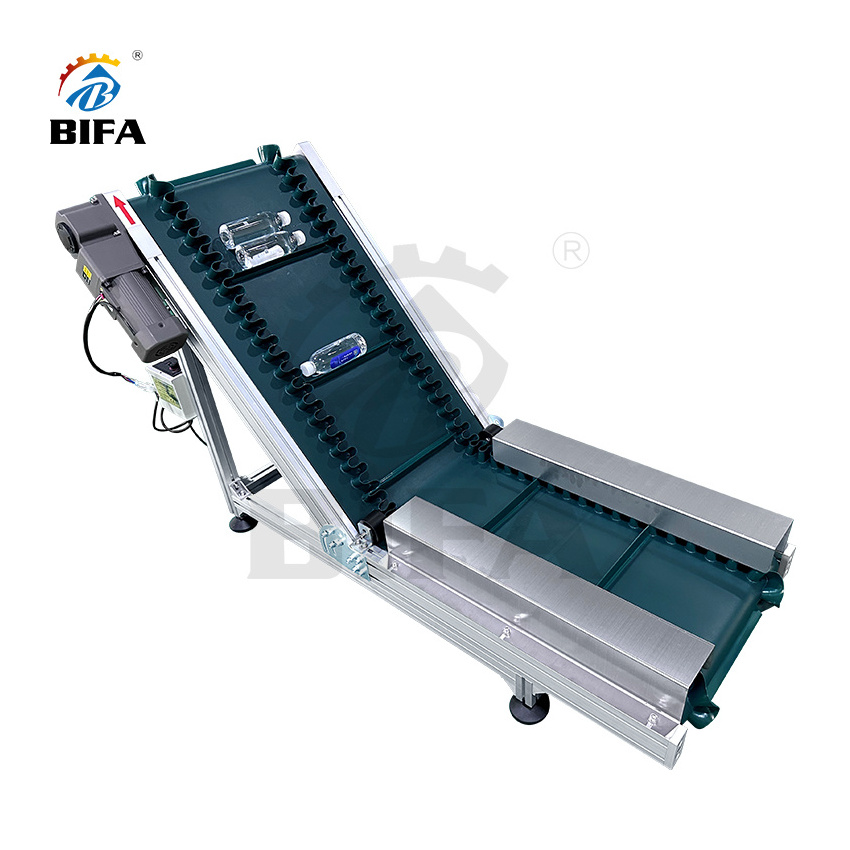

1. The inclined conveyor is continuous conveying equipment for bulk material; it uses a belt with a corrugated raised edge and a transverse diaphragm, making it particularly ideal for large transmission angles.

2. Corrugated belt conveyor transports all types of material with densities ranging from 0.5 to 2.5 t/m3 at temperatures ranging from 19 to 40 degrees Celsius.

Elevating Conveyor Type Options

R-type

Running direction： decline/incline

C-type

Running direction： incline

Z-type

Running direction： incline

Conveyor belt

Selected wear-resistant and anti-static PVC belt, providing smooth transmission. This texture can keep off the conveyor from corrosion and rust.
*Different materials can be configured as required

Heavy Duty Stainless Steel

Made of all stainless steel, it has higher durability and stability to keep off corrosion and rust. In addition, this belt
conveyor can withstand harsh environments and weather, which is more convenient to use.
*Different materials can be configured as required

Flexible and Mobile

The height required for rising and falling can be adjusted, and the operation is simple, convenient and practical

CUSTOMIZED CASE

PVC C-Type Conveyor

Running direction：up（incline）

Power:0.18kw

Max.load:<=25kg

Speed:3-8/min

Stainless Steel Slat Conveyor（chip conveyor）

Running direction：up（incline）

Power:0.55kw
Max.load:<=50kg
Speed:3-8m/min

Z-type Belt Conveyor With Hopper

Running direction：up（incline）

Lift height：2300mm
Power:0.37kw
Max.load:<=25kg
Speed:3-8/min

Z-type Belt Conveyor With Cover

Running direction：up（incline）

Lift height：2300mm
Power:0.37kw
Max.load:<=25kg
Speed:3-8/min

Request/Order : We require the following information to design your solution
Product Properties	1. Product dimensions (LxWxH)
		2. Product weight
		3. Surface properties (smooth, sharp-edged, soft,hard, etc.)
Operating Properties	1. Conveyor speed ([m/min]; [piece/min])
		2. Are the products accumulated?
		3. Cycle operation [start-stop/h]
		4. Process environment (hot, cold, dry, wet, dusty, dirty, etc.)
Conveyor System Data	Track layout Upper edge of belt conveyor (floor supports, wall brackets, ceiling suspension) Transitions (product transfer or discharge) Control technology
Operating Temperature	can be continuously operated in a temperature range between -20° C and +60° C. It can also be briefly operated in temperatures of up to 100° C, e.g. for cleaning and rinsing.
