Quick Details
-
Place of Origin:
-
Japan
-
Product Name:
-

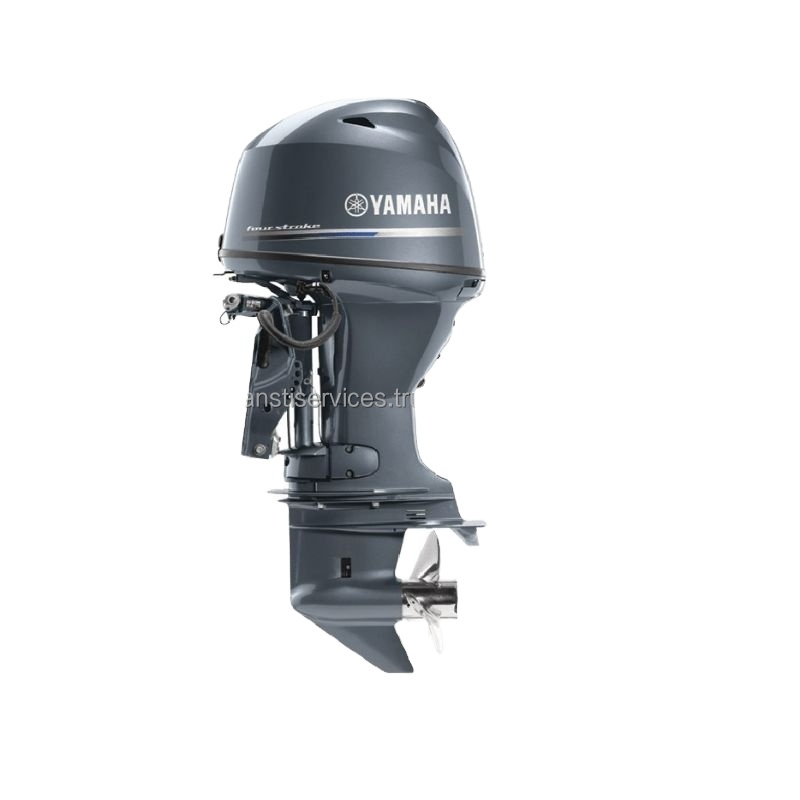

Gasoline Outboard Engine Boat Motor
-
Type:
-
4 Stroke Model
-
Product:
-
Marine Outboard Engine
-
Usage:
-
Small Boats
Quick Details
-
Dimensions (L x W x H) (mm):
-
1266 x 729 x 1179mm
-
Brand Name:
-
Yama 60 HP T60LB Outboard Motor
-
Model Number:
-
60 HP T60LB Outboard Motor
-
Place of Origin:
-
Japan
-
Product Name:
-
Gasoline Outboard Engine Boat Motor
-
Type:
-
4 Stroke Model
-
Product:
-
Marine Outboard Engine
-
Usage:
-
Small Boats
Product Description
| Engine Type | Inline 4 |
|---|---|
| Displacement | 1.0L |
| Bore x Stroke | 65 x 75mm (2.56 x 2.95 in.) |
| Prop Shaft Horsepower | 60hp @ 5500rpm |
| Full Throttle RPM Range | 5000 ~ 6000 rpm |
| Alternator Output at W.O.T. | 16 Amp |
| Compression Ratio | 9.5:1 |
| Fuel Induction System | EFI |
| Weight † | 117kg (262 lbs) |
| Recommended Fuel | Octane 87 |
| Recommended Engine Oil | Yamalube ® 4M (See owner's manual) |
| Recommended Fuel Filtration | Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating | 3-Star |
| Exhaust | Through Propeller |
| Intake | 8 |
| Ignition | TCI Microcomputer |
| Spark Plug | DPR6EB-9 |
| Alternator Output | 16 Amp |
| Starting System | Electric |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 2.1L/1.9L |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | 2.33:1 |
| Gear Shift | Forward, Neutral, Reverse |
| Shaft Length | 20" |
| Degree of Tilt | 69° |
| Degree of Trim | -4° through +16° |
| Dry Weight | 117kg (262 lbs) |
| Mounting Centers | N/A |
| Steering Angle (maximum) | 40° from center, either direction |
| Warranty | Limited 3 Year Limited Pleasure Boat - 1 Year Limited Commercial |
