Quick Details
-
Structure:
-
Check
-
Warranty:
-
12 months
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ALPHA
-
Model Number:
-
RV
-
Port Size:
-
1/2,1/4
-
Product name:
-

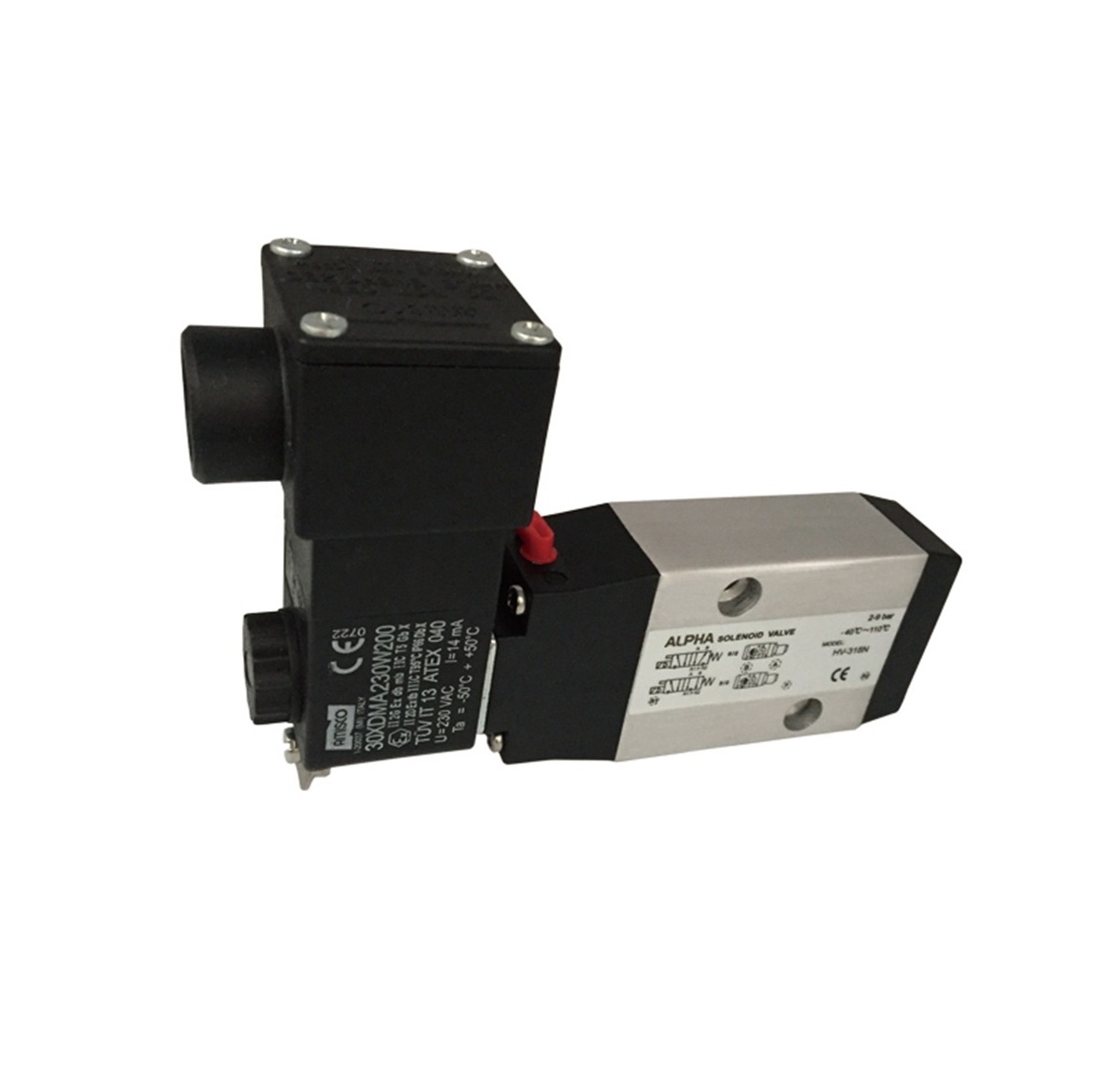

Solenoid reversing valve
-
Valve body material:
-
all stainless steel, all aluminum alloy
-
Surface treatment:
-
stainless steel electrolytic polishing, aluminum alloy oxidation
-
Medium contact material:
-
stainless steel 316, NBR
-
Air source interfaces:
-
G1 / 4, NPT1 / 4, G1 / 2, NPT1 / 2
-
Working temperature:
-
- 25 ~ 65, - 45 ~ 70
-
Working pressure:
-
1-8bar
-
Protection grade:
-
IP66
-
Electrical strength:
-
1000V
-
Working life:
-
10 millions
Quick Details
-
Type:
-
solenoid reversing valve
-
Application:
-
Widely used
-
Power:
-
Electric
-
Structure:
-
Check
-
Warranty:
-
12 months
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ALPHA
-
Model Number:
-
RV
-
Port Size:
-
1/2,1/4
-
Product name:
-
Solenoid reversing valve
-
Valve body material:
-
all stainless steel, all aluminum alloy
-
Surface treatment:
-
stainless steel electrolytic polishing, aluminum alloy oxidation
-
Medium contact material:
-
stainless steel 316, NBR
-
Air source interfaces:
-
G1 / 4, NPT1 / 4, G1 / 2, NPT1 / 2
-
Working temperature:
-
- 25 ~ 65, - 45 ~ 70
-
Working pressure:
-
1-8bar
-
Protection grade:
-
IP66
-
Electrical strength:
-
1000V
-
Working life:
-
10 millions
Product Overview
Product features
High life span,can work without oil
The installation direction can be chosen at will
Two three passs/two five passageways can be interchanged.(Patent Design)
Low temperature environment is optional.
High temperature environment is optional.
The two three links are self-respiration designed(which can be used in high dust and strong acid and alkali gas environments).(Patent Design)
0.3 W low power option.
It can be connected with a large-caliber gas control valve without a pipe.
Specifications
|
Direct-Acting Product number：RV
|
|
|
|
|
|
|
|
|
||||||||
|
Model
|
Acting type
|
Switching Method
|
Voltage
|
Explosion Proof type
|
Air connection
|
Conduit entry
|
Ambient Temp
|
Surface treatment
|
||||||||
|
RV
|
Direct-Acting
|
Return Type
|
AC 48V
|
Non-explosionProof
|
G1/4
|
for ordinarysolenoid valves
|
-25℃~60℃
|
Aluminium Alloy
|
||||||||
|
|
|
|
AC 110V
|
EExmbII T5
|
NPT1/4
|
NPT1/2
（full series） |
-45℃~70℃
|
Stainless steel
|
||||||||
|
|
|
|
AC 240V
|
ExiaIICT6
|
|
M20x1.5
（full series） |
|
Ceram
|
||||||||
|
|
|
|
AC 220V
|
Ex d IIC T5/T6
|
|
|
|
|
||||||||
|
|
|
|
DC 24V
|
|
|
|
|
|
||||||||
|
|
|
|
DC 220V
|
|
|
|
|
|
||||||||
|
|
|
|
Special
|
|
|
|
|
|
||||||||
|
Pilot-Operated Type Product number：RV
|
|
|
|
|
|
|
|
|
||||||||
|
Acting type
|
Switching Method
|
Voltage
|
Explosion Proof type
|
Mounting Type
|
Air connection
|
Conduit entry
|
Ambient Temp
|
Surface treatment
|
||||||||
|
3/2 Way
|
Return Type
|
AC 48V
|
Non-explosionProof
|
pipe connection
|
G1/4
|
for ordinarysolenoid valves
|
-25℃~60℃
|
Aluminium Alloy
|
||||||||
|
5/2 Way
|
Detent Type
|
AC 110V
|
EExmbII T5
|
NAMUR
|
NPT1/4
|
NPT1/2
（full series） |
-45℃~70℃
|
Stainless steel
|
||||||||
|
5/3 Way
|
|
AC 240V
|
ExiaIICT6
|
|
G1/2
|
M20x1.5
（full series） |
|
Ceram
|
||||||||
|
|
|
AC 220V
|
Ex d IIC T5/T6
|
|
NPT1/2
|
|
|
|
||||||||
|
|
|
DC 24V
|
|
|
|
|
|
|
||||||||
|
|
|
0.3W DC 24V
|
|
|
|
|
|
|
||||||||
|
|
|
0.8W DC 24V
|
|
|
|
|
|
|
||||||||
|
|
|
1.2W DC 24V
|
|
|
|
|
|
|
||||||||
|
Arguments
|
|
|
||
|
Body Material
|
316L SS 316L
|
Aluminium alloy
|
||
|
Finishing
|
electrochemical polishing
|
Hard anodizing
|
||
|
Seal
|
NBR
|
HNBR
|
||
|
Material in contact with fluid
|
POM SS316. NBR,POM
|
HNBR
|
||
|
Function and CV value
|
5/2 及 3/2 NC,CV=1.4
|
CV=0.8；CV=2.1
|
||
|
Port size
|
G1/4”; NPT1/4
|
G1/4”; NPT1/4；G1/2 ；NPT1/2
|
||
|
Mount standard
|
24x32NAMUR and pipe connection
|
|
||
|
Fix screws
|
Stainless steel
|
|
||
|
Protection class
|
IP65/NEMA4,4X
|
|
||
|
Ex-proof class
|
NO
|
|
||
|
Working temperature
|
“ －25°C~65°C”
|
-45℃~70℃
|
||
|
Working pressure
|
1~8 bar
|
|
||
|
Working medium
|
≤25um）dry and lubricated air
|
|
||
|
Life cycles
|
10millions
|
|
||
|
Solenoid specification
|
|
|
||
|
Voltage
|
24VDC-3W（50/60HZ)
110/220VAC-4VA 240VAC-4.1VA |
ExiaIICT6 1.6W
|
||
|
Coil cover
|
Stainless steel 316
|
Aluminium alloy
|
||
|
Cable plug
|
M20x1.5 BSPP
|
NPT 1/2
|
||
|
insulation grade
|
H Class Coil
|
|
||
|
dielectric strength
|
1000V
|
|
||
|
Duty cycles
|
100%ED
|
|
||
|
Protection class
|
IP66
|
|
||
|
Ex-proof class
|
ExdIICT6 DIPA20 TA,T6
|
ExiaIICT6
|
||
|
Working temperature
|
-45°C~70°C
|
|
||
|
Working current
|
ExdIICT6 0.125ADC
|
ExiaIICT6 0.195ADC
|
||
