Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
China
-
Brand Name:
-
DRK
-
Dimension(L*W*H):
-
1940*1470*1220mm
-
Weight (KG):
-
550 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts
-
product name:
-
DRK1390 laser cutting machine
-
Control system:
-
Ruida 6445G
-
Compatible Operating Systems::
-
WINDOWS XP/Win7/8/10
-
Laser power:
-
80w EFR laser tube
-
Accessories:
-
Red dot positioning, auto focus
-
Key words:
-
laser engraving machine
-
Type:
-
Water Cooling CO2 Laser Engraving Machines
-
Color:
-
Gray blue or as your request
-
Keywords:
-
laser engraving machine
-
Certification:
-
ce
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Engraving Area:
-
1300*900mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-70000mm/s
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
China
-
Brand Name:
-
DRK
-
Dimension(L*W*H):
-
1940*1470*1220mm
-
Weight (KG):
-
550 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts
-
product name:
-
DRK1390 laser cutting machine
-
Control system:
-
Ruida 6445G
-
Compatible Operating Systems::
-
WINDOWS XP/Win7/8/10
-
Laser power:
-
80w EFR laser tube
-
Accessories:
-
Red dot positioning, auto focus
-
Key words:
-
laser engraving machine
-
Type:
-
Water Cooling CO2 Laser Engraving Machines
-
Color:
-
Gray blue or as your request
-
Keywords:
-
laser engraving machine
-
Certification:
-
ce
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Marketing Type:
-
Ordinary Product
2020 Purchasing Festival Up to 20% discount,the quota is limited to the top 30!

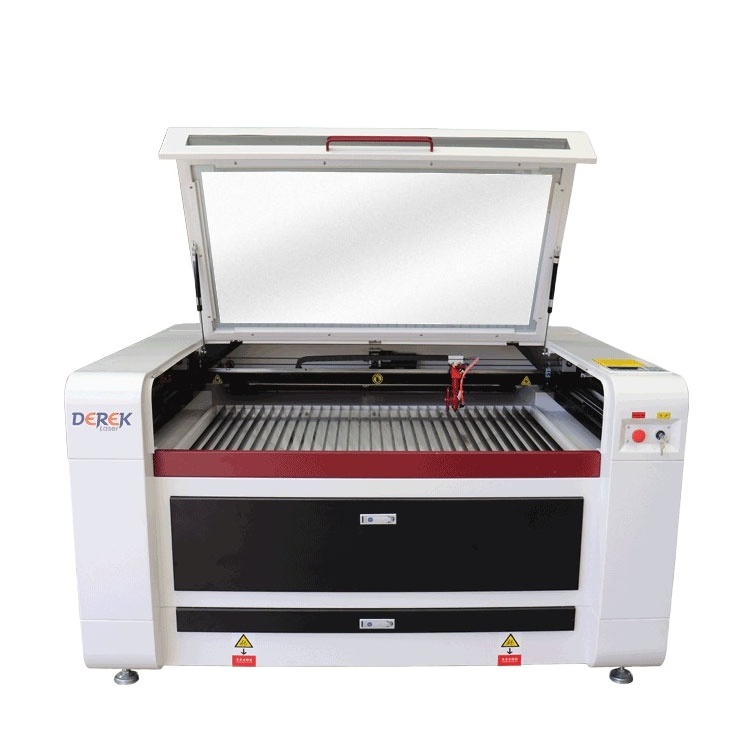

80w 100w 130w 150w CNC laser engraving cutting machine price for acrylic fabric wood
|
Model |
DRK1390( CO2 laser ) DRK960 |
|
|
1 |
Working area |
1300mm*900mm 900*600mm |
|
2 |
Laser power |
80/100/130W RECI or EFR |
|
3 |
Engraving speed |
0-64000mm/min |
|
4 |
Cutting Speed |
0-36000mm/min |
|
5 |
Preposition accuracy |
±0.1mm |
|
6 |
Cutting Platform |
Blade and Honeycomb table |
|
7 |
Driving system |
Stepper motors |
|
8 |
Cooling mode |
Circulating-water cooling and protection system |
|
9 |
Minimum letter size |
Chinese Character: 2.0mm×2.0mm,
|
|
10 |
Power Supply |
AC220V 50HZ/AC110V 60HZ |
|
11 |
Dictate format |
BMP,HPGL,PLT,DST,DXP,AL |
|
12 |
Compatible Software |
CorelDraw ,AutoCAD transmit directly |
|
13 |
Operating Temperature |
5°C-40°C |
|
14 |
N.W/G.W |
400kg/500kg |
|
15 |
Packing dimension |
1940*1470*1220mm |
This machine can use Wifi control, no need the wire to connect the computer. So one computer can control many machines .
Applicable materials:
wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
Applicable industries:
advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.
1. Laser machine for bamboo:
2.Laser machine for wood:
3.Laser machine for Metal:
4.Laser machine for Acrylic:
5.Laser machine for Cloth:
6.Laser machine for Leather:
|
Package details:
1. Standard plywood case, its compressive strength and bearing quality is better.
|
Whether selecting a current product from Derek catalog or seeking engineering assistance for your application,you can talk to our customer service center about your sourcing requirements.
Welcome to visit our company and get quick quotation here
