HONE Vacuum Emulsifier Bottom Snail Slime Mayonnaise Homogenizer Mixer Toothpaste Beauty Cream Cosmetics Mixer Making Machine
HONE Vacuum Emulsifier Bottom Snail Slime Mayonnaise Homogenizer Mixer Toothpaste Beauty Cream Cosmetics Mixer Making Machine
HONE Vacuum Emulsifier Bottom Snail Slime Mayonnaise Homogenizer Mixer Toothpaste Beauty Cream Cosmetics Mixer Making Machine
HONE Vacuum Emulsifier Bottom Snail Slime Mayonnaise Homogenizer Mixer Toothpaste Beauty Cream Cosmetics Mixer Making Machine
HONE Vacuum Emulsifier Bottom Snail Slime Mayonnaise Homogenizer Mixer Toothpaste Beauty Cream Cosmetics Mixer Making Machine
HONE Vacuum Emulsifier Bottom Snail Slime Mayonnaise Homogenizer Mixer Toothpaste Beauty Cream Cosmetics Mixer Making Machine
HONE Vacuum Emulsifier Bottom Snail Slime Mayonnaise Homogenizer Mixer Toothpaste Beauty Cream Cosmetics Mixer Making Machine
HONE Vacuum Emulsifier Bottom Snail Slime Mayonnaise Homogenizer Mixer Toothpaste Beauty Cream Cosmetics Mixer Making Machine

HONE Vacuum Emulsifier Bottom Snail Slime Mayonnaise Homogenizer Mixer Toothpaste Beauty Cream Cosmetics Mixer Making Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $28600
≥5 Sets
US $27600
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Max. Loading Capacity:
100L-500L
Weight (KG):
1200 KG
Place of Origin:
Guangdong, China
Brand Name:
HONE
Voltage:
220-480V/50-60Hz 3phase Customize
Dimension(L*W*H):
Depends on the situation
Power (kW):
60 kW
Product name:
Vacuum Emulsifying Mixing Machine
Machine Type:
Hydraulic Lifting
Function:
Mixing Raw Material
Heating method:
Electric Steam Heating
Stirrer type:
Wall Scraper Mixer
Homogenizer:
Frequency Inverter
Control:
Button/PLC
Jacket:
3 Layers
Discharge:
Tilting Discharge

Quick Details

Barrel Volume (L):
300
Max. Loading Volume (L):
300 L
Range of Spindle Speed(r.p.m):
1 - 65 r.p.m
Max. Loading Capacity:
100L-500L
Weight (KG):
1200 KG
Place of Origin:
Guangdong, China
Brand Name:
HONE
Voltage:
220-480V/50-60Hz 3phase Customize
Dimension(L*W*H):
Depends on the situation
Power (kW):
60 kW
Product name:
Vacuum Emulsifying Mixing Machine
Machine Type:
Hydraulic Lifting
Function:
Mixing Raw Material
Heating method:
Electric Steam Heating
Stirrer type:
Wall Scraper Mixer
Homogenizer:
Frequency Inverter
Control:
Button/PLC
Jacket:
3 Layers
Discharge:
Tilting Discharge

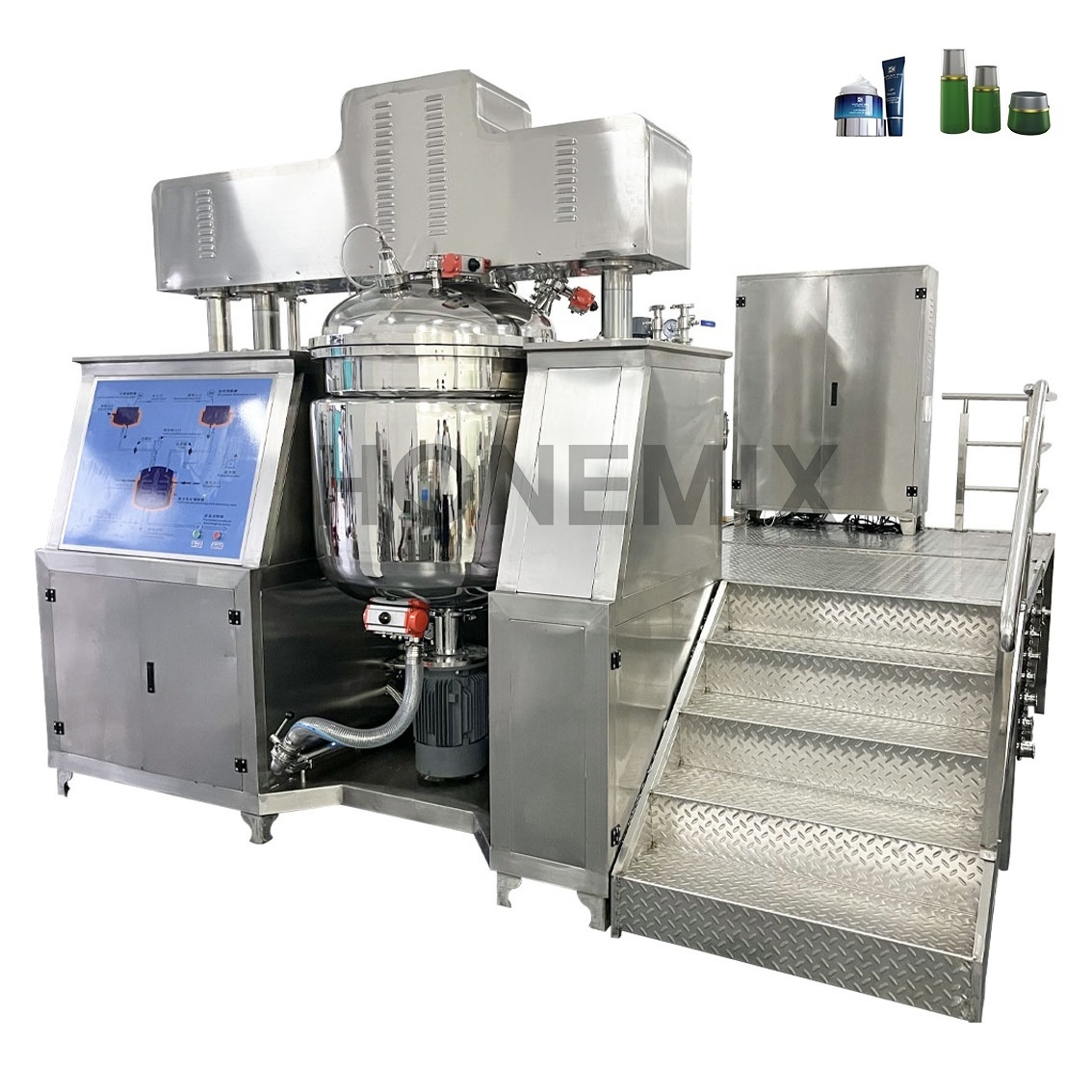

HYDRAULIC LIFITNG VACUUM EMULSIFYING MIXER MACHINE
Capacity(L)
Wall Scraper Mixer
Homogenizer
Water and Oil Pot(L)
Disperser
100
1.5KW, 0~65RPM
4KW, 0~3600RPM
90/60
0.55/0.55KW
200
3KW, 0~65RPM
5.5KW, 0~3600RPM
180/120
0.75/0.75KW
300
4KW, 0~65RPM
7.5KW, 0~3600RPM
270/180
1.1/1.1KW
500
5.5KW, 0~65RPM
11KW, 0~3600RPM
450/300
1.5/1.5KW
Vacuum emulsifying mixer machine consist of Water and Oil pot, Main emulsifying tank, Vacuum system, Tilting discharge system, Hydraulic lifting system, Mixing system, Homogenizer system and Heating/Cooling system. All those functions work together to produce batches of good cosmetics products.




Lip Part
Seal Head:SUS316L
Material filter,
vacuum pressure meter,
vacuum discharge valve,
vacuum inlet,
CIP system (Spray ball),
sight glass light,
sight window,
man-hole,
perfume hopper




  • Frame Wall Scrapper Mixer

SUS316L Wall scrapper mixer
PTFE scraper
Fixed propeller
45degree blades on opposite angles to make sure mixture complete
Siemens motor drive
0-65rpm with variable speed control
※ TWO WAYS wall scrapper mixer
HELIX scrape mixer(OPTION)




Bottom Homgoenizer
SUS316L High Shear Bottom Homogenizer
Siemens motor drive
0-3600rpm with variable speed control

※ EXTERNAL HOMOGENIZER (OPTION)
※ UPPER HOMOGENIZER (OPTION)





Water and Oil Pot
Machine equipped A set of water and oil pot

Siemens motor, 1440RPM
Electric heating by Water or Conduction Oil
Mixing: High shearing Disperser plates with baffle on the wall







PLC Controller

SIEMENS PLC Touch Screen Control
Clear and concise content
English & Chinese L anguage
