Quick Details
-
I/O number:
-
1616
-
Product name:
-
PLC CPU module
-
Condition:
-
100%new 100%Original
-
Warranty:
-
12 Months
-
Package:
-
Carton Package
-
Service:
-
OEM.ODM
-
MOQ:
-
1PCS
-
Quality:
-
100% Strictly Tested
-
Product size:
-
75*108*94mm
Quick Details
-
Brand Name:
-
LicOS
-
Place of Origin:
-
Yunnan, China
-
Memory:
-
RAM
-
I/O number:
-
1616
-
Product name:
-
PLC CPU module
-
Condition:
-
100%new 100%Original
-
Warranty:
-
12 Months
-
Package:
-
Carton Package
-
Service:
-
OEM.ODM
-
MOQ:
-
1PCS
-
Quality:
-
100% Strictly Tested
-
Product size:
-
75*108*94mm
Products Description
|

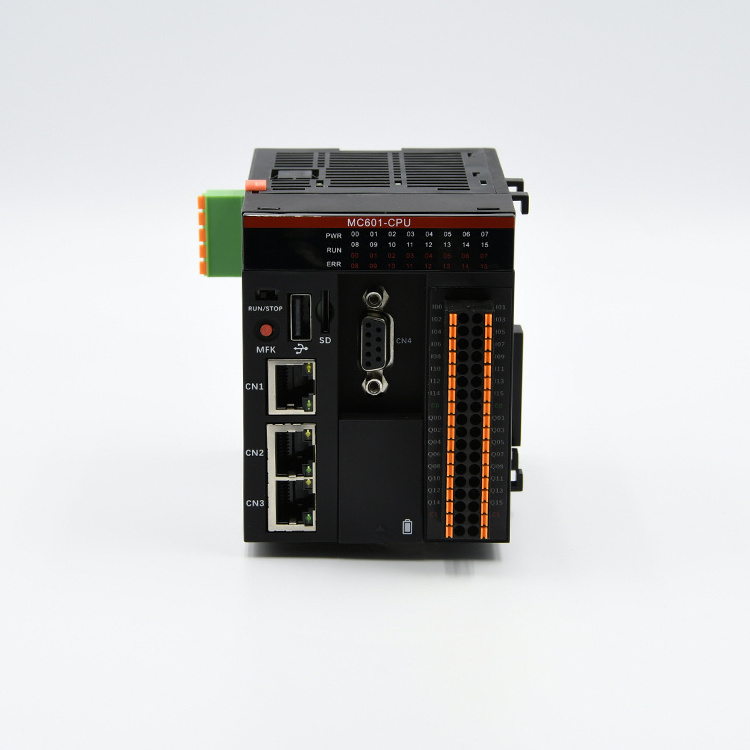

Product Name
|
Motion control module
|
|
Model
|
MC601-CPU3310G1616D
|
|
Brand
|
LicOS
|
|
Place Of Origin
|
Yunnan，China
|
|
Condition
|
100% New 100% Original
|
|
Series
|
MC600 series
|
|
Product Function
|
Completes the execution of user programmes, completes logic control, and completes complex motion control.
|
|
Application
|
medium and large PLC applications, such as process control, logic control, motion control, etc..
|
|
Core Points
|
★1, CPU main frequency: 4 cores * 1.2GHz.
★2, Support IEC61131-3 programming language (LD, FBD, IL, ST, SFC, CFC).
★3, CPU module supports a variety of industrial field bus.
★4, CPU module supports a variety of industrial fieldbus protocols: Ethernet/IP,
Modbus TCP, ModbusRTU, CANopen, Profinet, EtherCAT and so on.
★5, can communicate with the host computer through a variety of network protocols: support for OPC UA Server, MQTT, Modbus TCP, TCP/IP function.
★6, 256M program storage space, 2G data storage space, 2M can realize the data power-off hold, 32G expandable storage space.
★7, 4ns/basic instruction instruction running speed.
★8, Network information configuration is available via Web.
★9, integrated with the standard backplane bus, the body supports a
maximum of 16 GL100 I/O modules (16 * 32 = 512 points), the first and last refresh time is less than 5ms.
★10. 127 remote I/O racks can be extended through fieldbus to realize large-scale I/O point control.
★11, EtherCat supports 32 bus axes (64 axes in dual-master mode).
★12, supports PTP control, electronic cam (flying shear, rotary cut, tracking shear, follow, synchronization), electronic gear, linear/arc/3-axis helical interpolation, CNC (supports G code), robotics (Delta, SCARA, Portal, Tripod, gantry, Bipod and 4-axis palletizing, 6-axis free-jointed robots), and so on, and it can control the complex motion control.
|
|
Technical consulting support
|
Yes
|
|
Warranty
|
1 year
|
|
Product Feature
|
★1, Ethernet rate up to 1 100M/1000Mbps adaptive Ethernet interface and 2 10M/100Mbps adaptive.
★2, integrated with the standard backplane bus, the body supports a maximum of 16 GL100 I/O modules (16 * 32 = 512 points).
★3, CPU frequency: 4 cores * 1.2GHz.
★4, IO point maximum capacity: 65536 digital channels, 16384 analog channels. ★5.Ethernet port can be configured as EterNet working mode or EterCAT working mode according to the configuration.
★6, Program normal operation, program stop operation, system error indication, bus status indication can be indicated through CPU panel.
|
Products Parameters
|
Product model
|
|
MC600-CPU3310G1616D
|
MC601-CPU3310G1616D
|
MC602-CPU3310G1616D
|
|||
|
Storage
|
For programs
|
128MB
|
256MB
|
512MB
|
|||
|
|
For data
|
128MB+2MB
Power Down Hold |
2GB+2MB
Power Down Hold |
4GB+2MB
Power Down Hold |
|||
|
|
Scalable storage
|
32G
SD card plug |
|
|
|||
|
Storage method
|
|
NAND Flash
Permanent storage without the need for backup batteries |
|
|
|||
|
Programming method
|
|
IEC61131-3（LD/FBD/IL/ST/SFC/CFC）
|
|
|
|||
|
Program Execution Method
|
|
Compile Execution
|
|
|
|||
|
Instruction processing speed
|
|
Basic instructions
|
Basic instructions
|
Basic instructions
|
|||
|
Maximumof IO points
|
Digital(maximum)
|
131072
|
|
|
|||
|
|
Analog(maximum)
|
32768
|
|
|
|||
|
CPU body module integrated IO input
|
Number of channels
|
16 Channels
PNP/NPN input |
|
|
|||
|
|
ON state voltage
|
17-30VDC
|
|
|
|||
|
CPU body module integrated IO output
|
Number of channels
|
16 Channels
NPN output |
|
|
|||
|
|
ON state voltage
|
17-30VDC
|
|
|
|||
|
Number of locally portable IO modules
|
|
16
|
|
|
|||
|
Communication interface
|
RS485
|
3
|
3
|
3
|
|||
|
|
RJ45
|
3
|
3
|
3
|
|||
|
|
CAN
|
1
|
1
|
1
|
|||
|
Communication protocol
|
Ethernet
|
1 independent 10M/100M/1000M adaptive Ethernet ports ,2 independent 10M/100M adaptive Ethernet ports
EtherCAT, Ethernet, Modbus TCP, Profinet according to configuration, achieving Ethernet redundancy or EtherCAT bus redundancy. |
|
|
|||
|
|
EtherCAT
|
|
|
|
|||
|
|
Profinet
|
|
|
|
|||
|
|
MQTT
|
Support
|
|
|
|||
|
|
OPC UA
|
Support
|
|
|
|||
|
|
CANOpen
|
Support for CANopen protocol
|
|
|
|||
|
|
Free port protocol
|
Support for free port protocol
|
|
|
|||
|
|
Modbus
|
Modbus RTU/ASCII
Master/Slave Protocol |
|
|
|||
|
EtherCAT
Motion control parameters |
|
16 axis
（Dual master station not supported） |
32 axis
（Dual master station 64 axis） |
64 axis
（Dual master station 128 axis） |
|||
|
webvisu
|
|
Support
|
|
|
|||
|
Supply voltage
|
|
24VDC(-15%~20%)
|
|
|
|||
