Quick Details
-
Brand Name:
-
Yuntang
-
Model Number:
-
YT-QY02
-
Product name:
-
Soil Samplers
-
Application:
-
soil sampling
-
Keyword:
-
soil sampling
-
Weight:
-
20kg
-
Color:
-
Orange
-
Package:
-
Carton
-
Diameter:
-
5.1cm
-
Sampling depth:
-
2-10m
-
Fuel tank volume:
-
1200ml
-
Engine displacement:
-
52CC
Quick Details
-
Warranty:
-
1 year
-
Power:
-
1.9kw/7000r/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Yuntang
-
Model Number:
-
YT-QY02
-
Product name:
-
Soil Samplers
-
Application:
-
soil sampling
-
Keyword:
-
soil sampling
-
Weight:
-
20kg
-
Color:
-
Orange
-
Package:
-
Carton
-
Diameter:
-
5.1cm
-
Sampling depth:
-
2-10m
-
Fuel tank volume:
-
1200ml
-
Engine displacement:
-
52CC

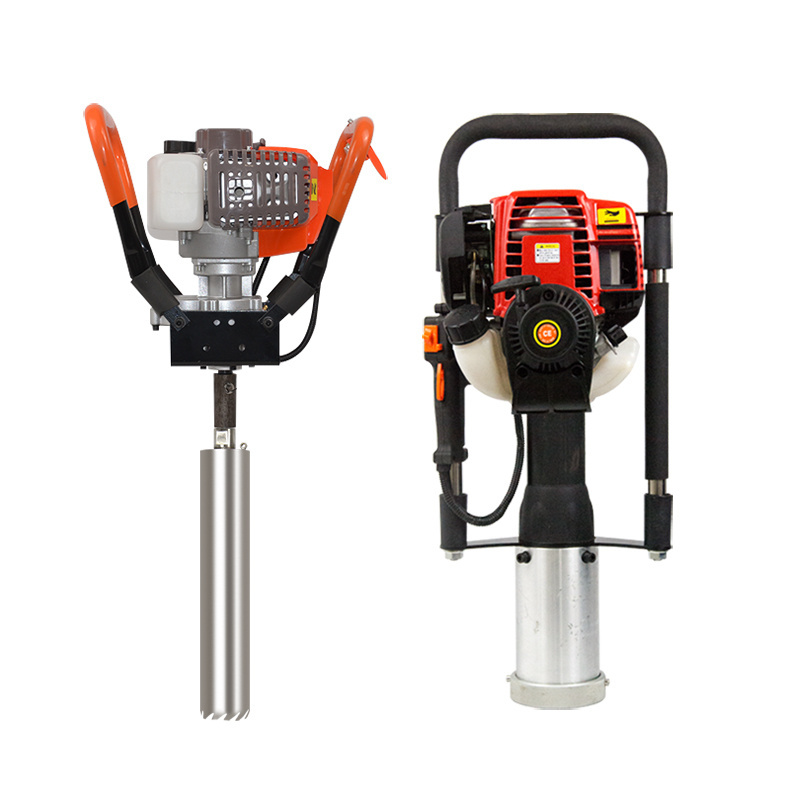

Power (gasoline) soil sampler (gasoline powered soil drill) soil sampler is a power (gasoline) soil sampler developed by our factory based on the opinions of our customers, the needs of various users and market research. The instrument is powered by a gasoline engine and is known for greatly reducing the labor of soil sampling personnel and for fast and easy sampling.
Purpose:
1. Description of soil structure
2. Investigate the root system to obtain the effect of depth and compaction on the root
3. Test the composition and density of undisturbed soil
4. Study the water content and dissolved substances of soils that have been operated for a long time
5. The study of water flow and dissolved substances, such as the phenomenon of rapid water loss from soil
6. Archaeological surveys
Features of the instrument:
1. Rotary type, there is no disturbance up and down, and will not damage the soil profile structure
2. Large sampling volume, plug-in connection, easy to disassemble.
3. The drill bit is equipped with serrations, which can be drilled into the soil through the impact hammer, and it is easy to enter the soil.
4. The unique detachable cutting design of the barrel drill makes it easy to sample.
5. The sample is in a relatively loose cylindrical cylinder, and it is very easy to take out
6. The soil is difficult to compress (keep it in its original shape)
7. Collect a single sample to study the entire soil profile
8. It saves time and reduces sample damage than digging a sampling pit
9. Can be used effectively on all types of soil
|
technical parameter
|
|
|
|
Specifications
|
Sampling diameter 5.1cm, one sampling length 25cm (drill can be customized according to requirements)
|
|
|
Sampling depth
|
2 meters, extension rod plug connection.
|
|
|
Engine form
|
air-cooled single-cylinder two-stroke
|
|
|
Engine displacement
|
52CC
|
|
|
Engine power
|
1.9kw/7000r/min
|
|
|
Gearbox configuration
|
adopt gear two-stage speed change, the bearing rotates
|
|
|
Transmission mode
|
gear transmission
|
|
|
Start mode
|
hand-pull recoil start
|
|
|
Fuel ratio
|
93# gasoline and two-stroke engine oil 25:1
|
|
|
Fuel tank volume
|
1200ml
|
|
|
Net weight
|
20kg
|
|
|
Packing List
|
|
|
|
Name
|
quantity
|
|
|
Gasoline engine (power increased to 52CC, more powerful horsepower!)
|
1
|
|
|
Bricks (pin connection, opening design)
|
1
|
|
|
Extension rod (length: 50CM, bolt connection)
|
4
|
|
|
scraper
|
1
|
|
|
steel tape measure (3 meters)
|
1
|
|
|
pair of gloves
|
1
|
|
|
certificate of conformity
|
1
|
|
|
copy of the manual
|
1
|
|
|
Lever (auxiliary extraction equipment)
|
1
|
|
|
carrying case
|
1
|
|
|
aluminum box
|
1
|
|
FAQ
1.MOQ:
3.package:
4.How to calibrate:
We have no MOQ limit, you can order any number of products.
2.Can we put our logo on the instrument:
Yes, we can provide OEM service.
3.package:
Generally speaking, we will load the goods in sturdy boxes, and we can also pack them according to customer
requirements.
requirements.
4.How to calibrate:
All machines have been well calibrated before they leave the factory.
