1. A white coating is applied to the rear surface of the lamp.
reflective mirror, reducing the cost..
- Product Details
- {{item.text}}
Quick Details
-
Color Rendering Index(Ra):
-
NO
-
Working Time (hours):
-
5000
-
Product Weight（kg）:
-
0.4
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
REMA
-
Working Lifetime(Hour):
-
5000-20000 hours
-
Tube color:
-
clear reflector
-
Filament:
-
Carbon fiber
-
Ceramic base:
-
high heat-resistant and non-deformable
-
Wire connection:
-
Two side connection
-
Input Voltage:
-
24-600V
-
Installation:
-
Vertical and Horizontal
-
Lamp shape:
-
Customized
-
Diameter:
-
Customized
Quick Details
-
Warranty(Year):
-
1-Year
-
Color Temperature(CCT):
-
1250K-3050K, 1250K-3050K
-
Input Voltage(V):
-
AC 24-600V
-
Color Rendering Index(Ra):
-
NO
-
Working Time (hours):
-
5000
-
Product Weight（kg）:
-
0.4
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
REMA
-
Working Lifetime(Hour):
-
5000-20000 hours
-
Tube color:
-
clear reflector
-
Filament:
-
Carbon fiber
-
Ceramic base:
-
high heat-resistant and non-deformable
-
Wire connection:
-
Two side connection
-
Input Voltage:
-
24-600V
-
Installation:
-
Vertical and Horizontal
-
Lamp shape:
-
Customized
-
Diameter:
-
Customized
PRODUCTS DESCRIPTION
|
Name：
|

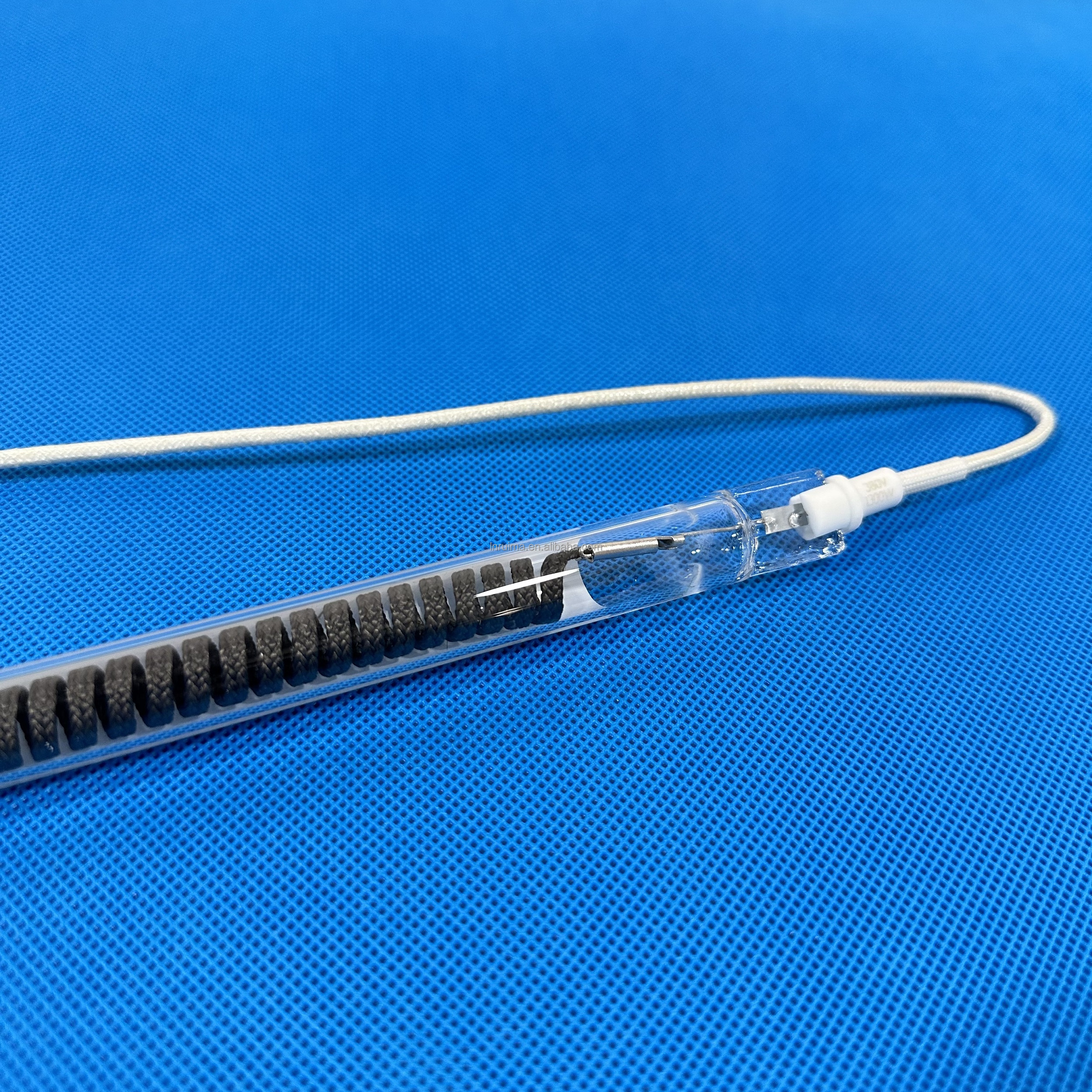

Short wave single clear iR lamp
|
Voltage ：
|
24-600V
|
|||
|
Wattage ：
|
100-5000W
|
Heated length ：
|
100-1500mm
|
|||
|
Response time：
|
1-2 s
|
Wavelength：
|
1.1-1.8 um
|
|||
|
Tube diameter：
|
8-12mm
|
Filament temperature：
|
1100-2900℃
|
|||
|
Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar photovoltaics, etc
|
|
|
|
|||
Characteristics:
1.High-efficiency energy source.
2.Non-contact heating.
3.Intelligent heat and control temperature precisely.
4.Clean heat source.
5.Quick on/off response.
6.Long life and constant energy emission.
7.Heating in vacuum.
3.Intelligent heat and control temperature precisely.
4.Clean heat source.
5.Quick on/off response.
6.Long life and constant energy emission.
7.Heating in vacuum.
reflective mirror, reducing the cost..
HOT SALE SIZE ALSO HAVE
|
Model No.
|
Vol
|
Watt
|
Diameter
|
Total length
|
Heat length
|
Reflector
|
Lamp Base
|
|
RMDD001
|
220
|
1000
|
10
|
355
|
280
|
C/W/G
|
Y/X/R7S/L
|
|
RMDD002
|
220
|
1500
|
10
|
355
|
280
|
C/W
|
Y/X/L
|
|
RMDD003
|
220
|
2000
|
10
|
355
|
280
|
C/W/G
|
Y/X/L
|
|
RMDD004
|
220
|
1500
|
11
|
570
|
500
|
C/W/G
|
Y/X/L
|
|
RMDD005
|
230/400
|
2000
|
12
|
788
|
700
|
C/W/G
|
Y/X/L
|
|
RMDD006
|
230/400
|
3000
|
13
|
788
|
700
|
C/W/G
|
Y/X/L
|
|
RMDD007
|
220/380
|
1200
|
14
|
574
|
490
|
C/W/G
|
Y/X/L
|
|
RMDD008
|
220/380
|
1500
|
15
|
674
|
590
|
C/W/G
|
Y/X/L
|
|
RMDD009
|
380
|
2000
|
16
|
834
|
750
|
C/W/G
|
Y/X/L
|
|
RMDD010
|
480
|
3650
|
10
|
1059
|
965
|
C/W
|
L
|
OEM/ODM
With thousands of specification IR lamps,
infrared short wave lamp (SW)
,
infrared
medium wave lamp (MW) , infrared fast medium wave lamp (Fast MW) and infrared special lamp , more than 30 years processing experience , skilled and experienced technical team , make our products more excellent , welcome to customize it according to your requirements .
How to customized ?
Pls provide this informations:
medium wave lamp (MW) , infrared fast medium wave lamp (Fast MW) and infrared special lamp , more than 30 years processing experience , skilled and experienced technical team , make our products more excellent , welcome to customize it according to your requirements .
How to customized ?
Pls provide this informations:
|
Name
|
*****
|
Tube diameter
|
⊘8、10、12、23×11、33*16.....
|
|
Voltage
|
220V、380V、.....
|
Lamp Reflector
|
Gold/ white/ clear
|
|
Wattage
|
1000W、2000W、.......
|
Lamp ceramic
|
SK15、R7s、.....
|
|
Total length
|
*****
|
Wire length
|
******
|
|
Heated length
|
*****
|
|
|
According to different use methods, a variety of filament structures are specially designed to enhance the flexibility of area selection heating and connection of external wiring.
Single tube infrared short-wave radiator: Two-hole infrared mid-wave radiator:
According to our experience, the characteristics of the irradiated objects (heating /drying/ physiotherapy/ disinfection) are different, and the spectrum energy absorption caused by infrared radiation are also different.
When selecting infrared radiation products ,we recommend that customers pay special attention to the following data in order to select suitable products:
APPLICATION
OUR FACTORY
PRODUCT PACKAGING
AFTER-SALE GUARANTEE
1. professional customer service
2.Complete package
3. Damaged replacement & After-sales service
We promise that we can change or refund the products if there is any quality problem.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q9 .What should I do if the product has a problem?
Please contact your customer manager immediately. we will solve it until you are satisfied.
Q2. Can I customize the printing of the packing and print our logo on the ir lamps?
A: Yes.we provide OEM and ODM service. our advantage is customized according to your request
Q3. Do you have any MOQ limit?
A: Low MOQ,1pc for sample checking is available.
Q4:What about the lead time?
A:Sample needs 3-5 workdays, mass production time needs 10-20 workdays for order quantity more than 1000PCS.
Q5:What certificates you have? what is the life time of the ir lamps?
A: CE,SGS,ISO ,QC already passed, each lamp with life more than 5000hrs
Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL UPS, FedEx or TNT. It usually takes 3-5 workdays to arrive. Airline and sea shipping also optional.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q8:How to order?
1.Tell us the model or the size you want to order, I will estimate shipping cost for you soon. 2.lf no problem about price. I will send you Pl for your confirm. We can accept PAYPAL.WESTERN UNION.T/T .L/C and so on 3.Producing and shipping will be arranged soon after order confirmed 4.photos will be taken for you to confirm and deliver the goods soon. 5.Tracking number , BL or AWB will be provided, and tracking frequently for you!
Welcome to visit our factory. welcome to your inquiry any time, we will reply you within 2hours.
