Quick Details
-
Color:
-
full color
-
Panel Size:
-
960*960mm, 960*960mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P6.67MM/P8MM/P10MM
-
Pixel Pitch:
-
P6.67MM/P8MM/P10MM, P6.67MM/P8MM/P10MM
-
Specification:
-
outdoor led display, outdoor led screen
-
Brightness:
-
6500-9000, 6500-9000, 6500-9000
-
pixel density:
-
50625, 50625
-
Lifespan (hours):
-
100000h, 100000h
-
IP Rating:
-
66, 66
-
View Angle（H/V）:
-
140°/120°, 140°/120°
-
Product name:
-
Outdoor Aluminum Digital Signage
-
Usage:
-
Outdoor Adverting Display
-
Warranty:
-
5 Years
-
Certificate:
-
CE/ETL/FCC/ROHS/CB/PSE
-
Viewing angle:
-
140H/120V
-
Cabinet material:
-
Profile Aluminum
-
Life span:
-
100000 Huors
-
Cabinet size:
-
960*960mm
-
Keyword:
-
Waterproof Outdoor LED Display Screen
Quick Details
-
Application:
-
Outdoor
-
Type:
-
LED
-
Brand Name:
-
UHLED
-
Color:
-
full color
-
Panel Size:
-
960*960mm, 960*960mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P6.67MM/P8MM/P10MM
-
Pixel Pitch:
-
P6.67MM/P8MM/P10MM, P6.67MM/P8MM/P10MM
-
Specification:
-
outdoor led display, outdoor led screen
-
Brightness:
-
6500-9000, 6500-9000, 6500-9000
-
pixel density:
-
50625, 50625
-
Lifespan (hours):
-
100000h, 100000h
-
IP Rating:
-
66, 66
-
View Angle（H/V）:
-
140°/120°, 140°/120°
-
Product name:
-
Outdoor Aluminum Digital Signage
-
Usage:
-
Outdoor Adverting Display
-
Warranty:
-
5 Years
-
Certificate:
-
CE/ETL/FCC/ROHS/CB/PSE
-
Viewing angle:
-
140H/120V
-
Cabinet material:
-
Profile Aluminum
-
Life span:
-
100000 Huors
-
Cabinet size:
-
960*960mm
-
Keyword:
-
Waterproof Outdoor LED Display Screen
|
Specification
|
|
|
|
|
||||
|
Pixel Pitch：
|
P5.7
|
P6.66
|
P8
|
P10
|
||||
|
LED Configuration：
|
SMD2727
|
SMD2727
|
SMD2727
|
SMD2727
|
||||
|
Pixel Density
|
30625dot/m2
|
22500dot/m2
|
15625dot/m
|
10000dot/m
|
||||
|
Module size：
|
480*320mm
|
480*320mm
|
480*320mm
|
480*320mm
|
||||
|
Module Resolution：
|
84*56 dot
|
72*48 dot
|
60*40 dot
|
48*32dot
|
||||
|
Cabinet Size：
|
960*960*77mm
|
960*960*77mm
|
960*960*77mm
|
960*960*77mm
|
||||
|
Cabinet Resolution：
|
168*168dot
|
144*144dot
|
120*120dot
|
96*96dot
|
||||
|
Cabinet Weight：
|
24.5kg
|
24.5kg
|
24.5kg
|
24.5kg
|
||||
|
IP Rating ( front/back)：
|
IP66
|
IP66
|
IP66
|
IP66
|
||||
|
Brightness Intensity：
|
>6500 CD/m2
|
>6500 CD/m2
|
>6500 CD/m2
|
>6500 CD/m2
|
||||
|
Viewing Angle (H/V)：
|
140°/140
|
140°/140
|
140°/140
|
140°/140
|
||||
|
View Distance：
|
＞5m
|
＞5m
|
＞5m
|
＞5m
|
||||
|
Gray Scale:
|
14bit
|
14bit
|
14bit
|
14bit
|
||||
|
Display Scale:
|
16.7M
|
16.7M
|
16.7M
|
16.7M
|
||||
|
Brightness Adjustment:
|
0-100 levels adjustable
|
0-100 levels adjustable
|
0-100 levels adjustable
|
0-100 levels adjustable
|
||||
|
Max.Power Consumption:
|
650W/㎡
|
650W/㎡
|
650W/㎡
|
650W/㎡
|
||||
|
Ave.Power Consumption:
|
200W/㎡
|
200W/㎡
|
200W/㎡
|
200W/㎡
|
||||
|
Drive Mode:
|
1/7S
|
1/6S
|
1/4S
|
1/2S
|
||||
|
Refresh Frequency:
|
≥3840HZ
|
≥3840HZ
|
≥3840HZ
|
≥3840HZ
|
||||
|
Gamma Correction:
|
-5.0~+5.0
|
-5.0~+5.0
|
-5.0~+5.0
|
-5.0~+5.0
|
||||
|
Environmental:
|
OUTDOOR
|
OUTDOOR
|
OUTDOOR
|
OUTDOOR
|
||||
|
Control Mode:
|
Synchronous display with
control PC by DVI |
Synchronous display with
control PC by DVI |
Synchronous display with
control PC by DVI |
Synchronous display with
control PC by DVI |
||||
|
Support Input:
|
Composite,S-
Vido,Component,VGA,DVI,H DMI,HD_SDI |
Composite,S-
Vido,Component,VGA,DVI,H DMI,HD_SDI |
Composite,S-
Vido,Component,VGA,DVI,H DMI,HD_SDI |
Composite,S-
Vido,Component,VGA,DVI,H DMI,HD_SDI |
||||
|
Operation Power:
|
AC100~240 50/60HZ
|
AC100~240 50/60HZ
|
AC100~240 50/60HZ
|
AC100~240 50/60HZ
|
||||
|
Operating Temperature:
|
-20℃~+50℃
|
-20℃~+50℃
|
-20℃~+50℃
|
-20℃~+50℃
|
||||
|
Operating Humidity:
|
10~95% RH
|
10~95% RH
|
10~95% RH
|
10~95% RH
|
||||
|
Operating Life:
|
100,000hours
|
100,000hours
|
100,000hours
|
100,000hours
|
||||
Full Aluminum Energy Outdoor LED Display
Module
Module Size：480x320mm
Pixel Pitch:
P4.4/P5.7/P6.66/P8/P10
Waterproof rating: IP66
Brightness:
≥6500CD
Product Details
Linear design,Concise style
Grain design,perfect hierarchy
With partial power design,lower-power consumption,Max.is 650w/m²
Naked Eye 3D

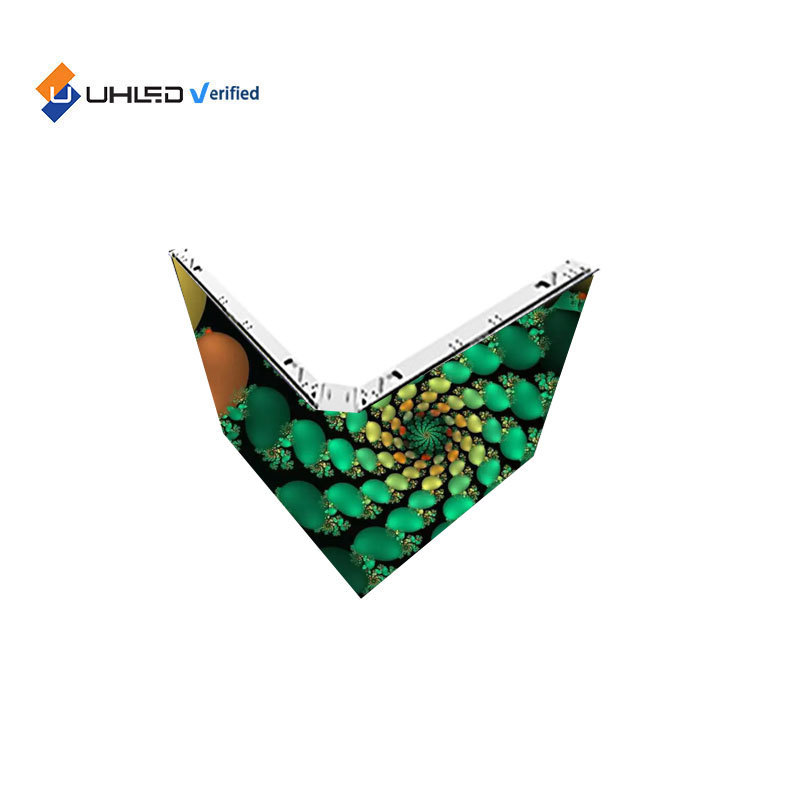

Curved module design, make right angle splicing Support arc &right angle splicing
Product Characteristics
Aluminum Profile Cabinet
Aluminum cabinet, light weight, safe and reliable, no deformation.
The use of aluminum cabinets, even at high ambient temperatures, the weight of a single cabinet will not be distorted.
IP66 waterproof
IP66 waterproof No need wrapping strucre suround the screen,lower-cost
Low temperature resistance can work normally at -40℃
