Quick Details
-
Model Number:
-
Li-polymer 504060
-
Battery Size:
-
Li-ion 504060
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
30g
-
The charging ratio:
-
1C
-
The discharge rate:
-
1C
-
Lead Shipping Methods:
-
By UPS, DHL, Fedex or By Sea
-
Chemistry:
-
Li(NiCoMn)O2
-
Battery Type:
-
Lithium polymer rechargeable battery
-
Nominal Voltage:
-
3.7V
-
Nominal Capacity:
-
1500mAh
-
Dimensions:
-
5(T)*40(W)*60(L)mm
-
Size of Thickness:
-
T can be customized from 3 to 10mm, W/L remain the same
-
Protection:
-
Built-in PCM
-
Cycle Life:
-
500 Times
-
OEM:
-
Accpetable
-
Warranty:
-
1 Year
-
Certification:
-
CE, RoHS, UN38.3, MSDS
Quick Details
-
Anode Material:
-
NCM
-
Application:
-
Bluetooth earphone, Wearable devices, Monitoring units, Tracking devices, Medical devices, Consumer Electronics, 3C
-
Brand Name:
-
SCE
-
Model Number:
-
Li-polymer 504060
-
Battery Size:
-
Li-ion 504060
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
30g
-
The charging ratio:
-
1C
-
The discharge rate:
-
1C
-
Lead Shipping Methods:
-
By UPS, DHL, Fedex or By Sea
-
Chemistry:
-
Li(NiCoMn)O2
-
Battery Type:
-
Lithium polymer rechargeable battery
-
Nominal Voltage:
-
3.7V
-
Nominal Capacity:
-
1500mAh
-
Dimensions:
-
5(T)*40(W)*60(L)mm
-
Size of Thickness:
-
T can be customized from 3 to 10mm, W/L remain the same
-
Protection:
-
Built-in PCM
-
Cycle Life:
-
500 Times
-
OEM:
-
Accpetable
-
Warranty:
-
1 Year
-
Certification:
-
CE, RoHS, UN38.3, MSDS

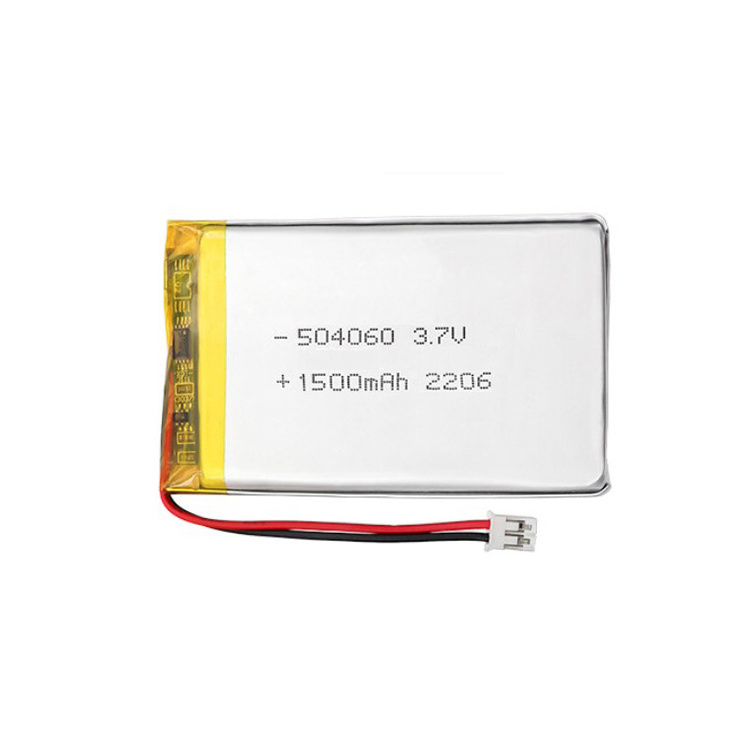

3.7V 1500mAh 5.55Wh lipo battery 504060 lithium polymer batteries for digital products
Specification
|
Battery Type
|
Lithium polymer rechargeable battery
|
|
|
Model
|
LP504060
|
|
|
Nominal Voltage
|
3.7V
|
|
|
Capacity
|
1500mAh
|
|
|
Dimensions
|
5(T)*40(W)*60(L)mm
|
|
|
Approx Weight
|
30g
|
|
|
Charge Info
|
Cut-off Voltage: 4.20V±0.05V
|
|
|
|
Standard Charge Current: 300mA(0.2C), Max Charge Current: 1500mA(1.0C)
|
|
|
Discharge Info
|
Discharge Cut-off Voltage: 3.0V
|
|
|
|
Max Constant Discharge Current: 1500mA(1C)
|
|
|
Operating Temperature
|
Standard Charge: 0~+45℃, Standard Discharge: -20~+60℃
|
|
|
Appearance/connection
|
Any wires length, connector P/N, or with PVC, label, battery packs are available
|
|
|
Certifications
|
CE, ROHS, UN38.3, MSDS
|
|
|
Payment Terms
|
TT/Paypal/Western Union
|
|
|
Description:
This battery is really the latest state of the art technology in rechargeable. It is extremely thin, light weight and super thin compared to any rechargeable chemistry. Low weight, small size but huge capacity. The other advantage of the lithium polymer technology is the very low self discharge.
Features:
* Rechargeable high volume Lithium-ion Battery
* High capability, lightweight, low internal resistance
* Excellent safety performance, Excellent discharge performance
* Long cycle time; can be widely used in variety of electronic devices, medical devices, etc.
Note:
Red connect "+", Black connect "-". In order not to damage the battery or shorten battery life, high voltage charging and incorrect connecting of the positive and negative pole is prohibited.
|
|
|
