laser light 30mw beam green red blue laser module cross line laser pointer 3-5vdc

laser light 30mw beam green red blue laser module cross line laser pointer 3-5vdc

FOB Reference Price: Get Latest Price

≥1 Pieces

US $20

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 0.1 KG

Housing material:: Aluminum

Certificated:: IEC ISO9001-2015

Beam Type:: dot, line, cross

Operating Temperature -:: 20℃~60℃

Laser Color:: red, blue, green

Output power:: 1-50mw(Custom)

Lens:: Optical glass

Application:: Industrial Instruments and Equipments

Input Voltage:: 3.0 to 5.0V

Quick Details

Place of Origin:: Shaanxi, China

Spare Parts Type:: Laser Component

Brand Name:: OEM

Weight (KG):: 0.1 KG

Housing material:: Aluminum

Certificated:: IEC ISO9001-2015

Beam Type:: dot, line, cross

Operating Temperature -:: 20℃~60℃

Laser Color:: red, blue, green

Output power:: 1-50mw(Custom)

Lens:: Optical glass

Application:: Industrial Instruments and Equipments

Input Voltage:: 3.0 to 5.0V

Specification

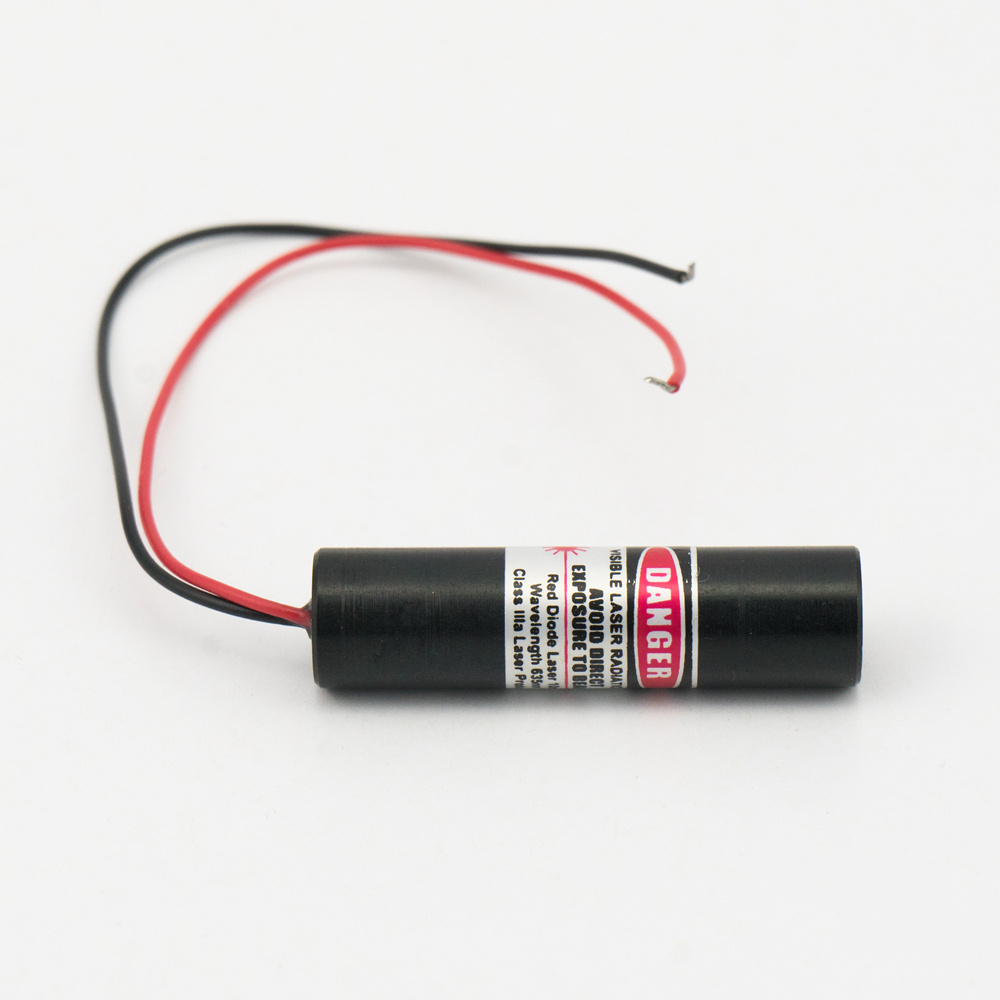

Industrial Diode Laser Module

Wavelength

405nm

450nm

488nm

520nm

635nm

650nm

808nm

830nm

850nm

905nm

940nm

980nm

660nm

670nm

685nm

705nm

730nm

780nm

Output Power

1,5,10,20,35,50,80,100,and130mW（Custom）

CDRH Class

I,II,IIIa,IIIb

Aperture

Ø1.0mm, Ø1.5mm, Ø2.0mm, Ø2.4mm, Ø3.0mm, Ø5.0mm, Ø6.0mm

Divergence

0.1mrad, 0.2mrad, 0.3mrad, 0.5mrad, 0.8mrad, 1.0mrad

Circular Beam Size

Ø0.5mm(@0.5m), Ø1.0mm(@1m), Ø4.0mm(@5m), Ø5.0mm(@10m)

Elliptical Beam Size

1x2mm(@1m), 2x4mm(@2m), 3x6mm(@5mm), 5x10mm(@10m), 8x16mm(@20m）

Operaating Current

<300mA

Input Voltage

3.0V, 5.0V, 9.0V, 12.0V, 24.0V

Operating Temperature

-20℃~60℃

Storage Temperature

-40℃~85℃

MTBF

>10,000hours

Elite industrial Laser Diode Modules use high-quality laser diode with specially designed optical collimating lens and high stable driven circuit (APC). Elite laser diode modules are all assessed with CE, ISO9001:2008, IEC certifications.

✔Compact Size Design ✔High Performance ✔High Reliability ✔High Product Quality ✔Water-resistance IP55~65

1.Small beam size from 5um 2.Compact and light weight

3.Long term stability 4.High reliability

5.High power density 6.Water-resistant IP55~65

Elite offers the ultra-small beam laser diode module, specially designed for high precision instrument and equipment, widely used in precise positioning and high-precision detection.

FAQ

1. What's the way of shipping
Shipping via DHL, TNT, UPS, FedEx, and EMS.

2. What's the payment method?
Assurance payment on Alibaba

3. What's your MOQ?
1 Piece

4. What's the delivery time?
3 – 7 days for International Shipping

5. Can I customize the products based on my requirements?
Yes. We can design and produce lasers based on your special requirements.

6. Do you have any certifications for lasers?
Yes. All our lasers are certified with CE, RoHS, and IEC.

7. How long is the warranty period?
12 months.
