Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Slocable
-
Model Number:
-

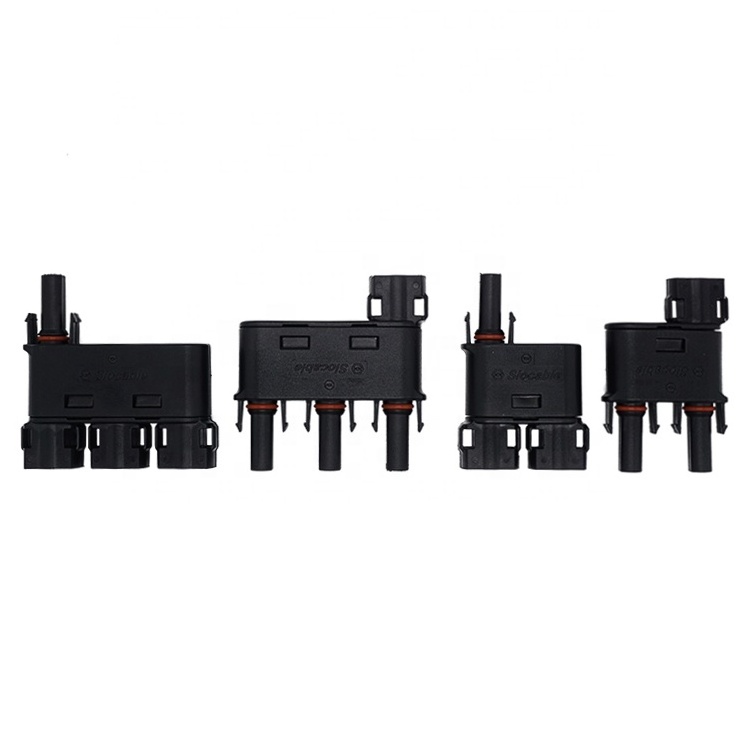

BC40N Solar branch connector
-
Product name:
-
PV Branch Connector
-
Rated current:
-
Max. 50A
-
Rated voltage:
-
1000/ 1500 V DC
-
Certificate:
-
TUV, CE, ROHS, ISO, IEC, BV
-
Material:
-
PPO, Copper Tinned
-
Warranty:
-
5 Years
-
Working life:
-
25 Years
-
Protection level:
-
IP68 Waterprooof
-
Main products:
-
Solar Cable, Solar Connector, DC Fuse
-
Insulation resistance:
-
<0.5mΩ
Quick Details
-
Type:
-
MCX
-
Application:
-
Power
-
Gender:
-
Male and Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Slocable
-
Model Number:
-
BC40N Solar branch connector
-
Product name:
-
PV Branch Connector
-
Rated current:
-
Max. 50A
-
Rated voltage:
-
1000/ 1500 V DC
-
Certificate:
-
TUV, CE, ROHS, ISO, IEC, BV
-
Material:
-
PPO, Copper Tinned
-
Warranty:
-
5 Years
-
Working life:
-
25 Years
-
Protection level:
-
IP68 Waterprooof
-
Main products:
-
Solar Cable, Solar Connector, DC Fuse
-
Insulation resistance:
-
<0.5mΩ
Products Description
Description:
· Simple on-site processing
· Simple on-site processing
· Mating safety provided by keyed housings
· Mutiple plugging and unplugging cycles
· Accomodates PV cable with deferent insulation diamaters
· High Voltage and High Current carrying capacity
· TUV and CE approved
· Competitive price
· IP68 waterproof protection
|
Degree of protection
|
IP2X/IP68
|
|
Test voltage
|
8kv(5Hz, 1min)
|
|
Safety class
|
Ⅱ
|
|
Connector contact resistance
|
<1mΩ
|
|
Insertion force/
withdrawal force
|
≤50N/≥50N
|
|
Overvoltage category pollution degree
|
CATII/2
|
