Quick Details
-
Weight (T):
-
63 T
-
Motor Power (kw):
-
6.5 kw
-
Marketing Type:
-
Hot Product
-
Name:
-
Cold Press Machine making segments
-
Application:
-
Makind diamond saw blade segments
-
Usage:
-
cutting stone segments
-
Packing:
-
Wooden Case
-
Advantage:
-
High Working Efficiency
-
Segment shape:
-
Kinds of Shape
-
Material:
-
Metal Powder
-
Working Method:
-
Hydraulic Pressed
-
Function:
-
Saw blade power pressed
-
Quality:
-
High Level
Quick Details
-
Machine Type:
-
Double Column Hydraulic Press
-
Return Force (kN):
-
63 kN
-
Place of Origin:
-
China
-
Weight (T):
-
63 T
-
Motor Power (kw):
-
6.5 kw
-
Marketing Type:
-
Hot Product
-
Name:
-
Cold Press Machine making segments
-
Application:
-
Makind diamond saw blade segments
-
Usage:
-
cutting stone segments
-
Packing:
-
Wooden Case
-
Advantage:
-
High Working Efficiency
-
Segment shape:
-
Kinds of Shape
-
Material:
-
Metal Powder
-
Working Method:
-
Hydraulic Pressed
-
Function:
-
Saw blade power pressed
-
Quality:
-
High Level

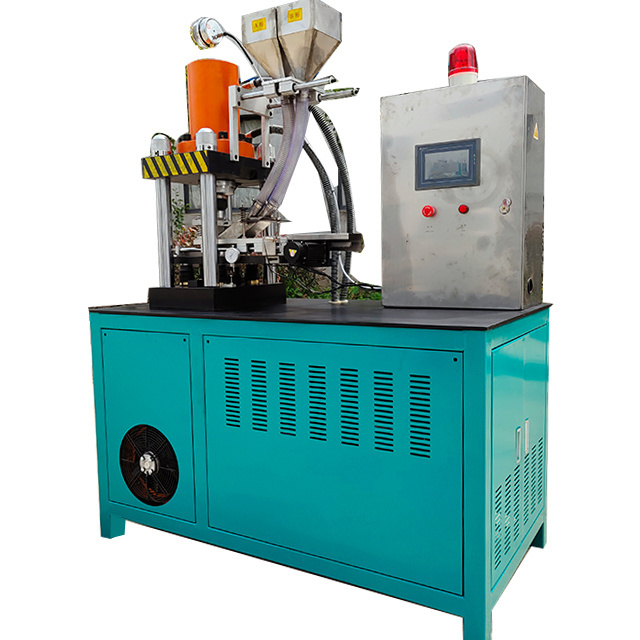

Automatic abrasive diamond powder cold press machine for diamond segments
Main features of Automation cold press machine:
-
It is mainly used to make segment base from diamond metallurgy powder by cold press.
-
It can be used to make segments for all sorts of saw blades by putting mixtures of powder with different proportion of diamond.
-
The powder no need granulated, which saves the production cost and is convenient for customers.
-
It can automatically measure the thickness and show the height of segments, which can release the operator.
-
It can correct the error of weight which is caused by the error of powder density.
-
It is acommensurable equipment with high ourput Cold press sandwich segments(segments for diameter 350 saw blade) 6000pcs/8h,segments 7 layers(segments for diameter 1600 saw blade)3000pcs/8h}, which can save a lot of labour force.
-
The electrical system is designed according to the national standard with high reliability and convenient maintenance.
-
There’re buttons on the screen, which makes it easier to operate and set the program.
-
It can be used to store 50 pieces of technics, which is convenient for operator
Specification
|
Power |
7.5kw | Rated Voltage | 380V |
|
Rated Current
|
15A | Working Pressure | 63T |
|
Finished Error
|
±0.1g |
Head Travel | 50-75MM |
|
Work Efficiency
|
6 times/min(3 layers) | Product Thickness | 0.5-20MM |
|
Pressing Layers
|
1-9 Layers | Loading Depth | 1-40MM |
|
Equipment Size
|
L1450*W850*H1750MM | Net Weight | 1.3T |
