Quick Details
-
Brand Name:
-
lanjizao
-
Model Number:
-
LJZ-MG-BXG-BL20L
-
Voltage:
-
110-240V, 110-240V
-
Power:
-
2800W, 2800w
-
Weight:
-
11 KG
-
Dimension(L*W*H):
-
29.5*29.5*125cm
-
Usage:
-
Distilled distilled water hydrosol of Brandy Vodka whisky
-
After Warranty Service:
-
Video technical support, Online support
-
Heating method:
-
Electric heating
-
Capacity:
-
20L(15L-30L-40L)
-
Cooling Method:
-
Water cooling
-
packing size:
-
35*35*63cm
Quick Details
-
Marketing Type:
-
New Product 2022
-
Core Components:
-
Hot plate
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
lanjizao
-
Model Number:
-
LJZ-MG-BXG-BL20L
-
Voltage:
-
110-240V, 110-240V
-
Power:
-
2800W, 2800w
-
Weight:
-
11 KG
-
Dimension(L*W*H):
-
29.5*29.5*125cm
-
Usage:
-
Distilled distilled water hydrosol of Brandy Vodka whisky
-
After Warranty Service:
-
Video technical support, Online support
-
Heating method:
-
Electric heating
-
Capacity:
-
20L(15L-30L-40L)
-
Cooling Method:
-
Water cooling
-
packing size:
-
35*35*63cm
Product overview

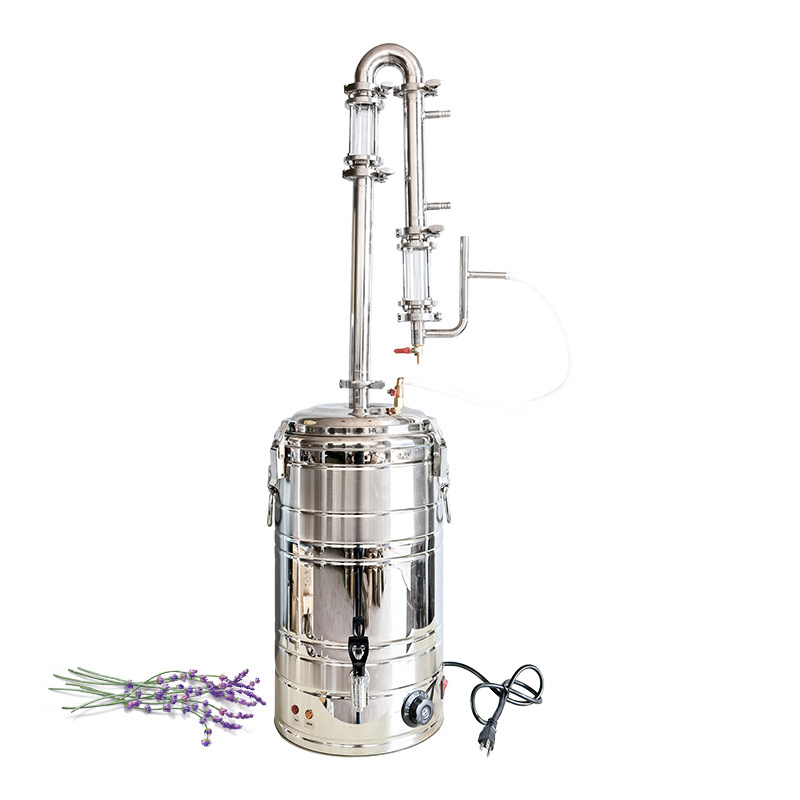

1. This is an integrated essential oil dehydrant extractor, which uses electric heating, has a wide range of application, easy to use and simple operation. For different raw materials, cyclic mode and non-cyclic mode can be selected.
2, This is a customized product, can be customized 110V American plug, also can be customized 220V European plug, welcome to inquire and negotiate.
Essential oil hydrosol separator, built-in glass lens, essential oil hydrosol will automatically stratify, low density essential oil will float on it. Different extraction materials can choose cyclic mode and non-cyclic mode
304 stainless steel hollow reflux column design: 304 stainless steel hollow reflux column, the temperature of essential oil hydrosol gradually decreases during the rise of steam, high boiling point substances will flow back into the pot, effectively improve the quality of hydrosol.
The 304 stainless steel shunt standpipe condenser is generally used in commercial large equipment. The independent 304 stainless steel tube is used as the condensing tube to disperse cooling and lower dew temperature. The condensers are welded and durable.
Elbow return valve, the valve is closed laterally when not circulating. The circulation mode is to use silica gel tube to connect the dedew outlet and elbow valve, when the silica gel tube has dedew, the elbow valve switch into the circulation mode.
|
model
|
15L
|
20L
|
30L
|
40L
|
|
The bucket of high
|
32cm
|
40cm
|
32cm
|
43cm
|
|
Inside the barrel diameter
|
25CM
|
25CM
|
35CM
|
35CM
|
|
Equipment had high
|
117CM
|
125CM
|
127CM
|
138CM
|
|
voltage
|
110V60HZ/220V50HZ
|
110V60HZ/220V50HZ
|
110V60HZ/220V50HZ
|
110V60HZ/220V50HZ
|
|
power
|
2800w
|
2800w
|
2800w
|
2800w
|
|
The dry
|
There are
|
There are
|
There are
|
There are
|
|
Drainage tap
|
There are
|
There are
|
There are
|
There are
|
|
Pipe interface diameter
|
12mm
|
12mm
|
12mm
|
12mm
|
|
Steam interface interface diameter
|
38mm
|
38mm
|
38mm
|
38mm
|
|
Condensing tube material
|
304 stainless steel
|
304 stainless steel
|
304 stainless steel
|
304 stainless steel
|
|
Packing size/weight
|
35*35*58cm/11KG
|
35*35*63cm/13KG
|
45*45*65cm/15kg
|
45*45*78cm/17kg
|
Control circulation return elbow valve
Voltage and power plugs can be customized
Work switch
The temperature control knob can adjust the temperature from 30 to 110 degrees
Heating and insulation indicator. The red light is heating, and the yellow light is heat preservation
Drain valve, can drain the liquid distillers lees, easy to pour
Anti-slip buckle, not easy to slip, can also control the top of the hook bend, to adjust the tightness of the buckle
Equipped with steam mesh, and has three height selection, with gauze bag use, to meet the distillation of raw materials do not
understand.
understand.
stainless steel liner and heating plate, clean, sanitary, durable, heating plate with dry burn prevention function
