Quick Details
-
Production Capacity:
-
40-250bag/min
-
Weight (KG):
-
500
-
Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOULYAM
-
Dimension(L*W*H):
-
4100x1000x1500mm
-
Product name:
-
Automatic Pillow Packing Machine
-
Bag type:
-
3 Sides Seal
-
Main Function:
-
Cutting ,Sealing,Wrapping
-
Packing speed:
-
40-250bags/min
-
Product Length:
-
50-200mm
-
Product Width:
-
20-100mm
-
Product Height:
-
1-50mm
-
Material:
-
Stainless Steel 304
-
Weight:
-
500kg
-
Film width:
-
Max.260mm
-
Marketing Type:
-
New Product 2021
Quick Details
-
Function:
-
FILLING, Wrapping, Capping, Sealing
-
Packaging Type:
-
Bags, Film, Pouch
-
Packaging Material:
-
Plastic, Paper
-
Production Capacity:
-
40-250bag/min
-
Weight (KG):
-
500
-
Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOULYAM
-
Dimension(L*W*H):
-
4100x1000x1500mm
-
Product name:
-
Automatic Pillow Packing Machine
-
Bag type:
-
3 Sides Seal
-
Main Function:
-
Cutting ,Sealing,Wrapping
-
Packing speed:
-
40-250bags/min
-
Product Length:
-
50-200mm
-
Product Width:
-
20-100mm
-
Product Height:
-
1-50mm
-
Material:
-
Stainless Steel 304
-
Weight:
-
500kg
-
Film width:
-
Max.260mm
-
Marketing Type:
-
New Product 2021
Products Description

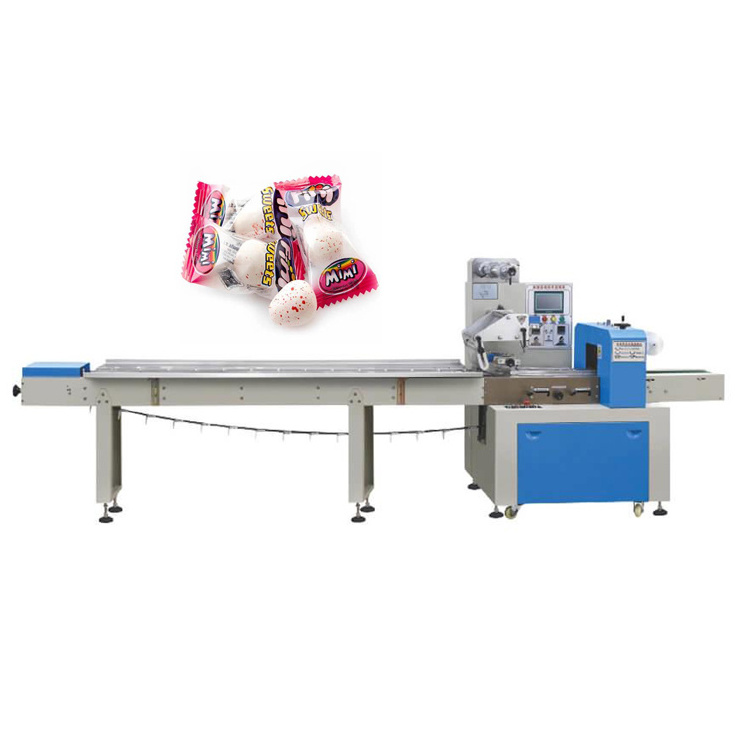

KD-260 Automatic Horizontal Biscuits / Bread / Snake Food Pillow Packing Machine
|
Model
|
KD-260, KD-350, KD-450, KD-590
|
|
Product Length
|
50-200mm, 60-300mm, 80-400mm, 100-400mm
|
|
Product Width
|
20-100mm, 30-150mm, 50-200mm, 100-250mm
|
|
Product Height
|
1-50mm, 1-50mm(Option:2-80mm), 20-80mm, 20-120mm
|
|
Intensity of Sealing
|
>15N/mm²
|
|
Packing Speed
|
40-250 packages/minute
|
|
Max Film Width
|
240mm, 330mm, 430mm, 580mm
|
|
Thickness of Film
|
0.03-0.06mm
|
|
Power
|
220V 50HZ 2.4KW-2.7KW
|
|
Overall Dimension
|
4100x1000x1500mm, 4100x1050x1500mm, 4100x950x1500mm, 5100x1050x1700mm
|
|
Weight
|
550kgs, 600kgs, 680kgs, 800kgs
|
Details About Up Side Feeding Film Automatic Horizontal Wrapping Machine
1. Compact structure. stable function and simple operation.
2. The first third-generation double frequency control the bag could be set and cut, unnecessary adjust air without changing film color code tracking one pace reaches the designated position, il’s saving lime and film.
3. It adopts imported electric appliances, touch man-machine interface, convenient parameter setting.
4. Self-checking function, trouble can be read easily.
5.High sensor photoelectric color chart tracking, make the cutting position more correctly.
6. Dependant temperature PID controlling suitable for various materials of packaging membrane.
7.Position stop function, no adhesive, and no waste of membrane.
8.Clean rotation system, more reliable operation, and more convenient maintenance.
9.All the controlling operates by the software, convenience for function
adjustment and technical upgrading.
