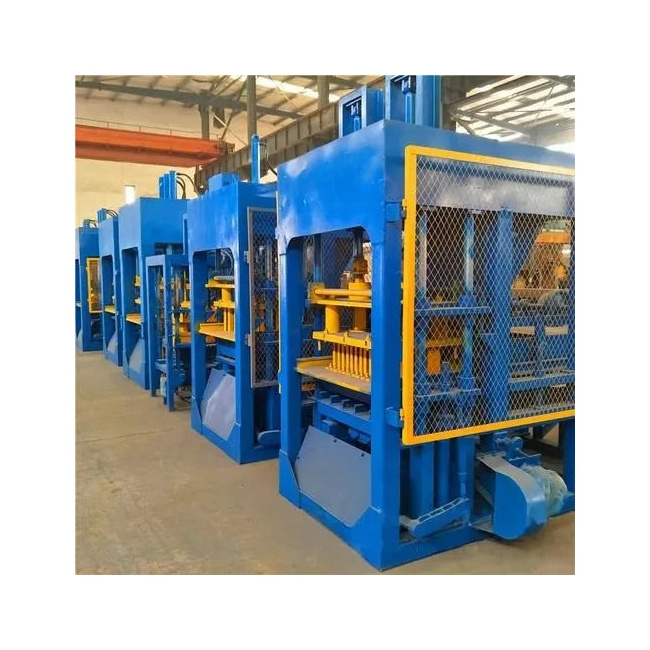

Full automatic block paver brick block making machine adopt to hydraulic pressure moulding system , so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
- Product Details
- {{item.text}}
Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
zhengyi machine
-
Voltage:
-
220V 380V
-
Dimension(L*W*H):
-
5550*2220*2800
-
Weight (KG):
-
8500 kg
-
Application:
-
Manufacturing Plant
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
Sand
-
Production Capacity (Pieces/8 hours):
-
10080pcs/8hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
zhengyi machine
-
Voltage:
-
220V 380V
-
Dimension(L*W*H):
-
5550*2220*2800
-
Weight (KG):
-
8500 kg
-
Application:
-
Manufacturing Plant
Products Description
Product Paramenters
|
Machine model
|
Dimensions
(mm）
|
Molding cycle
(s)
|
Pallet size
(mm)
|
power
(kw)
|
Weight
(t)
|
|
|
QT4-15
|
3200*2100*2350
|
3800-4000
|
15-25
|
900*500*35
|
17.9
|
3.2
|
|
QT6-15
|
4300*2110*2800
|
4500-5100
|
15-23
|
1200*570*30
|
33.35
|
7.5
|
|
QT8-15
|
5550*2220*2800
|
4500-5100
|
15-23
|
1050*880*35
|
38.35
|
8.5
|
|
QT10-15
|
7400*2300*3000
|
3800-4500
|
15-23
|
1100*900*30
|
49.85
|
12
|
|
Name
|
Size(mm)
|
Pcs/Mould
|
Pcs/hours
|
|
|
Hollow brick
|
390*190*190
|
15
|
10
|
2400
|
|
Standard brick
|
240*53*115
|
54
|
12960
|
|
|
Perforated brick
|
240*115*90
|
20
|
24
|
4320
|
|
Color brick
|
200*100*60
|
20
|
36
|
6480
|
Product Overview
QT4-15
QT8-15
QT10-15
• High-efficiency double-proportional hydraulic system, and vane pump (more efficient and energy- saving)
https://hnzyjc.en.alibaba.com/contactinfo.html
• Intelligent PLC touch screen and frequency conversion technology (high degree of automation, easier operation)
• Double-boom feeding mechanism, double-motor cloth (faster and more uniform cloth)
• Four-axis vibration, frequency conversion control broadband motor (product forming faster, higher density)
• Special process of carburizing heat treatment (more wear-resistant mold, long life, high strength)
production material
It uses crushed stone powder, sand, stones, cement, and can add a large number of industrial wastes such as fly ash, slag, steel slag,coal gangue, ceramsite, and perlite.
One machine with multiple functions, can produce various specifications of blocks by changing the mold:
1. Perforated bricks and hollow blocks, etc.
2. ceramsite thermal insulation blocks.
3.composite thermal insulation concrete blocks.
The above products have good thermal insulation performance and can meet the requirements of the country's new energy-saving policies.Technical characteristics
production material
It uses crushed stone powder, sand, stones, cement, and can add a large number of industrial wastes such as fly ash, slag, steel slag,coal gangue, ceramsite, and perlite.
The above products have good thermal insulation performance and can meet the requirements of the country's new energy-saving policies.Technical characteristics
Product Configuration
Block Machine Production Line
Full automatic block paver brick block making machine adopt to hydraulic pressure moulding system , so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
This is the most popular proportion in making block making machine:
1. Standard concrete block: Cement 9-12%, sand 40%, stone 45%, water 3%
2. Light concrete block: Cement 9-12%, slag 80-90%, water 3%
3. Cement 9-12%, sand 10-20%, stone 30-40%, slag 25-50%, water 3%
4. Cement 8%-10%, sand 30%-40%, stone 50%-60%
5. Cement 8%, sand 60%, Fly ash 30%, gypsum 2%. https://hnzyjc.en.alibaba.com/contactinfo.html
2. Light concrete block: Cement 9-12%, slag 80-90%, water 3%
3. Cement 9-12%, sand 10-20%, stone 30-40%, slag 25-50%, water 3%
4. Cement 8%-10%, sand 30%-40%, stone 50%-60%
5. Cement 8%, sand 60%, Fly ash 30%, gypsum 2%. https://hnzyjc.en.alibaba.com/contactinfo.html
