Quick Details
-
Brand Name:
-
TZBOT
-
Rated power:
-
200W
-
Rated voltage:
-
24V
-
Rated speed:
-
3000rpm
-
Rated current:
-
12A
-
Rated torque:
-
0.64N.m
-
Reduce ratio:
-
15/21/30
Quick Details
-
Warranty:
-
1 Year
-
Weight (KG):
-
60
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TZBOT
-
Rated power:
-
200W
-
Rated voltage:
-
24V
-
Rated speed:
-
3000rpm
-
Rated current:
-
12A
-
Rated torque:
-
0.64N.m
-
Reduce ratio:
-
15/21/30
Product Overview

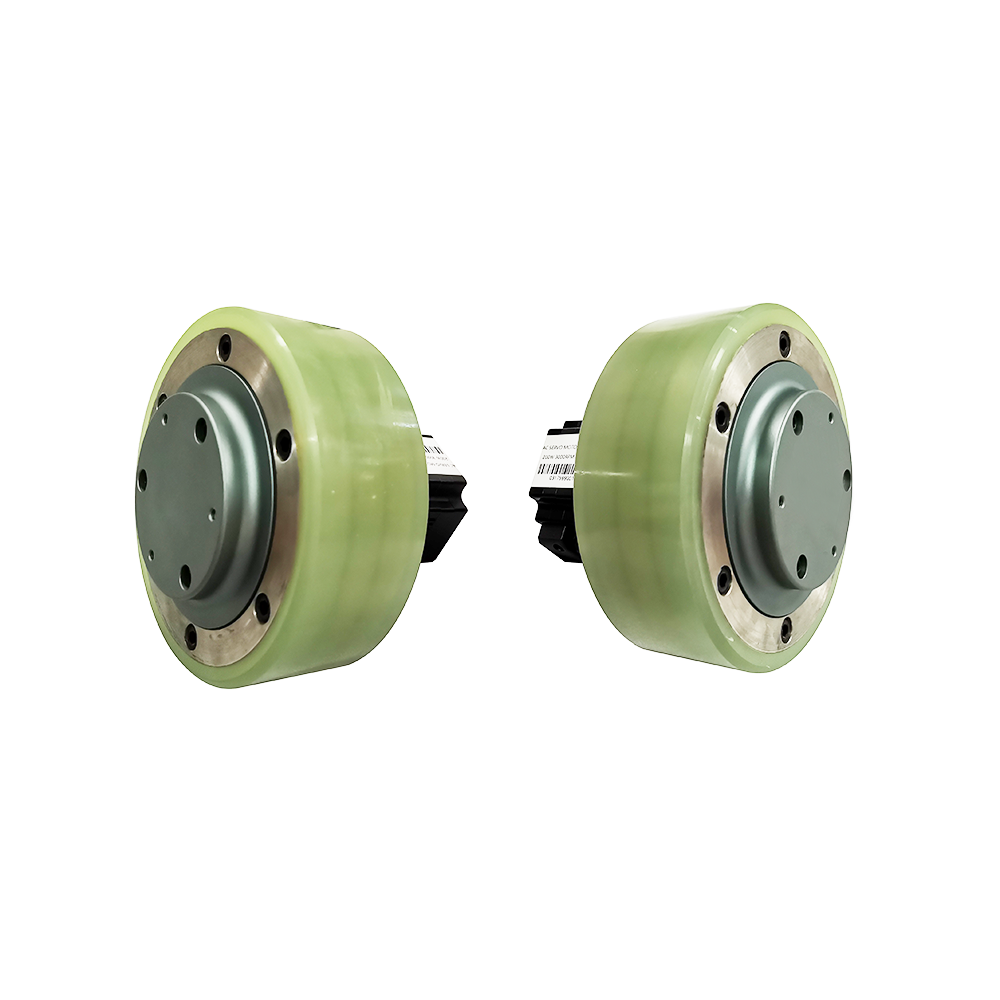

TZDL-200-PT Series Single Drive wheel
The planetary redution wheel adopts a planetary structure and integrated design, and the servo motor is designed inside the planetary wheel. It has the characteristics of compact structure, high transmission efficiency, light noise, and precise control.
Model Description
PRODUCT SPECIFICATIONS
|
|
TZDL-200-PT
|
TZDL-200-PT-S
|
TZDL-200-PT-BK
|
TZDL-200-PT-S-BK
|
|||
|
Type
|
Standard Model
|
With Suspension
|
With Brake
|
With Suspension & Brake
|
|||
|
Rated power
|
200W
|
|
|
|
|||
|
Rated voltage
|
24V
|
|
|
|
|||
|
Rated speed
|
3000rpm
|
|
|
|
|||
|
Rated current
|
12A
|
|
|
|
|||
|
Rated torque
|
0.64N.m
|
|
|
|
|||
|
Reduce ratio
|
15/21/30
|
|
|
|
|||
|
Total length
|
134.5mm
|
134.5mm
|
167mm
|
172.7mm
|
|||
|
Total Height
|
160mm
|
207~231mm
(suggestion install 219)
|
160mm
|
207~231
(suggestion install 219)
|
|||
Standard Model
With Suspension & Brake
Advantages
