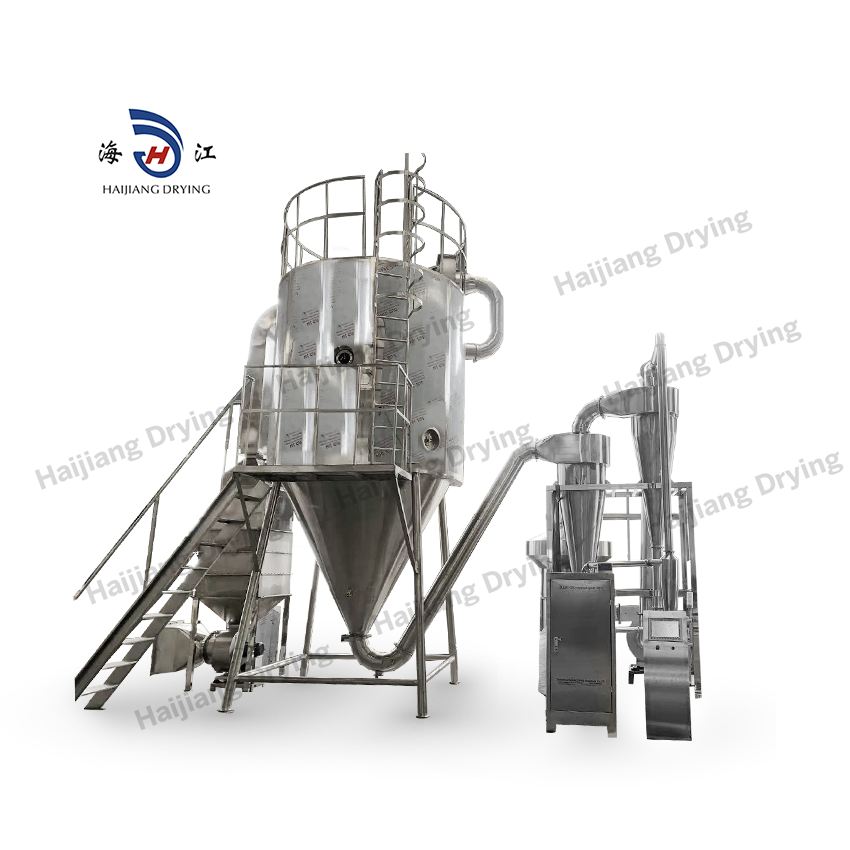

CE Approved Multifunction Powder Whey Protein Ginger Spray Dryer Making Machine Centrifugal Milk Powder Spraying Drying Machine
CE Approved Multifunction Powder Whey Protein Ginger Spray Dryer Making Machine Centrifugal Milk Powder Spraying Drying Machine
CE Approved Multifunction Powder Whey Protein Ginger Spray Dryer Making Machine Centrifugal Milk Powder Spraying Drying Machine
CE Approved Multifunction Powder Whey Protein Ginger Spray Dryer Making Machine Centrifugal Milk Powder Spraying Drying Machine
CE Approved Multifunction Powder Whey Protein Ginger Spray Dryer Making Machine Centrifugal Milk Powder Spraying Drying Machine
CE Approved Multifunction Powder Whey Protein Ginger Spray Dryer Making Machine Centrifugal Milk Powder Spraying Drying Machine
CE Approved Multifunction Powder Whey Protein Ginger Spray Dryer Making Machine Centrifugal Milk Powder Spraying Drying Machine
CE Approved Multifunction Powder Whey Protein Ginger Spray Dryer Making Machine Centrifugal Milk Powder Spraying Drying Machine

CE Approved Multifunction Powder Whey Protein Ginger Spray Dryer Making Machine Centrifugal Milk Powder Spraying Drying Machine

FOB Reference Price: Get Latest Price
≥1 Pieces
US $12000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
Customized
Power:
Customized
Dimension(L*W*H):
Customized
Weight (KG):
0
Marketing Type:
Hot Product 2022
Core Components:
Standard
Evaporation Capacity(kg/h):
Customized
Name:
Industrial Spray Drying Machine
Raw material:
SS304/SS316L
Heating source:
Electricity Steam Oil Gas
Temperature range:
Adjustable
Function:
making powder from liquid
Feature:
Continuous Drying Machine
Spray system:
Centrifugal Nozzle
Controller:
PLC+Touch Screen
Installation:
Haijiang Service

Quick Details

Type:
Spray Drying Equipment
Place of Origin:
Jiangsu, China
Brand Name:
HAIJIANG
Voltage:
Customized
Power:
Customized
Dimension(L*W*H):
Customized
Weight (KG):
0
Marketing Type:
Hot Product 2022
Core Components:
Standard
Evaporation Capacity(kg/h):
Customized
Name:
Industrial Spray Drying Machine
Raw material:
SS304/SS316L
Heating source:
Electricity Steam Oil Gas
Temperature range:
Adjustable
Function:
making powder from liquid
Feature:
Continuous Drying Machine
Spray system:
Centrifugal Nozzle
Controller:
PLC+Touch Screen
Installation:
Haijiang Service

Technical Parameter

Model Centrifugal Spray Dryer MODEL LPG-
5 25 50 100 150 200-5000
Inlet air temperature ≤ 350°C
Outlet air temperature 80-90°C
Evaporate capacity (kg/h) 5 25 50 100 150 200-5000
Atomizer type compressed air drive mechanical drive
Rotary speed 25000 22000 21500 18000 18000 15000
Diameter of atomizer disc (mm) 50 120 120 120 150 180-500
Heating source Electricity Electricity/LPG/ Electricity/LPG/ Electricity/LPG/ Electricity/LPG/ Electricity/LPG/
Natural gas/Oil/Steam Natural gas/Oil/Steam Natural gas/Oil/Steam Natural gas/Oil/Steam Natural gas/Oil/Steam
Electric-heating power (kw) 9 - - - - -
Dry powder yield (%) ≥ 95 ≥ 95 ≥ 95 ≥ 95 ≥ 95 ≥ 95

Company Introduction

Certifications

Exhibitions

Packing & Delivery

FAQ
Q: Delivery time

A: Around 20-60 days, delivery time varies by machine type.

Q: Payment of terms

A: Acceptable payment of terms: T/T, L/C, Cash after signing the contract, first deposit 30% of total as prepayment, and rest 70% after FAT but before shipment.

Q: Quality assurance

A:We guarantee that all machines are brand new and designed and manufactured with the user's approval; we guarantee that each machine shipped has a 15-month warranty, during which we will provide technicians for on-site debugging, or spare parts for machine failure free of charge. We guarantee to reply to the user's confusion within 24 hours after receiving the notice.

Q:Packing of goods

A:The surface of the machine is wrapped with plastic film first, and the outside is wrapped with plywood, and finally packed in the container.

Q:What is the service when we order from you?

A:First of all, we invite you to visit our factory to discuss the technology for users, choose the model and type of machine, and make feasible suggestions for each material. Secondly, we appreciate your visit to our factory to do FAT before delivery, if you are not satisfied, please give us your opinion and we will modify the machine. Lastly, we will send at least 1 experienced and responsible technician abroad to guide the commissioning and train the operators. If on-site commissioning is not needed, we provide video guidance.

Q:What information do you need to select a model?

A: We need to know the following information: What is the name of your material? What is the initial moisture percentage before drying? What is the percentage of residual moisture after drying? What is the heating temperature at which your material can be heated during the drying process? What is the heat source, steam, electricity, natural gas or other? The last important point is, what is the capacity before and after drying?
