Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JWOUEY
-
Wavelength:
-
1080±3nm
-
Focal Spot Diameter:
-
20μm
-
Dimensions:
-
550*280*700mm
-
Weight (KG):
-
50 KG
-
Product name:
-
Air-cooled Handheld Laser Welding Machine
-
Application:
-
Metal Welding Products
-
Cooling System:
-
Air Cooling System
-
Welding thickness:
-
0.3mm-8mm
-
Keywords:
-
High-quality Laser Welding Machine
-
Laser source:
-
Reci
-
Operating system:
-
Reci
Quick Details
-
Max. Output Power:
-
3kw
-
Use:
-
Welding
-
Laser Source Brand:
-
RECI
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JWOUEY
-
Wavelength:
-
1080±3nm
-
Focal Spot Diameter:
-
20μm
-
Dimensions:
-
550*280*700mm
-
Weight (KG):
-
50 KG
-
Product name:
-
Air-cooled Handheld Laser Welding Machine
-
Application:
-
Metal Welding Products
-
Cooling System:
-
Air Cooling System
-
Welding thickness:
-
0.3mm-8mm
-
Keywords:
-
High-quality Laser Welding Machine
-
Laser source:
-
Reci
-
Operating system:
-
Reci

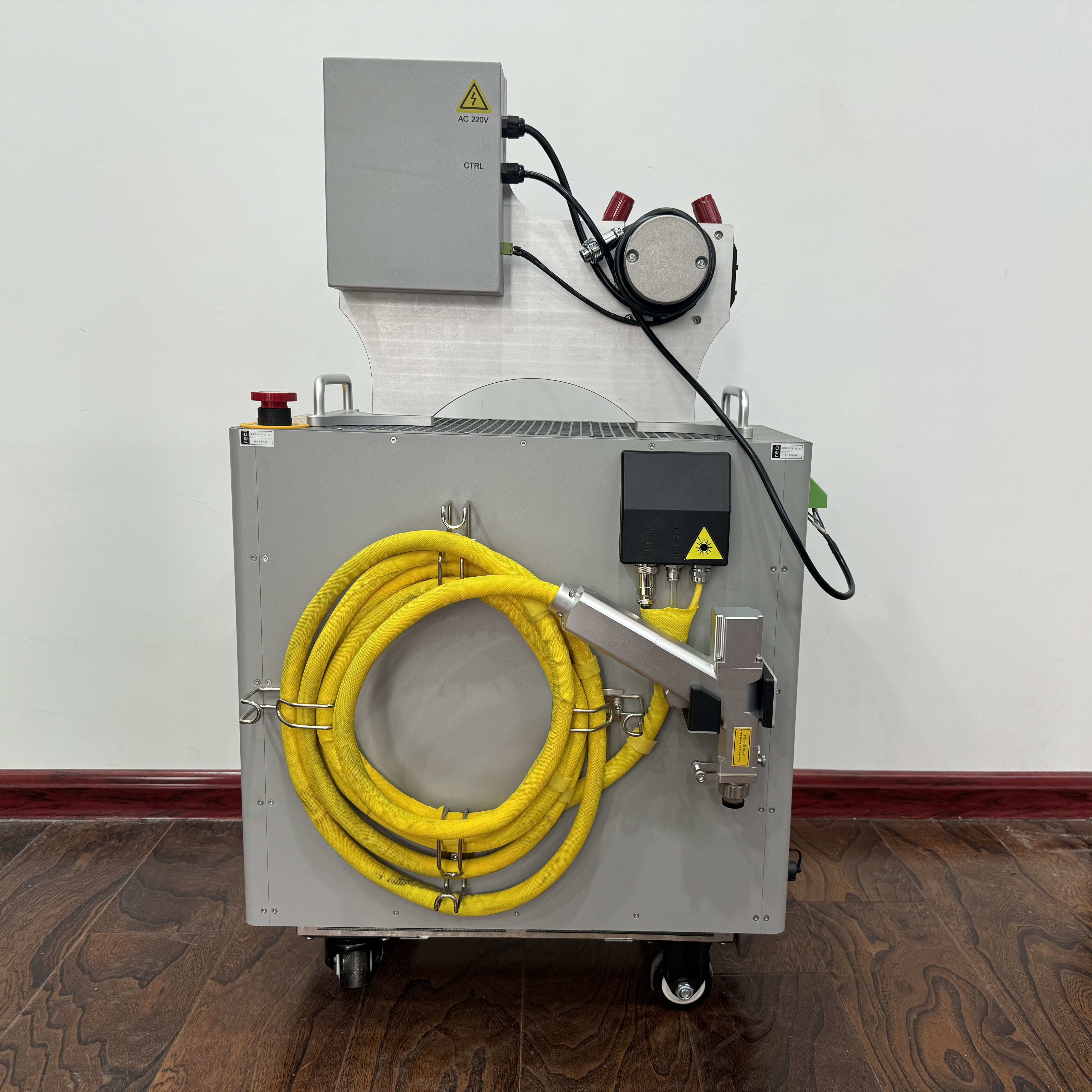

Air-cooled handheld welding machines
Our air-cooled continuous fiber lasers are independently developed and produced by Reci. Compared with traditional gas and solid lasers, the products have the characteristics of electro-optical conversion efficiency and superior beam quality. At the same time, due to the coilability of optical fibers, the structure of fiber lasers is more compact. This series of products combines the advantages of high photoelectric conversion efficiency, high output power, excellent beam quality, compact structure, maintenance-free, and low cost. It can be widely used in industrial processing such as metal welding, military and national defense, scientific research and other scenarios.
TECHNICAL PARAMETERS
|
Model
|
A80
|
A120
|
A150
|
A200
|
|||
|
Rated power
(At current 19A) |
700
|
1000
|
1300
|
1800
|
|||
|
2
|
800
|
1200
|
1500
|
2000
|
|||
|
Supply Voltage(V)
|
220±10% V AC 50/60Hz
|
125Ton
|
|
|
|||
|
Power Consumption
|
＜3000W
|
<3600W
|
<4800W
|
<7000W
|
|||
|
Output power adjustment range(%)
|
10-100
|
96kN
|
|
|
|||
|
Central wavelength
|
1080±3
|
96kN
|
|
|
|||
|
Max. Modulation Frequency
|
5KHz
|
|
|
|
|||
|
Delivery Fiber Length
|
Standard 5m
|
|
|
|
|||
|
Red Laser power
|
≥0.2mW
|
|
|
|
|||
|
Output Fiber Diameter
|
20μm
|
|
|
|
|||
|
Placement
|
Flat, upright, no vibration and impact
|
60kN
|
|
|
|||
|
Environment Temperature
|
-5~40℃
|
6750ml
|
|
|
|||
|
Relative Humidity
|
＜90%RH
|
500N.m
|
|
|
|||
1. Even though the protective glasses are worn, staring into the optical output is forbidden absolutely while the electrical switch of the laser is on.
2. Dust on the window mirror will cause the lens to burn when the light is emitted. Continued use will cause internal damage to the Laser welder.
3. (1) The input voltage of the fiber laser is AC current (220VAC), which may cause risk of electric shock.
(2)All the relevant cables and connection wires have potential hazards.
PRODUCT CONFIGURATION
Wire Feeder
Back panel
Air cooled with centrifugal fan
Wire feed tube
FLOOR PLAN
APPLICATION
Main application industries:
Industrial processing, such as metal cutting, welding, cleaning and rust removal, etc.
Military defense, scientific research, etc.
COMPANY INFORMATION
FAQ
1. How many commonly used protective gases are there?
There are two types of nitrogen or argon:
--It is recommended to use nitrogen for stainless steel, carbon steel, galvanized sheets and cold-rolled sheets for better welding effect;
--It is recommended to use argon gas for aluminum, copper and titanium alloys for better welding effect. For titanium alloys, argon gas can effectively reduce the cracks caused by the embrittlement of the weld after welding.
2. When welding aluminum plates, do I need to re-find the laser focus?
Yes, because aluminum is a highly reflective material, the focus is different from stainless steel, carbon steel, etc.
3. Do I need to clean the lens in time to protect it from stains?
Yes, it needs to be cleaned and replaced in time, otherwise it will cause damage to the welding gun and even the welding machine.
