Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sinorock
-
Model Number:
-
KTB15-Q500
-
Application:
-
Industry
-
Product name:
-
Thread Bar System
-
Material:
-
PSB500, PSB830, PSB930
-
Keyword:
-
thread bar
-
Color:
-
silver, black, Clean or zinc galvanized
-
Size:
-
15mm-65mm
-
Usage:
-
soil nails, rock bolts, micro piles, ground anchors
-
Surface treatment:
-
As required
-
Iso:
-
9001
-
Quality:
-
High Quality Inspection
Quick Details
-
Grade:
-
PSB500, PSB830, PSB930
-
Length:
-
1-12m as required
-
Tolerance:
-
±0.1
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sinorock
-
Model Number:
-
KTB15-Q500
-
Application:
-
Industry
-
Product name:
-
Thread Bar System
-
Material:
-
PSB500, PSB830, PSB930
-
Keyword:
-
thread bar
-
Color:
-
silver, black, Clean or zinc galvanized
-
Size:
-
15mm-65mm
-
Usage:
-
soil nails, rock bolts, micro piles, ground anchors
-
Surface treatment:
-
As required
-
Iso:
-
9001
-
Quality:
-
High Quality Inspection

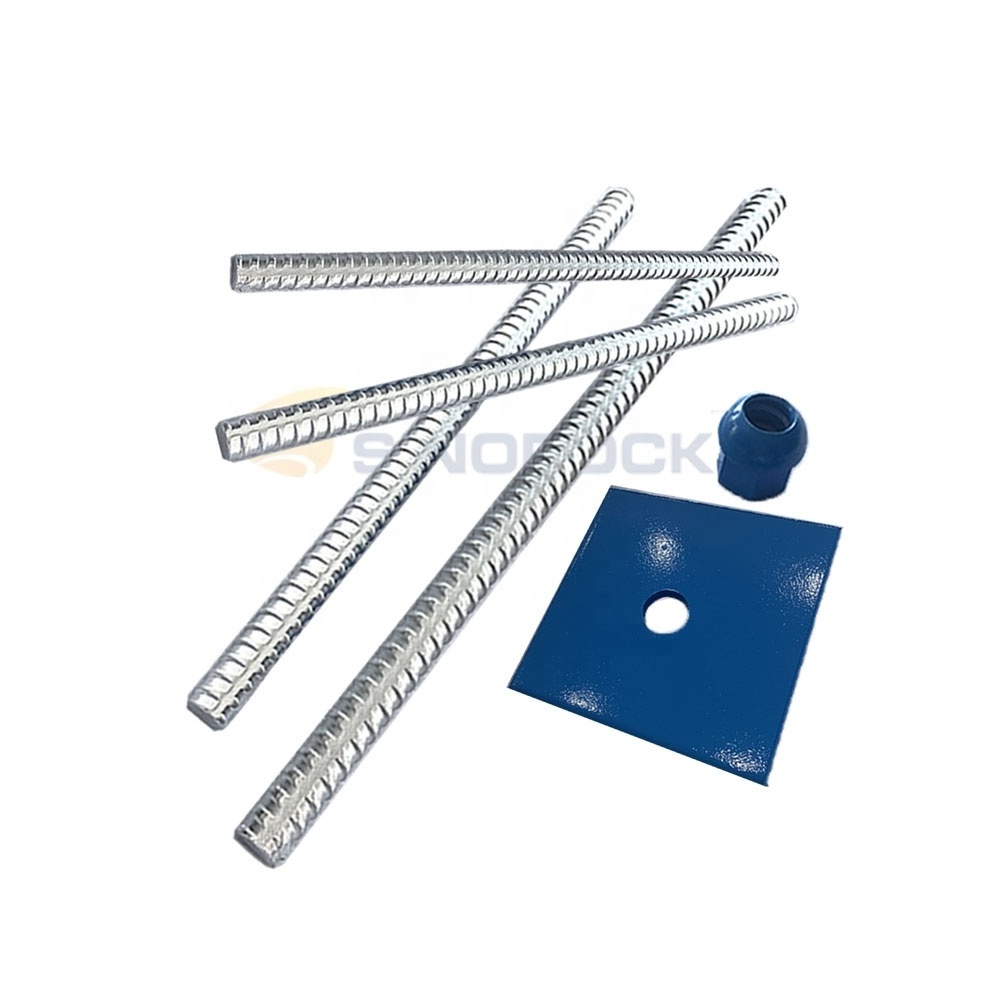

32mm Refined Threaded Steel Bars with High Strength for Slope Support of Roads
Products Details
Main diameter:
20 (left), 25 (right), 32 (right). Customized specifications are also available such as 28 (right), 34 (right).
Yield Strength (MPa)
:
PSB500, PSB830, PSB930, PSB1080, and PSB1200.
|
Hot-dip Galvanized Coating Requirements
|
|
|
|
|
||||
|
Product Specification
|
Local Coating Thickness(um)
|
Mean Coating Thickness(um)
|
Max.Coating Thickness(um)
|
|
||||
|
threaded rods
|
70~200
|
85
|
200
|
|
||||
|
Dimensions and Specifications
|
|
|
|
|
||||
|
Dia.（mm）
|
PSB500
|
PSB830
|
PSB930
|
PSB1080
|
||||
|
15
|
KTB15-Q500
|
KTB15-Q830
|
KTB15-Q930
|
KTB15-Q1080
|
||||
|
20
|
KTB20-Q500
|
KTB20-Q830
|
KTB20-Q930
|
KTB20-Q1080
|
||||
|
25
|
KTB25-Q500
|
KTB25-Q830
|
KTB25-Q930
|
KTB25-Q1080
|
||||
|
32
|
KTB32-Q500
|
KTB32-Q830
|
KTB32-Q930
|
KTB32-Q1080
|
||||
|
36
|
KTB36-Q500
|
KTB36-Q830
|
KTB36-Q930
|
KTB36-Q1080
|
||||
|
40
|
KTB40-Q500
|
KTB40-Q830
|
KTB40-Q930
|
KTB40-Q1080
|
||||
|
50
|
KTB50-Q500
|
KTB50-Q830
|
KTB50-Q930
|
KTB50-Q1080
|
||||
|
60
|
KTB60-Q500
|
KTB60-Q830
|
KTB60-Q930
|
KTB60-Q1080
|
||||
|
65
|
KTB65-Q500
|
KTB65-Q830
|
KTB65-Q930
|
KTB65-Q1080
|
||||
|
75
|
KTB75-Q500
|
KTB75-Q830
|
KTB75-Q930
|
KTB75-Q1080
|
||||
Refined Rolled Thread Bar System Description
1) Class I Anti-corrosion System
Class I anti-corrosion anchoring system is suitable for semi-permanent support and permanent support in corrosive environment. Anchorage section is protected by corrugated pipe, end cap, cement grout, and the free section is protected by smooth plastic pipe.
2) Class II Anti-corrosion System
Class II anti-corrosion anchoring system is used for temporary support in corrosive environment and semi-permanent support in non-corrosive environment. Anchorage section is protected by cement grout, and the free section is protected by smooth plastic pipe.
3) Non-anticorrosive System
Non-anticorrosive anchorage system is suitable for temporary support in non-corrosive environments, and cement grout will protect the anchoring section.
Production Flow Chart
Workshop Show
Customer Feedback
Application
Due to its high strength, flexible construction and wide application range, the Refined Rolled Thread Bar can be used as anti-corrosion cages, anti-corrosion beams, anti-corrosion nets,Soil nails, rock bolts, formwork tie rods, back pulls,micro piles, ground and other structures have been put into use, and are widely designed and evaluated for building construction, Dam body reinforcement, slope support of roads and railways, landslide control, tunnel support, bridge engineering, hanging basket tensioning of railways or highways,In various construction scenarios such as anti-floating foundation pits and wind power tower foundations, Threaded Bar it is usually used in conjunction with concrete and plays a huge role in engineering construction.
