Quick Details
-
Tube Length(ft):
-
2, 3, 4, 8
-
Color Temperature(CCT):
-
2700-6500K
-
Color Rendering Index(Ra):
-
82
-
Product Weight（kg）:
-
1.5
-
Input Voltage(V):
-
AC120-277V/AC347V/AC100-240V
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-25 - 60
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LONYUNG
-
Model Number:
-
T8DL
-
Item Type:
-
t8 Tube Lights
-
Name:
-
China manufactuer led tube
-
Power Factor:
-
>0.92
-
CRI:
-
>80
-
Beam Angle:
-
120°
-
Driver:
-
Isolated Internal Driver
-
Socket Type:
-
lead in wire/M-F connection/seamless connection
-
Optional PC cover:
-
Frosted or Clear cover
-
Standard Install Accessaries:
-
Power cord,connectors;M-F connection cord,mouting clips
-
CCT:
-
2700K /3000k / 4000K /5000K /6000K
Quick Details
-
Warranty(Years):
-
3
-
Lamp Luminous Efficiency(lm/w):
-
110
-
Lamp Body Material:
-
Aluminum
-
Tube Length(ft):
-
2, 3, 4, 8
-
Color Temperature(CCT):
-
2700-6500K
-
Color Rendering Index(Ra):
-
82
-
Product Weight（kg）:
-
1.5
-
Input Voltage(V):
-
AC120-277V/AC347V/AC100-240V
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-25 - 60
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LONYUNG
-
Model Number:
-
T8DL
-
Item Type:
-
t8 Tube Lights
-
Name:
-
China manufactuer led tube
-
Power Factor:
-
>0.92
-
CRI:
-
>80
-
Beam Angle:
-
120°
-
Driver:
-
Isolated Internal Driver
-
Socket Type:
-
lead in wire/M-F connection/seamless connection
-
Optional PC cover:
-
Frosted or Clear cover
-
Standard Install Accessaries:
-
Power cord,connectors;M-F connection cord,mouting clips
-
CCT:
-
2700K /3000k / 4000K /5000K /6000K

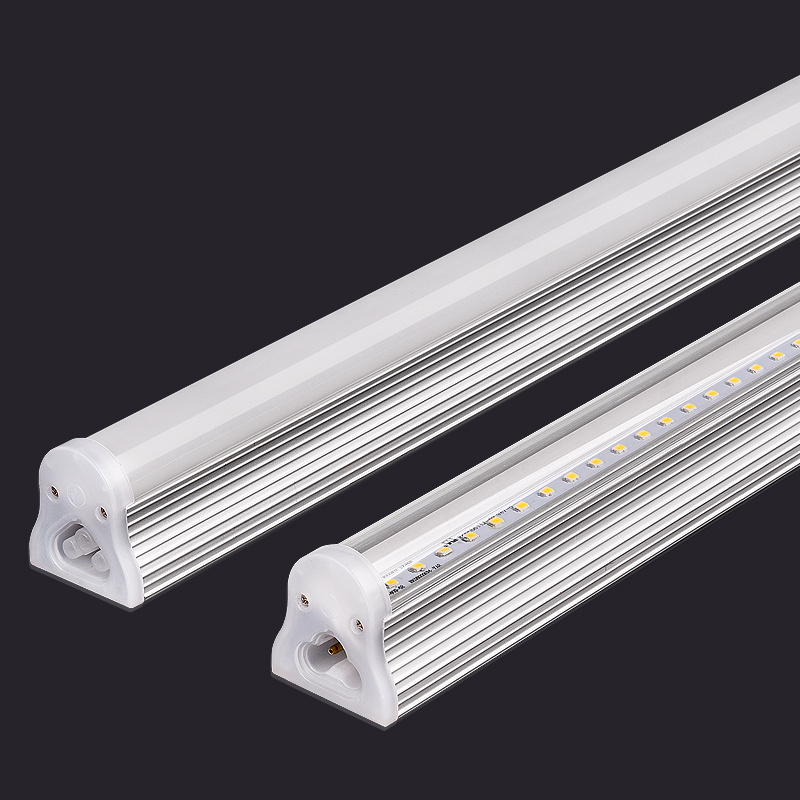

Surface mounted indoor supermarket aluminum 8 foot 8ft intergrated fixture 4 feet 4ft linkable linear led t8 shop tube lights
1, ETL DLC TUV SAA Approval;
3 , Thickened 0.9mm aluminum radiator ,excellent heat dissipation.
4 , Long Lifespan 50,000 hours, 5 years warranty.
6. Environmental friendly - No mercury or lead.
7. Up to 60% energy saving compared to fluorescent luminaires.
8. Maintenance free operation, last up to 20 times longer than conventional lamps
9. Direct replacement for traditional T8 / T12 fluorescent
| Model NO. | Power (W) | LED | Lumens(±10%) | Voltage (AC) | PF | CRI | Bean Angel | |
| Frosted | Clear | 100-277V | >0.9 | >80 | 120° | |||
| LY-T8DL600-9W | 9 | SMD2835 | 900 | 990 | ||||
| LY-T8DL900-13W | 13 | 1300 | 1430 | |||||
|
LY-T8DL1200-18W
|
18 | 1800 | 1980 | |||||
| LY-T8DL1200-22W | 22 | 2200 | 2420 | |||||
| LY-T8DL1500-25W | 25 | 2500 | 2750 | |||||
| LY-T8DL1800-28W | 28 | 2800 | 2800 | |||||
| LY-T8DL2400-44W | 44 | 4400 | 4840 | |||||
| CCT Range : 3000w(Warm white),4000k(Natural white),5000k(Day white),6000k(Cool white) | ||||||||
Product shows:
Quality Contral:
Applications:
- Hotels, Restaurants, Schools, Factories, Hospitals
- Houses, Offices, Exhibitions, Meeting room
- Workshops, Storages, Roads, Streets, etc
Installation:
STEP1.Place the clip kit and screws correctly. STEP2.Fix the LED tube to the ceiling or wall.
STEP3.Connect the power cord to the integrated tube. STEP3.Connect up by linkable connector,done.
Packing list:
| Model | Product Size | Carton Size | Qty/Carton | N.W./Carton | G.W./Carton |
| (mm) | (mm) | (Pcs) | (KG) | (KG) | |
| LY-T8DL600-9W | 582*40*42 | 685*245*205 | 20 |
7.3
|
9.3
|
| LY-T8DL900-13W | 888*40*42 | 995*245*205 | 20 |
10.1
|
12.9
|
|
LY-T8DL1200-18W
|
1192*40*42
|
1295*245*205
|
20 |
12.8
|
16.3
|
| LY-T8DL1200-22W | 1192*40*42 | 1295*245*205 | 20 |
12.8
|
16.3
|
| LY-T8DL1500-25W | 1493*40*42 | 1600*245*205 | 20 |
15.6
|
19.7
|
| LY-T8DL1800-28W | 1755*40*42 | 1860*245*205 | 20 |
18.8
|
23.5
|
| LY-T8DL2400-44W | 2368*40*42 | 2470*105*205 | 9 |
13.5
|
15.5
|
